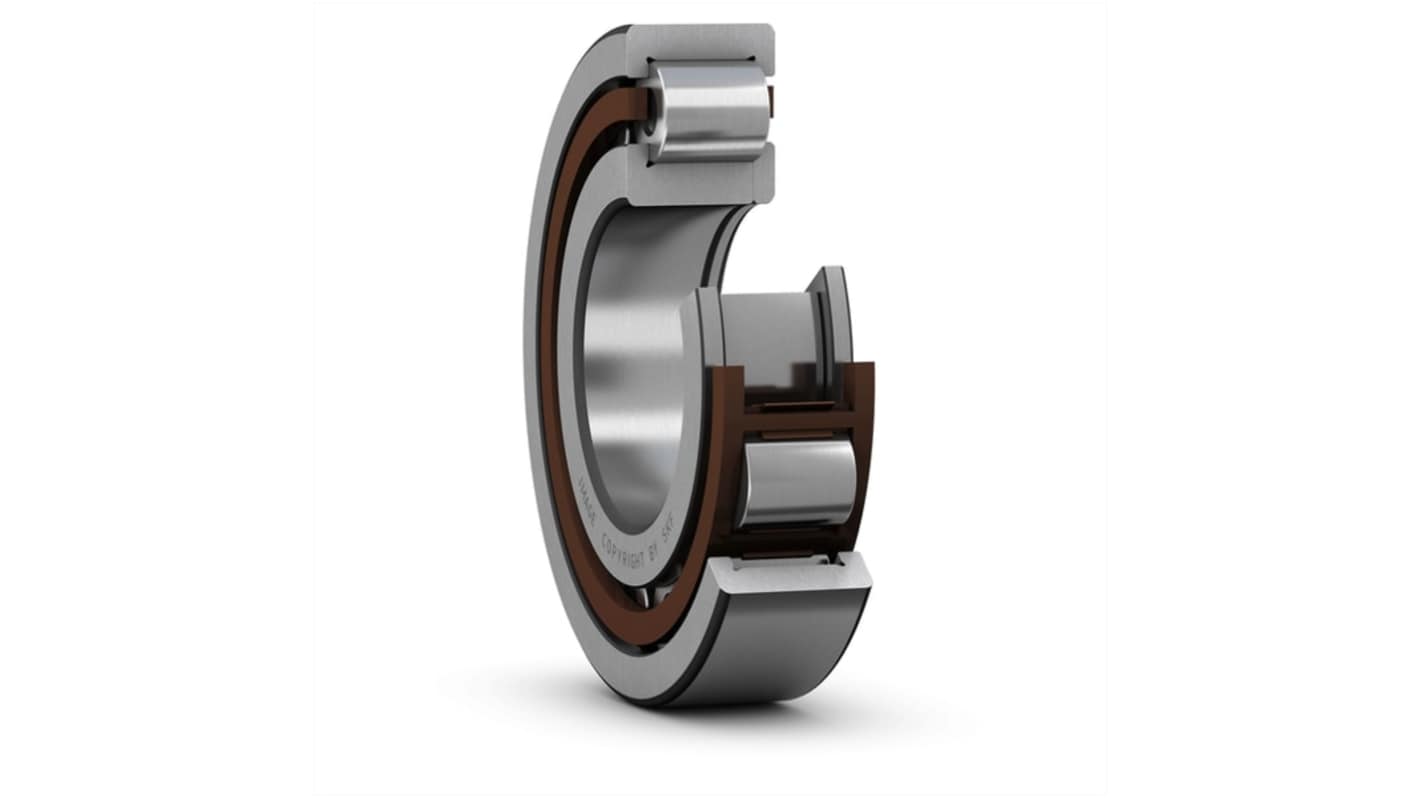

SKF NUP 207 ECP 35 mm ID Cylindrical Roller Bearing, 72 mm OD
- RS Stock No.:
- 463-686
- Mfr. Part No.:
- NUP 207 ECP
- Brand:
- SKF
Subtotal (1 unit)*
£119.94
(exc. VAT)
£143.93
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £119.94 |
*price indicative
- RS Stock No.:
- 463-686
- Mfr. Part No.:
- NUP 207 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 35mm | |
| Race Width | 17mm | |
| Bore Type | Cylindrical | |
| Cage Material | Non-Metallic | |
| Static Load Rating | 48kN | |
| Internal Clearance | CN | |
| Outside Diameter | 72mm | |
| Dynamic Load Rating | 56kN | |
| Standards/Approvals | RoHS | |
| Series | NUP | |
| Limiting Speed | 12000rpm | |
| Number of Rows | 1 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 35mm | ||
Race Width 17mm | ||
Bore Type Cylindrical | ||
Cage Material Non-Metallic | ||
Static Load Rating 48kN | ||
Internal Clearance CN | ||
Outside Diameter 72mm | ||
Dynamic Load Rating 56kN | ||
Standards/Approvals RoHS | ||
Series NUP | ||
Limiting Speed 12000rpm | ||
Number of Rows 1 | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Low friction
Long service life
Locate the shaft axially in both directions
