SKF RNA 4901 16 mm ID Roller Bearing Needle, 24 mm OD
- RS Stock No.:
- 463-567
- Mfr. Part No.:
- RNA 4901
- Brand:
- SKF
Subtotal (1 unit)*
£22.30
(exc. VAT)
£26.76
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.30 |
*price indicative
- RS Stock No.:
- 463-567
- Mfr. Part No.:
- RNA 4901
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 16mm | |
| Race Width | 13mm | |
| Cage Material | Sheet Steel | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 9.9kN | |
| Standards/Approvals | RoHS | |
| Series | RNA 4901 | |
| Outside Diameter | 24mm | |
| Bearing Material | Bearing Steel | |
| Static Load Rating | 12.2kN | |
| Limiting Speed | 26000rpm | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 16mm | ||
Race Width 13mm | ||
Cage Material Sheet Steel | ||
Number of Rows 1 | ||
Dynamic Load Rating 9.9kN | ||
Standards/Approvals RoHS | ||
Series RNA 4901 | ||
Outside Diameter 24mm | ||
Bearing Material Bearing Steel | ||
Static Load Rating 12.2kN | ||
Limiting Speed 26000rpm | ||
Bearing Type Needle | ||
- COO (Country of Origin):
- SK

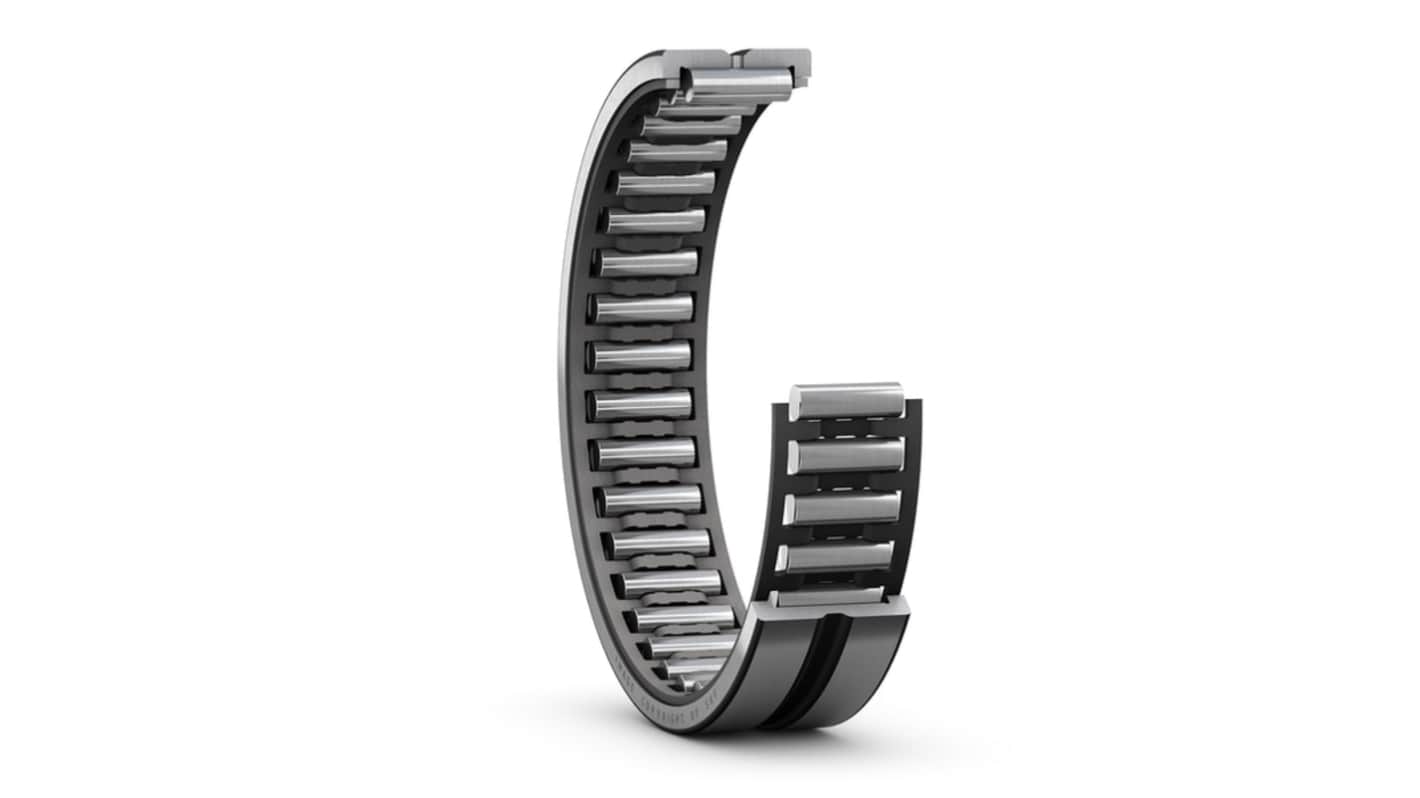

The SKF Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
High radial load carrying capacity
High stiffness
Low cross sectional height
Accommodate axial displacement in both directions
