SKF NU 236 ECM 180 mm ID Cylindrical Roller Bearing, 320 mm OD
- RS Stock No.:
- 463-070
- Mfr. Part No.:
- NU 236 ECM
- Brand:
- SKF
Subtotal (1 unit)*
£1,986.16
(exc. VAT)
£2,383.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,986.16 |
*price indicative
- RS Stock No.:
- 463-070
- Mfr. Part No.:
- NU 236 ECM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 180 mm | |
| Race Width | 52mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Series | NU | |
| Static Load Rating | 850kN | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 720kN | |
| Standards/Approvals | RoHS | |
| Outside Diameter | 320 mm | |
| Limiting Speed | 2400rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 180 mm | ||
Race Width 52mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Series NU | ||
Static Load Rating 850kN | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Dynamic Load Rating 720kN | ||
Standards/Approvals RoHS | ||
Outside Diameter 320 mm | ||
Limiting Speed 2400rpm | ||
- COO (Country of Origin):
- DE

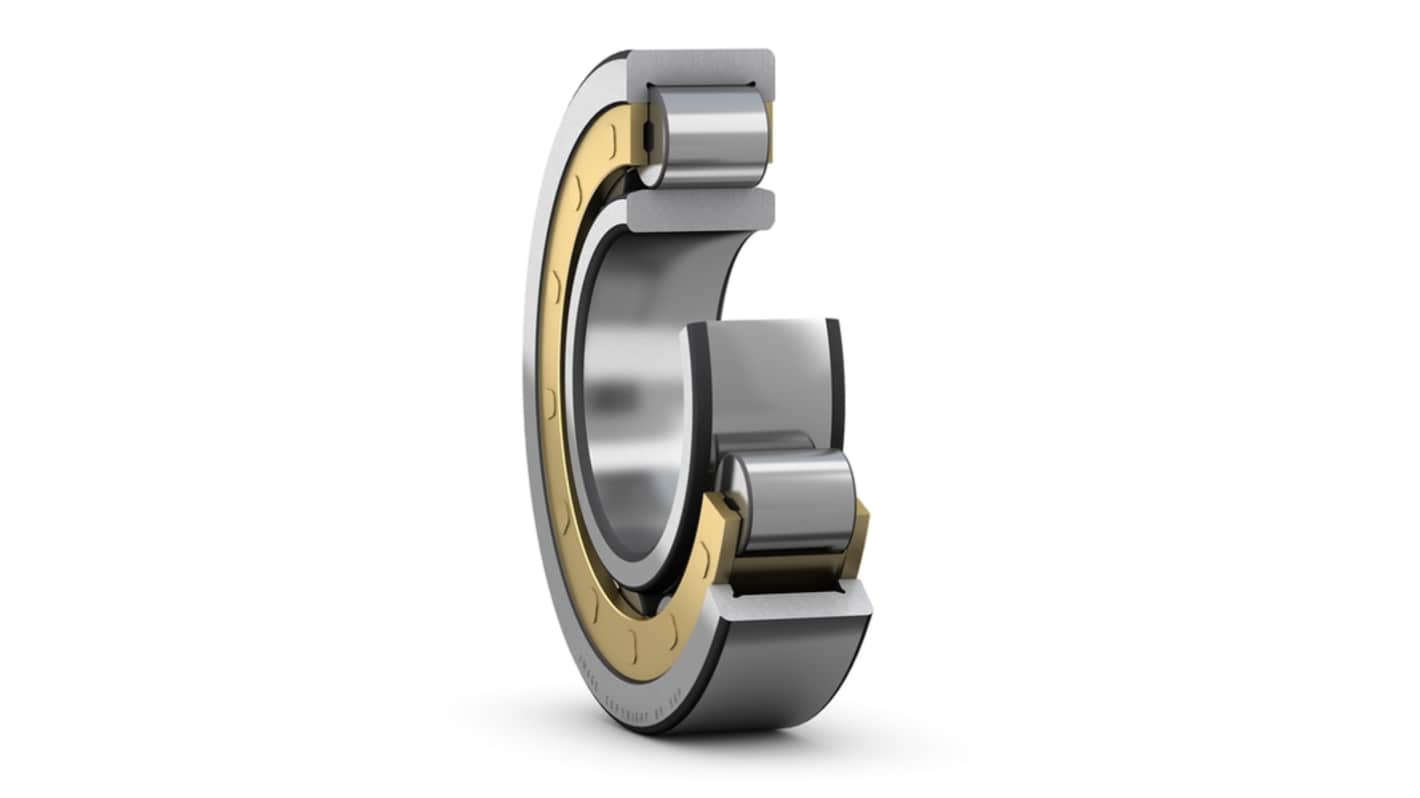

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Low friction
Long service life
Accommodate axial displacement in both directions
