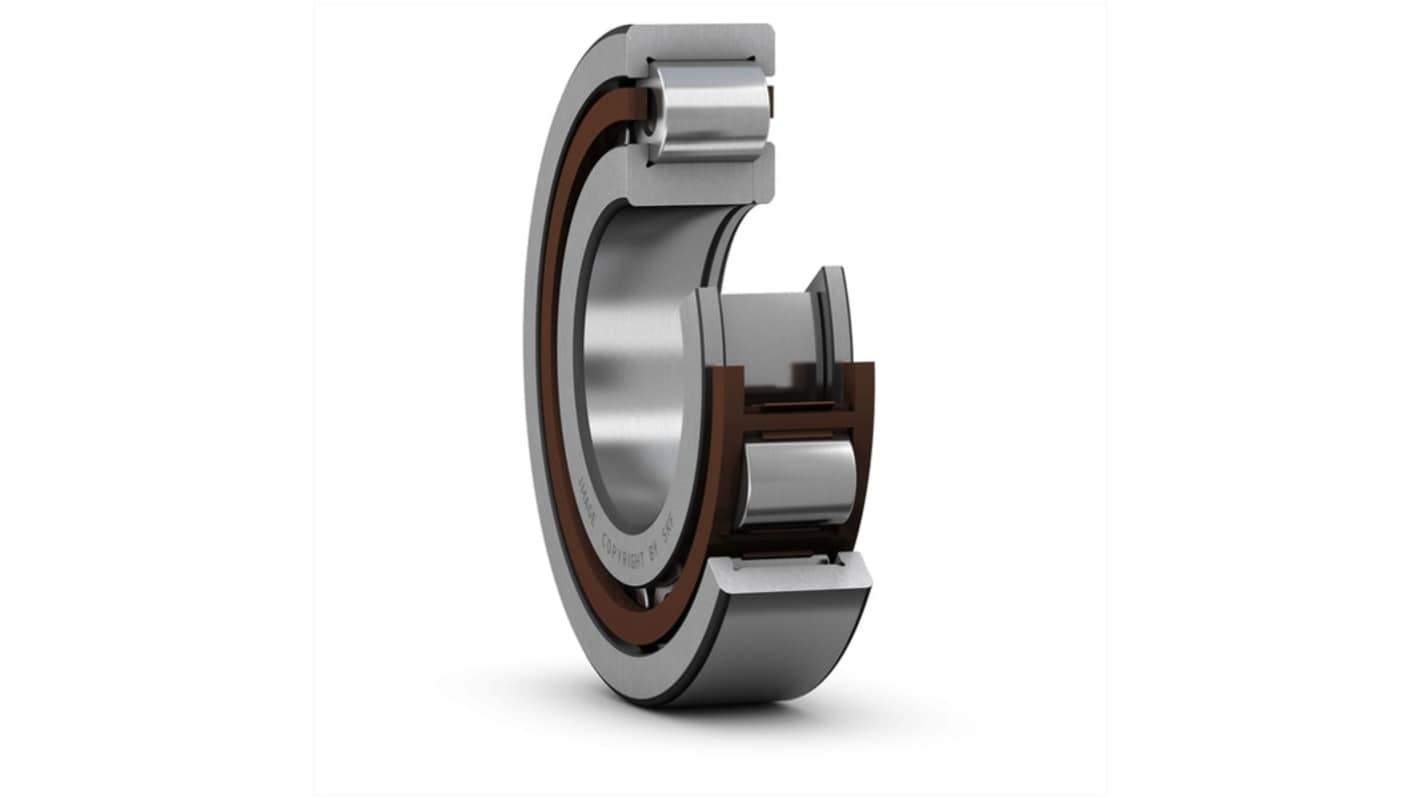

SKF NUP 216 ECP 80 mm ID Cylindrical Roller Bearing, 140 mm OD
- RS Stock No.:
- 462-829
- Mfr. Part No.:
- NUP 216 ECP
- Brand:
- SKF
Subtotal (1 unit)*
£231.25
(exc. VAT)
£277.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £231.25 |
*price indicative
- RS Stock No.:
- 462-829
- Mfr. Part No.:
- NUP 216 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 26mm | |
| Bore Type | Cylindrical | |
| Cage Material | Non-Metallic | |
| Limiting Speed | 5600rpm | |
| Internal Clearance | CN | |
| Static Load Rating | 166kN | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 160kN | |
| Outside Diameter | 140 mm | |
| Series | NUP | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 26mm | ||
Bore Type Cylindrical | ||
Cage Material Non-Metallic | ||
Limiting Speed 5600rpm | ||
Internal Clearance CN | ||
Static Load Rating 166kN | ||
Number of Rows 1 | ||
Dynamic Load Rating 160kN | ||
Outside Diameter 140 mm | ||
Series NUP | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions.
High radial load carrying capacity
Low friction
Long service life
