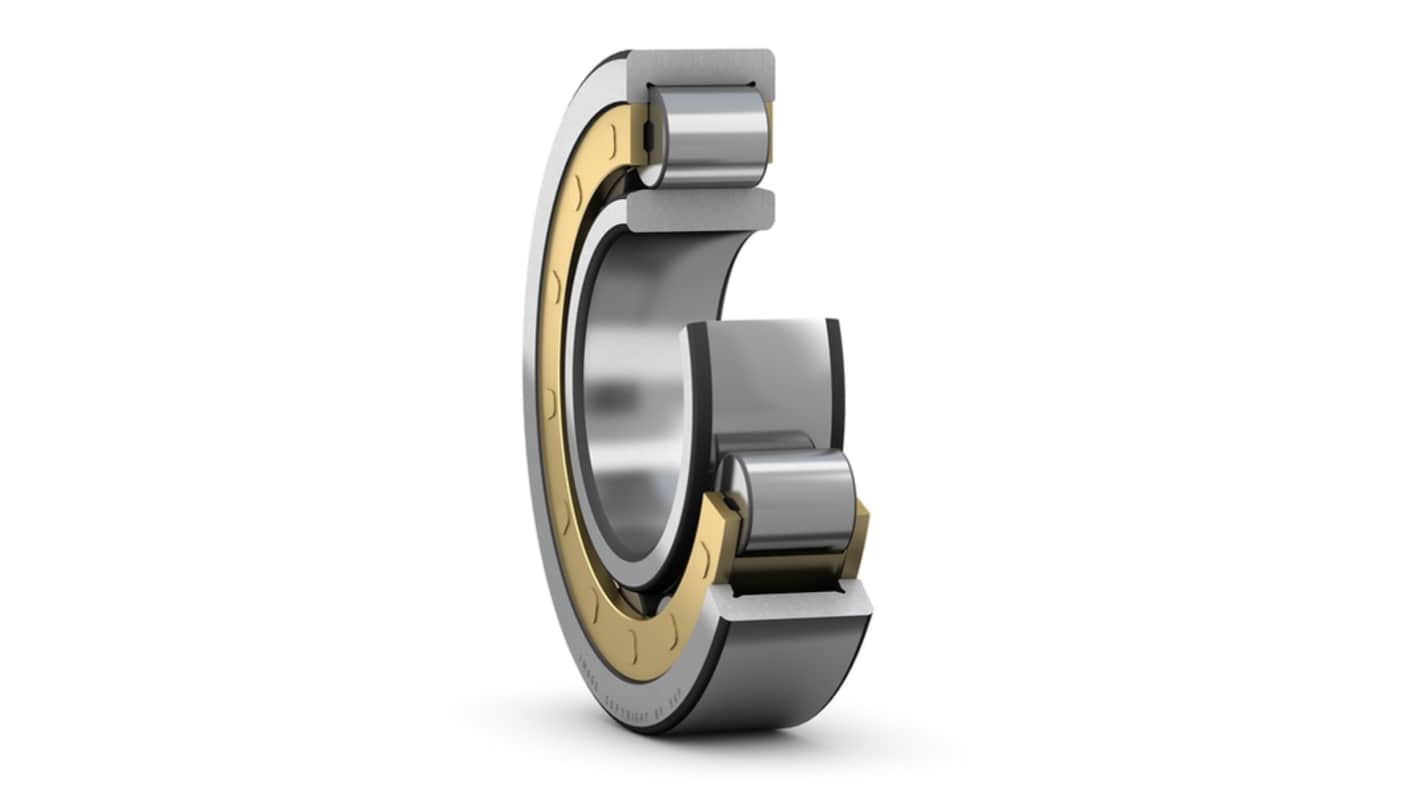

SKF NU 330 ECM 150 mm ID Roller Bearing, 320 mm OD
- RS Stock No.:
- 462-814
- Mfr. Part No.:
- NU 330 ECM
- Brand:
- SKF
Subtotal (1 unit)*
£2,687.40
(exc. VAT)
£3,224.88
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,687.40 |
*price indicative
- RS Stock No.:
- 462-814
- Mfr. Part No.:
- NU 330 ECM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 150mm | |
| Race Width | 65mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Number of Rows | 1 | |
| Static Load Rating | 965kN | |
| Limiting Speed | 2600rpm | |
| Outside Diameter | 320mm | |
| Internal Clearance | CN | |
| Series | NU | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 900kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 150mm | ||
Race Width 65mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Number of Rows 1 | ||
Static Load Rating 965kN | ||
Limiting Speed 2600rpm | ||
Outside Diameter 320mm | ||
Internal Clearance CN | ||
Series NU | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 900kN | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions.
High radial load carrying capacity
Low friction
Long service life
