SKF NU 2218 ECM/C3 90 mm ID Roller Bearing, 160 mm OD
- RS Stock No.:
- 462-804
- Mfr. Part No.:
- NU 2218 ECM/C3
- Brand:
- SKF
Subtotal (1 unit)*
£604.07
(exc. VAT)
£724.88
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £604.07 |
*price indicative
- RS Stock No.:
- 462-804
- Mfr. Part No.:
- NU 2218 ECM/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 90mm | |
| Race Width | 40mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Static Load Rating | 315kN | |
| Standards/Approvals | RoHS | |
| Series | NU | |
| Dynamic Load Rating | 280kN | |
| Internal Clearance | C3 | |
| Number of Rows | 1 | |
| Outside Diameter | 160mm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 90mm | ||
Race Width 40mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Static Load Rating 315kN | ||
Standards/Approvals RoHS | ||
Series NU | ||
Dynamic Load Rating 280kN | ||
Internal Clearance C3 | ||
Number of Rows 1 | ||
Outside Diameter 160mm | ||
- COO (Country of Origin):
- DE

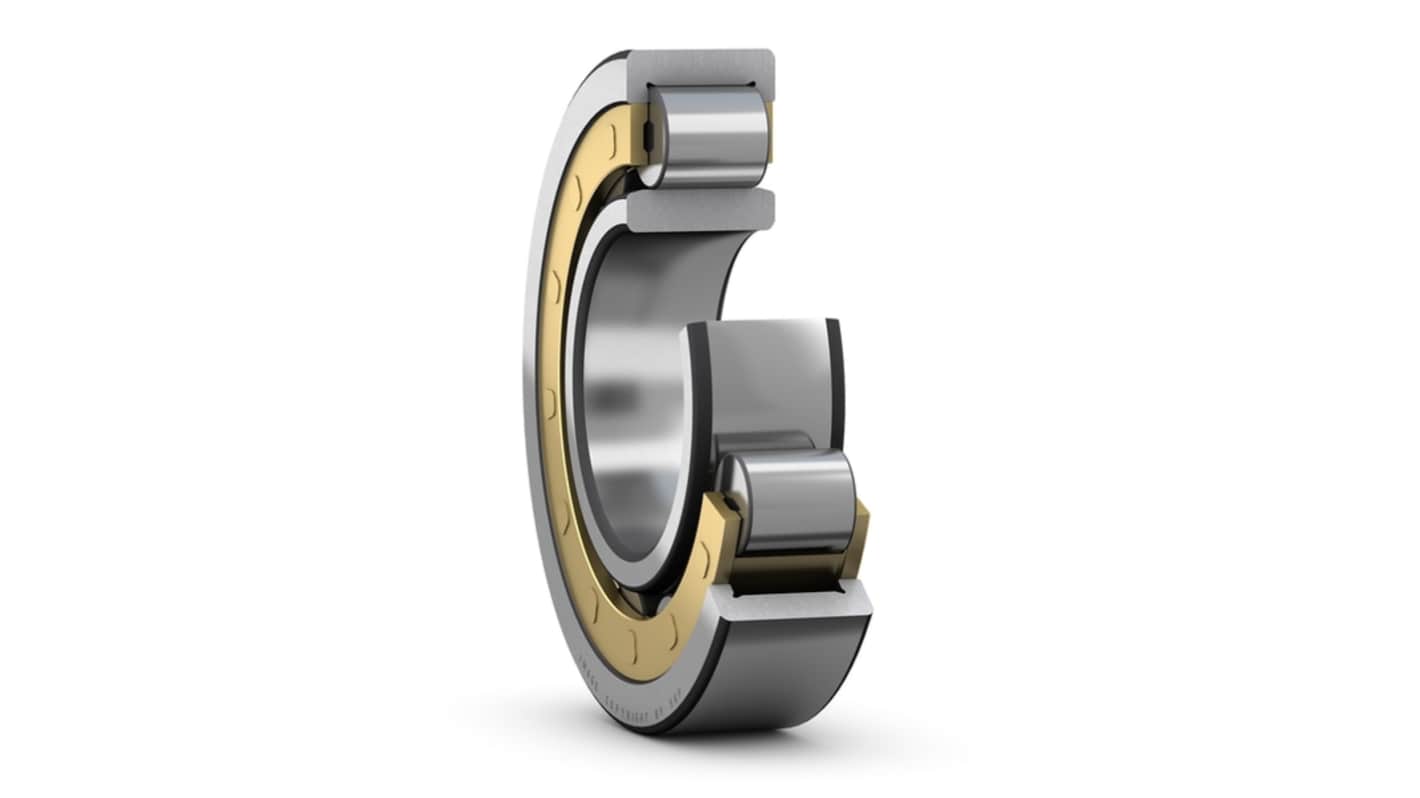

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions.
High radial load carrying capacity
Low friction
Long service life
