SKF 23238 CC/C3W33 Cylindrical 190 mm ID Roller Bearing, 340 mm OD
- RS Stock No.:
- 462-169
- Mfr. Part No.:
- 23238 CC/C3W33
- Brand:
- SKF
Subtotal (1 unit)*
£3,394.93
(exc. VAT)
£4,073.92
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,394.93 |
*price indicative
- RS Stock No.:
- 462-169
- Mfr. Part No.:
- 23238 CC/C3W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 190mm | |
| Race Width | 120mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Number of Rows | 2 | |
| Limiting Speed | 1800rpm | |
| Internal Clearance | C3 | |
| Outside Diameter | 340mm | |
| Standards/Approvals | RoHS, UNSPSC, eClass | |
| Dynamic Load Rating | 1759kN | |
| Static Load Rating | 2400kN | |
| Race Type | Cylindrical | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 190mm | ||
Race Width 120mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Number of Rows 2 | ||
Limiting Speed 1800rpm | ||
Internal Clearance C3 | ||
Outside Diameter 340mm | ||
Standards/Approvals RoHS, UNSPSC, eClass | ||
Dynamic Load Rating 1759kN | ||
Static Load Rating 2400kN | ||
Race Type Cylindrical | ||
Rupali

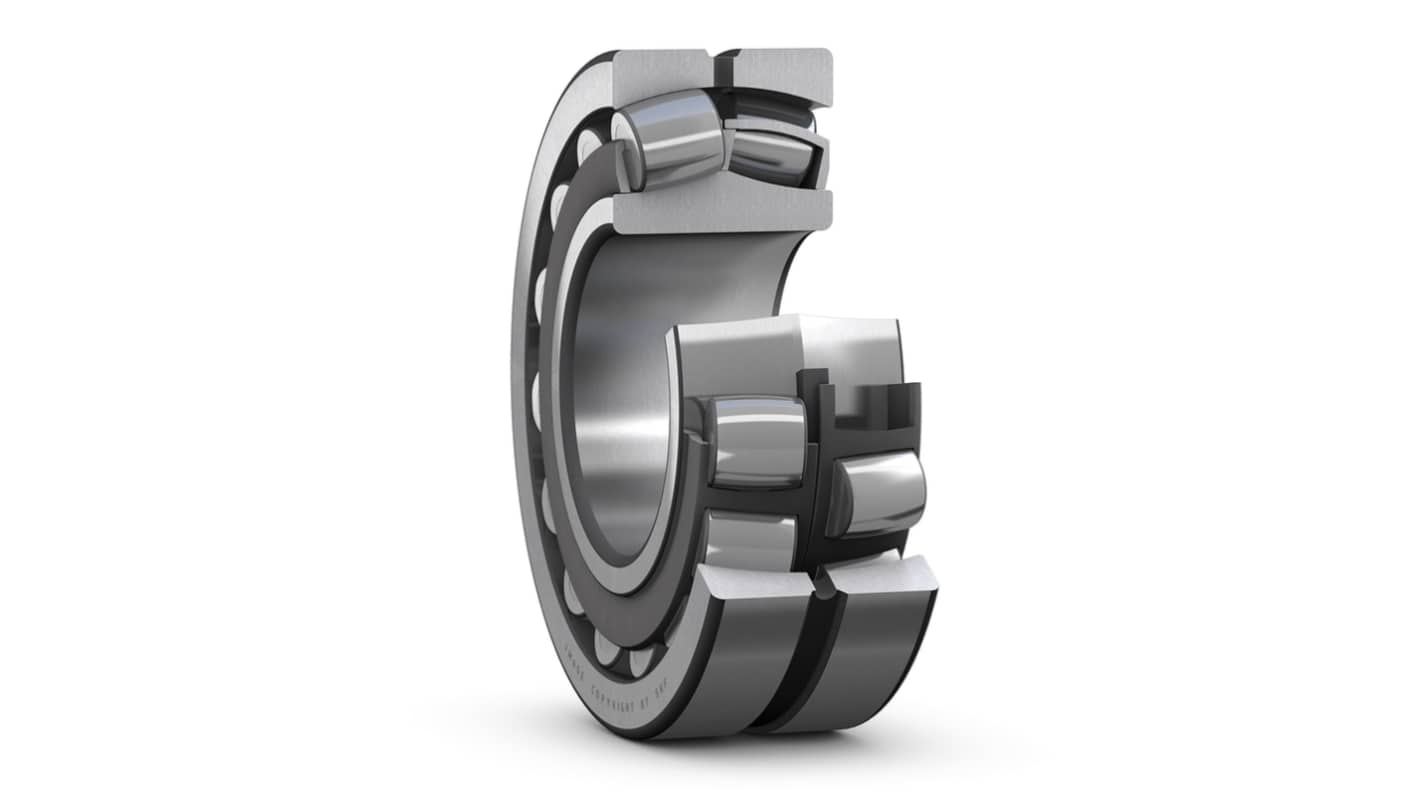

The SKF Spherical roller bearings can accommodate heavy loads in both directions. They are self aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
