SKF 23160 CCK/C3W33 Tapered 1:12 300 mm ID Roller Bearing, 500 mm OD
- RS Stock No.:
- 462-159
- Mfr. Part No.:
- 23160 CCK/C3W33
- Brand:
- SKF
Subtotal (1 unit)*
£7,429.54
(exc. VAT)
£8,915.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7,429.54 |
*price indicative
- RS Stock No.:
- 462-159
- Mfr. Part No.:
- 23160 CCK/C3W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 300mm | |
| Race Width | 160mm | |
| Bore Type | Tapered 1:12 | |
| Cage Material | Sheet Metal | |
| Static Load Rating | 5100kN | |
| Dynamic Load Rating | 3368kN | |
| Standards/Approvals | UNSPSC, RoHS, eClass | |
| Number of Rows | 2 | |
| Limiting Speed | 1200rpm | |
| Outside Diameter | 500mm | |
| Internal Clearance | C3 | |
| Race Type | Tapered | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 300mm | ||
Race Width 160mm | ||
Bore Type Tapered 1:12 | ||
Cage Material Sheet Metal | ||
Static Load Rating 5100kN | ||
Dynamic Load Rating 3368kN | ||
Standards/Approvals UNSPSC, RoHS, eClass | ||
Number of Rows 2 | ||
Limiting Speed 1200rpm | ||
Outside Diameter 500mm | ||
Internal Clearance C3 | ||
Race Type Tapered | ||
- COO (Country of Origin):
- SE
Rupali

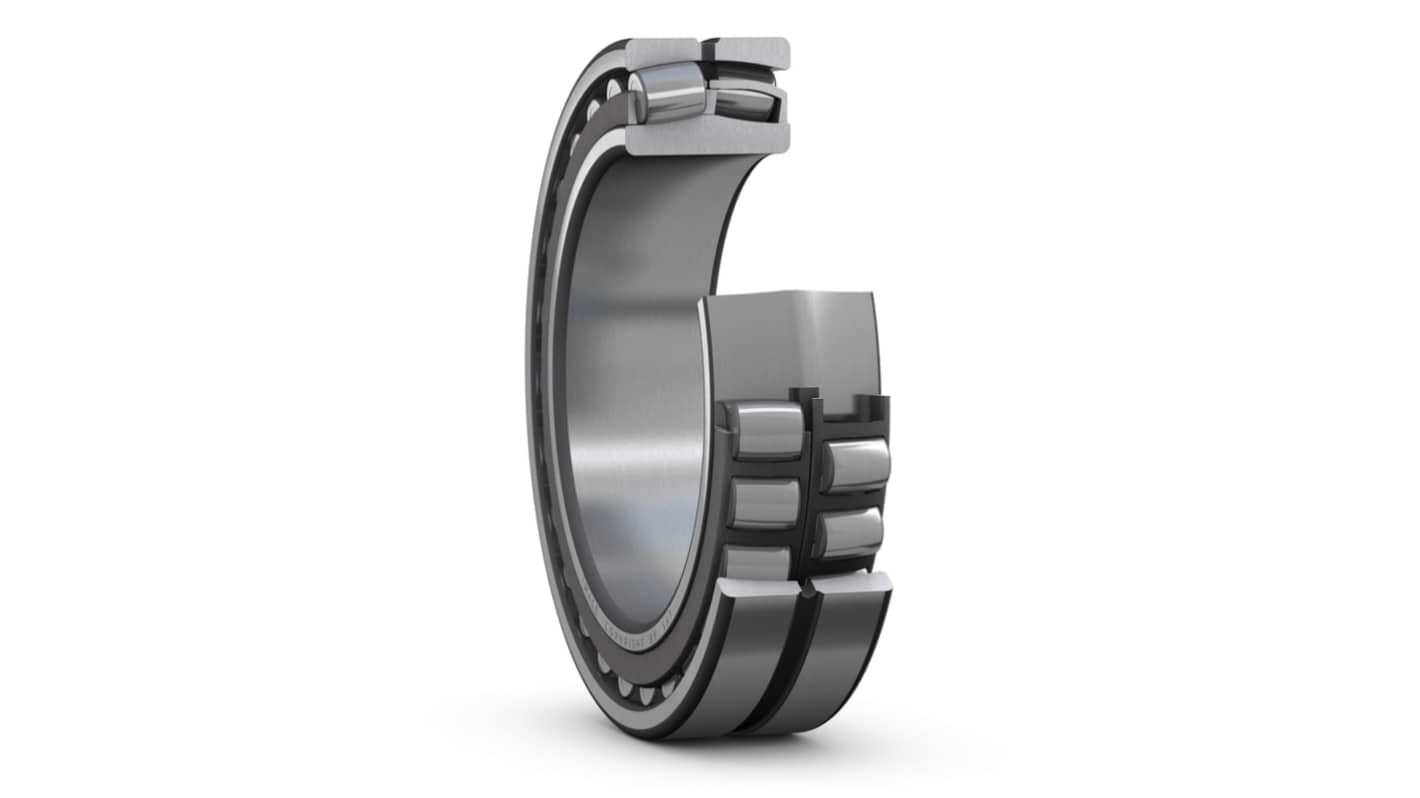

The SKF Spherical roller bearings can accommodate heavy loads in both directions. They are self aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
