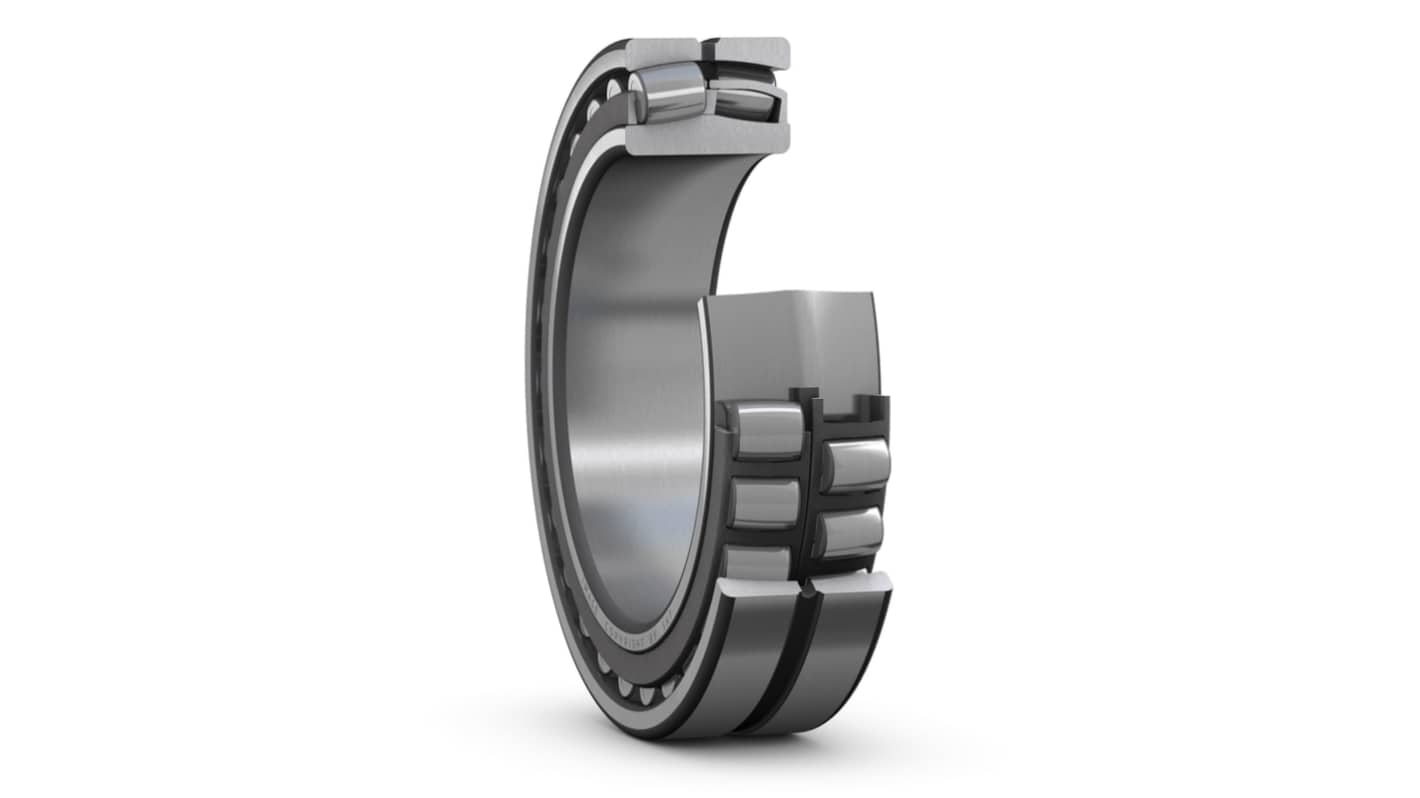

SKF 23136 CCK/C3W33 Tapered 1:12 180 mm ID Spherical Roller Bearing, 300 mm OD
- RS Stock No.:
- 461-507
- Mfr. Part No.:
- 23136 CCK/C3W33
- Brand:
- SKF
Subtotal (1 unit)*
£2,015.36
(exc. VAT)
£2,418.43
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,015.36 |
*price indicative
- RS Stock No.:
- 461-507
- Mfr. Part No.:
- 23136 CCK/C3W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 180mm | |
| Race Width | 96mm | |
| Bore Type | Tapered 1:12 | |
| Cage Material | Sheet Metal | |
| Limiting Speed | 2200rpm | |
| Standards/Approvals | UNSPSC, RoHS, eClass | |
| Outside Diameter | 300mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 1760kN | |
| Number of Rows | 2 | |
| Dynamic Load Rating | 1263kN | |
| Race Type | Tapered | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 180mm | ||
Race Width 96mm | ||
Bore Type Tapered 1:12 | ||
Cage Material Sheet Metal | ||
Limiting Speed 2200rpm | ||
Standards/Approvals UNSPSC, RoHS, eClass | ||
Outside Diameter 300mm | ||
Internal Clearance C3 | ||
Static Load Rating 1760kN | ||
Number of Rows 2 | ||
Dynamic Load Rating 1263kN | ||
Race Type Tapered | ||
- COO (Country of Origin):
- SE
Rupali
The SKF Spherical roller bearings can accommodate heavy loads in both directions. They are self aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
