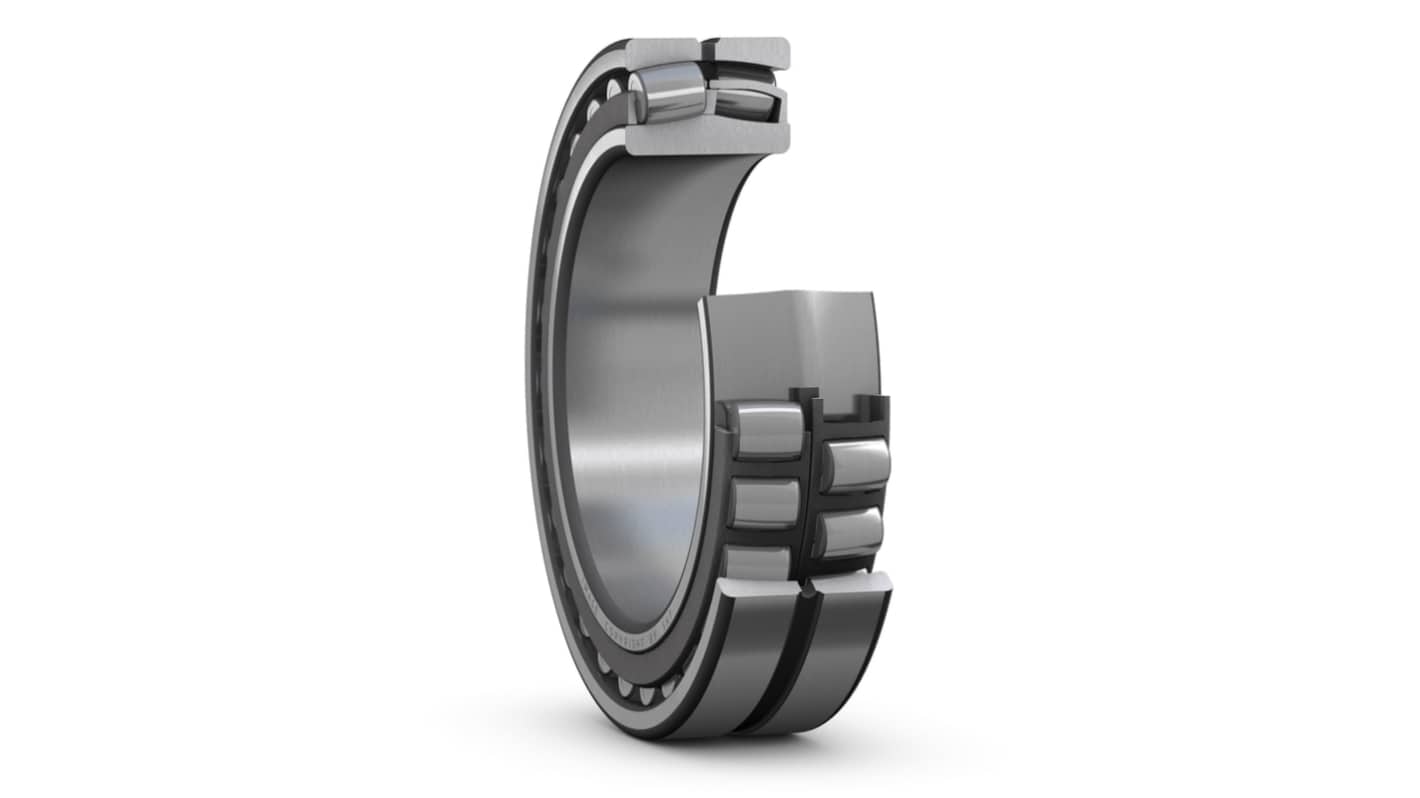

SKF 22328 CCKJA/W33VA405 Tapered 1:12 140 mm I.D Spherical Roller Bearing, 300 mm O.D
- RS Stock No.:
- 460-215
- Mfr. Part No.:
- 22328 CCKJA/W33VA405
- Brand:
- SKF
Subtotal (1 unit)*
£2,290.29
(exc. VAT)
£2,748.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,290.29 |
*price indicative
- RS Stock No.:
- 460-215
- Mfr. Part No.:
- 22328 CCKJA/W33VA405
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 140 mm | |
| Race Width | 102mm | |
| Bore Type | Tapered 1:12 | |
| Cage Material | Sheet Metal | |
| Outside Diameter | 300 mm | |
| Internal Clearance | CN | |
| Series | 22328 CCKJA/W33VA405 | |
| Static Load Rating | 1560kN | |
| Number of Rows | 2 | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 2200rpm | |
| Dynamic Load Rating | 1357kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 140 mm | ||
Race Width 102mm | ||
Bore Type Tapered 1:12 | ||
Cage Material Sheet Metal | ||
Outside Diameter 300 mm | ||
Internal Clearance CN | ||
Series 22328 CCKJA/W33VA405 | ||
Static Load Rating 1560kN | ||
Number of Rows 2 | ||
Standards/Approvals RoHS | ||
Limiting Speed 2200rpm | ||
Dynamic Load Rating 1357kN | ||
- COO (Country of Origin):
- SE
Rupali
The SKF Spherical roller bearings can accommodate heavy loads in both directions. They are self aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
High load carrying capacity
Accommodate very high vibration levels
Low friction and long service life
Increased wear resistance
