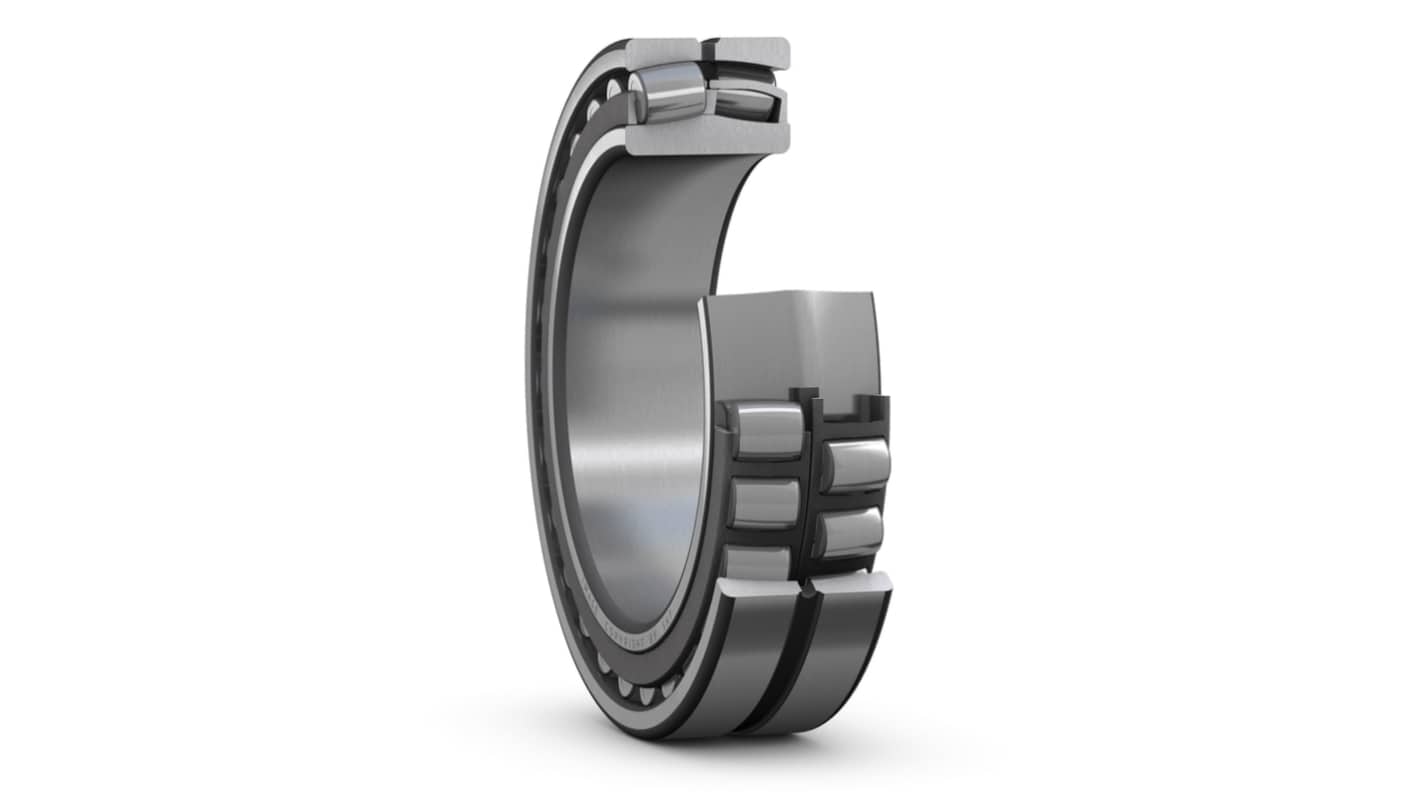

SKF 22326 CCK/W33 Tapered 1:12 130 mm ID Spherical Roller Bearing, 280 mm OD
- RS Stock No.:
- 462-093
- Mfr. Part No.:
- 22326 CCK/W33
- Brand:
- SKF
Subtotal (1 unit)*
£1,760.38
(exc. VAT)
£2,112.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,760.38 |
*price indicative
- RS Stock No.:
- 462-093
- Mfr. Part No.:
- 22326 CCK/W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 130 mm | |
| Race Width | 93mm | |
| Bore Type | Tapered 1:12 | |
| Cage Material | Sheet Metal | |
| Static Load Rating | 1320kN | |
| Series | 22326 CCK/W33 | |
| Internal Clearance | CN | |
| Number of Rows | 2 | |
| Outside Diameter | 280 mm | |
| Limiting Speed | 2400rpm | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 1176kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 130 mm | ||
Race Width 93mm | ||
Bore Type Tapered 1:12 | ||
Cage Material Sheet Metal | ||
Static Load Rating 1320kN | ||
Series 22326 CCK/W33 | ||
Internal Clearance CN | ||
Number of Rows 2 | ||
Outside Diameter 280 mm | ||
Limiting Speed 2400rpm | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 1176kN | ||
- COO (Country of Origin):
- SE
Rupali
The SKF Spherical roller bearings can accommodate heavy loads in both directions. They are self aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
