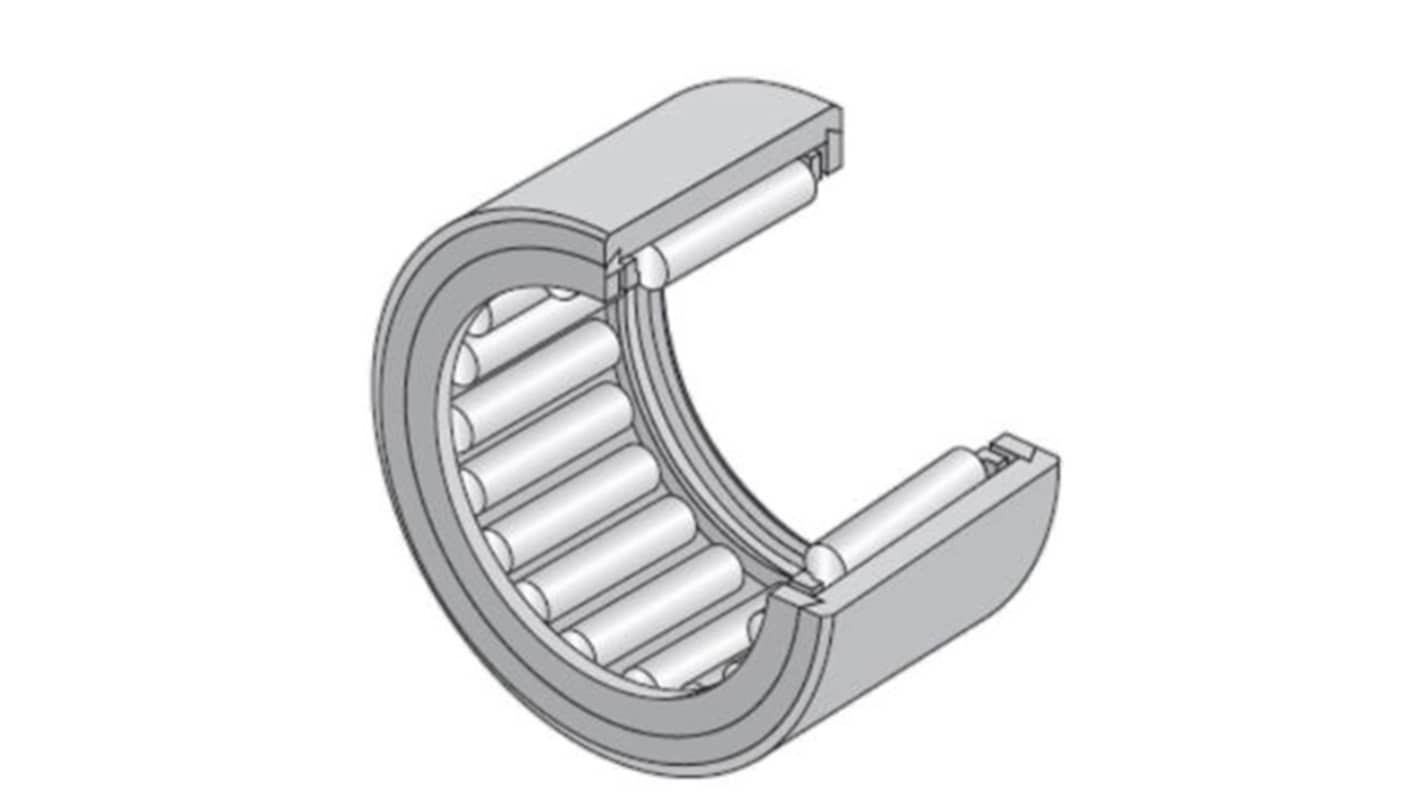

NTN RNA496 8 mm ID Needle Roller Bearing Needle Roller, 15 mm OD
- RS Stock No.:
- 455-622
- Mfr. Part No.:
- RNA496
- Brand:
- NTN
Subtotal (1 unit)*
£18.87
(exc. VAT)
£22.64
(inc. VAT)
Add 3 units to get free delivery
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.87 |
*price indicative
- RS Stock No.:
- 455-622
- Mfr. Part No.:
- RNA496
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 8 mm | |
| Race Width | 10mm | |
| Roller Material | Steel | |
| Maximum Speed - Grease | 21000rpm | |
| Maximum Speed - Oil | 32000rpm | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 3.15kN | |
| Outside Diameter | 15 mm | |
| Series | RNA496 | |
| Internal Clearance | CN | |
| Static Load Rating | 3kN | |
| Number of Rows | 1 | |
| Race Type | Machine-Ring | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 8 mm | ||
Race Width 10mm | ||
Roller Material Steel | ||
Maximum Speed - Grease 21000rpm | ||
Maximum Speed - Oil 32000rpm | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 3.15kN | ||
Outside Diameter 15 mm | ||
Series RNA496 | ||
Internal Clearance CN | ||
Static Load Rating 3kN | ||
Number of Rows 1 | ||
Race Type Machine-Ring | ||
Bearing Type Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing is expertly designed without an inner ring, making it ideal for applications where compactness is essential. The machined-ring construction ensures a precise fit, while the double-side plates enhance stability during operation. Perfect for high-speed environments, this bearing features a lubrication hole on the outer ring, allowing for easy maintenance and extended service life. The RNA496 offers exceptional load-carrying capabilities, making it suitable for demanding applications in various machinery and equipment. Its high manufacturing precision and quality materials reflect the reliability and performance synonymous with ntn products.
Suitable for both grease and oil lubrication methods
Enhanced dynamic and static load ratings for robust performance
Capable of operating efficiently at extreme temperatures
Double-side plates provide improved structural integrity
Lubrication hole facilitates straightforward maintenance
Manufactured with high-quality rolling element material for superior durability
