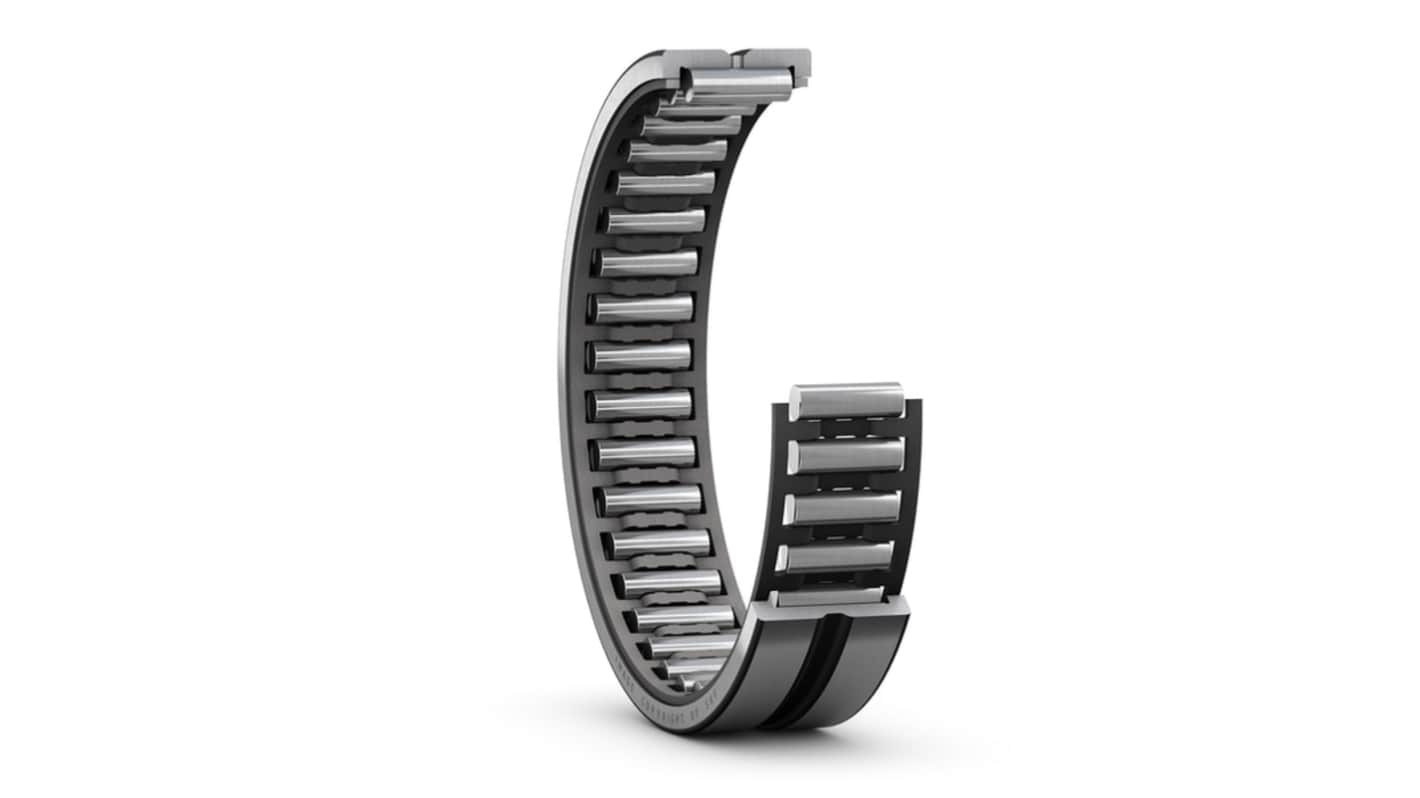

NTN RNA4826 145 mm I.D Needle Roller Bearing Needle Roller, 165 mm O.D
- RS Stock No.:
- 455-498
- Mfr. Part No.:
- RNA4826
- Brand:
- NTN
Subtotal (1 unit)*
£328.25
(exc. VAT)
£393.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £328.25 |
*price indicative
- RS Stock No.:
- 455-498
- Mfr. Part No.:
- RNA4826
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 145 mm | |
| Race Width | 35mm | |
| Cage Material | Sheet Steel | |
| Limiting Speed | 3200rpm | |
| Number of Rows | 1 | |
| Maximum Speed - Grease | 11400°/s | |
| Maximum Speed - Oil | 16800°/s | |
| Standards/Approvals | ISO | |
| Dynamic Load Rating | 137kN | |
| Bearing Material | Bearing Steel | |
| Outside Diameter | 165 mm | |
| Static Load Rating | 325kN | |
| Series | RNA 4826 | |
| Internal Clearance | Normal | |
| Race Type | Machine (Solid) | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 145 mm | ||
Race Width 35mm | ||
Cage Material Sheet Steel | ||
Limiting Speed 3200rpm | ||
Number of Rows 1 | ||
Maximum Speed - Grease 11400°/s | ||
Maximum Speed - Oil 16800°/s | ||
Standards/Approvals ISO | ||
Dynamic Load Rating 137kN | ||
Bearing Material Bearing Steel | ||
Outside Diameter 165 mm | ||
Static Load Rating 325kN | ||
Series RNA 4826 | ||
Internal Clearance Normal | ||
Race Type Machine (Solid) | ||
Bearing Type Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Single row needle roller bearing is designed with machined rings and integral flanges, providing an elegant solution for compact bearing arrangements. Its innovative structure allows for high radial load carrying capacity while maintaining a low cross-sectional height, making it ideal for applications where space is at a premium. The outer ring is equipped with an annular groove and lubrication holes for easy maintenance, ensuring that you can keep it in peak condition with minimal effort. Whether for industrial machinery or automotive applications, this bearing stands out with its exceptional stiffness and ability to accommodate axial displacement in both directions.
Integral flanges facilitate efficient axial guidance for stable operation
Annular groove and lubrication holes ensure straightforward maintenance
Designed for robust performance in dynamic and static applications
Sheet steel cage enhances durability and provides optimal needle roller positioning
Compatibility with hardened and ground raceways increases operational effectiveness
