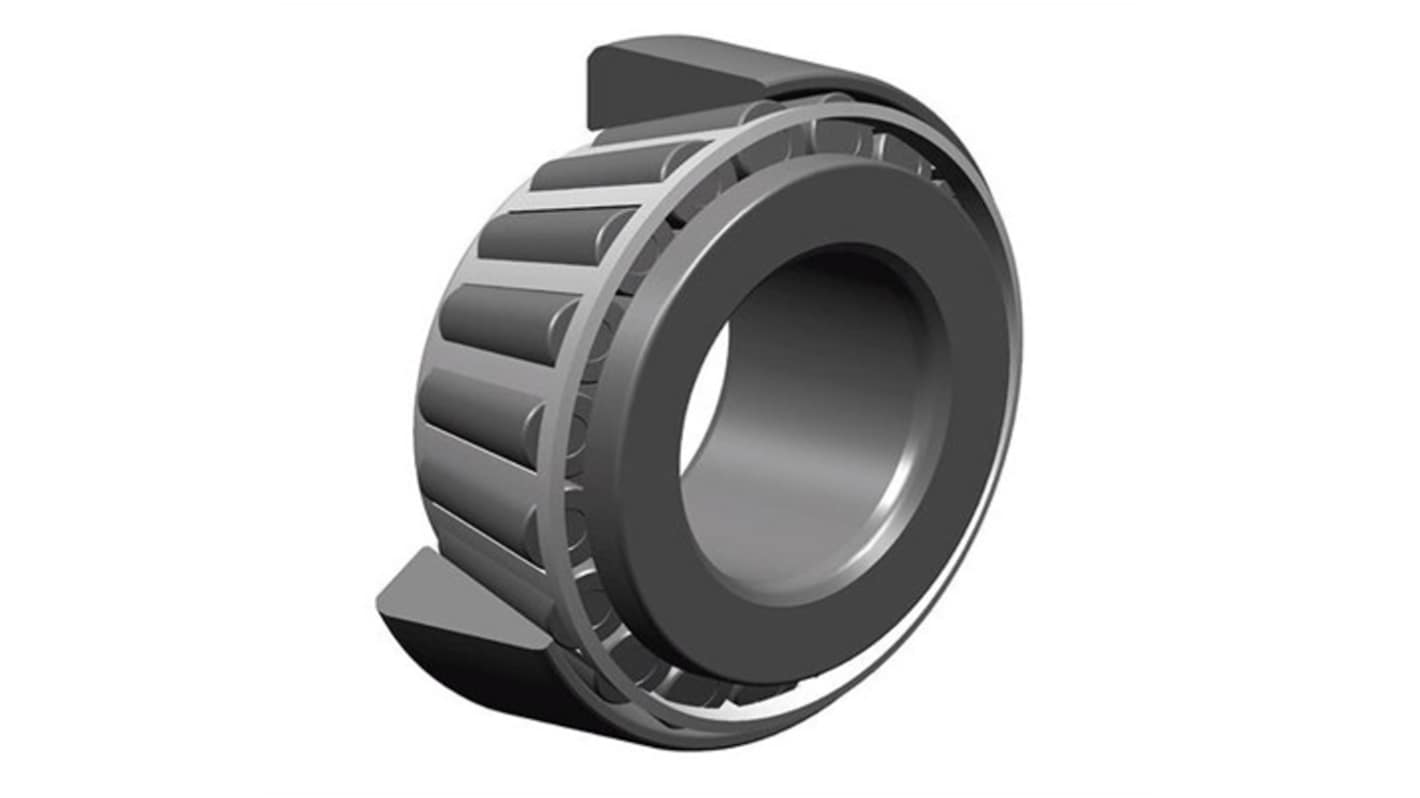

NTN 4T-13687/13621 Taper Roller 38.1 mm ID Taper Roller Bearing, 69.012 mm OD
- RS Stock No.:
- 455-397
- Mfr. Part No.:
- 4T-13687/13621
- Brand:
- NTN
Subtotal (1 unit)*
£26.51
(exc. VAT)
£31.81
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.51 |
*price indicative
- RS Stock No.:
- 455-397
- Mfr. Part No.:
- 4T-13687/13621
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Taper Roller Bearing | |
| Inside Diameter | 38.1 mm | |
| Cage Material | Pressed Steel | |
| Roller Material | Case Hardening Steel | |
| Cone Width | 19.05mm | |
| Number of Rows | 1 | |
| Cup Width | 15.083mm | |
| Static Load Rating | 59.5kN | |
| Series | 4T-13687/13621 | |
| Bearing Material | Case Carburised Steel | |
| Outside Diameter | 69.012 mm | |
| Bearing Dynamic Load Rating | 53 KN | |
| Standards/Approvals | ABMA, JIS B 1512, ISO 355, RoHS | |
| Maximum Speed - Oil | 7100rpm | |
| Maximum Speed - Grease | 5300rpm | |
| Limiting Speed | 7100, 5300rpm | |
| Bearing Type | Taper Roller | |
| Race Type | Tapered | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Taper Roller Bearing | ||
Inside Diameter 38.1 mm | ||
Cage Material Pressed Steel | ||
Roller Material Case Hardening Steel | ||
Cone Width 19.05mm | ||
Number of Rows 1 | ||
Cup Width 15.083mm | ||
Static Load Rating 59.5kN | ||
Series 4T-13687/13621 | ||
Bearing Material Case Carburised Steel | ||
Outside Diameter 69.012 mm | ||
Bearing Dynamic Load Rating 53 KN | ||
Standards/Approvals ABMA, JIS B 1512, ISO 355, RoHS | ||
Maximum Speed - Oil 7100rpm | ||
Maximum Speed - Grease 5300rpm | ||
Limiting Speed 7100, 5300rpm | ||
Bearing Type Taper Roller | ||
Race Type Tapered | ||
- COO (Country of Origin):
- JP
The NTN Single Row Tapered Roller Bearing is expertly designed to deliver superior performance and reliability, making it ideal for a wide range of applications. Engineered to withstand both dynamic and static loads, this bearing ensures optimal functionality in challenging conditions. Its compact design optimises space while reducing friction, providing enhanced efficiency in machinery operations. With meticulous attention to detail, this product not only meets rigorous industry standards but also guarantees longevity, reducing the frequency of replacements and maintenance. Perfectly suited for various industrial setups, this bearing embodies quality and precision, helping to keep operations running smoothly.
Engineered with a pressed steel cage for improved durability
Optimises performance under both high dynamic and static load conditions
Compact design allows for efficient use of space in machinery
Reduced friction enhances overall equipment efficiency
Exceptional service life reduces the need for frequent replacements
Versatile application across multiple industries showcases its adaptability
