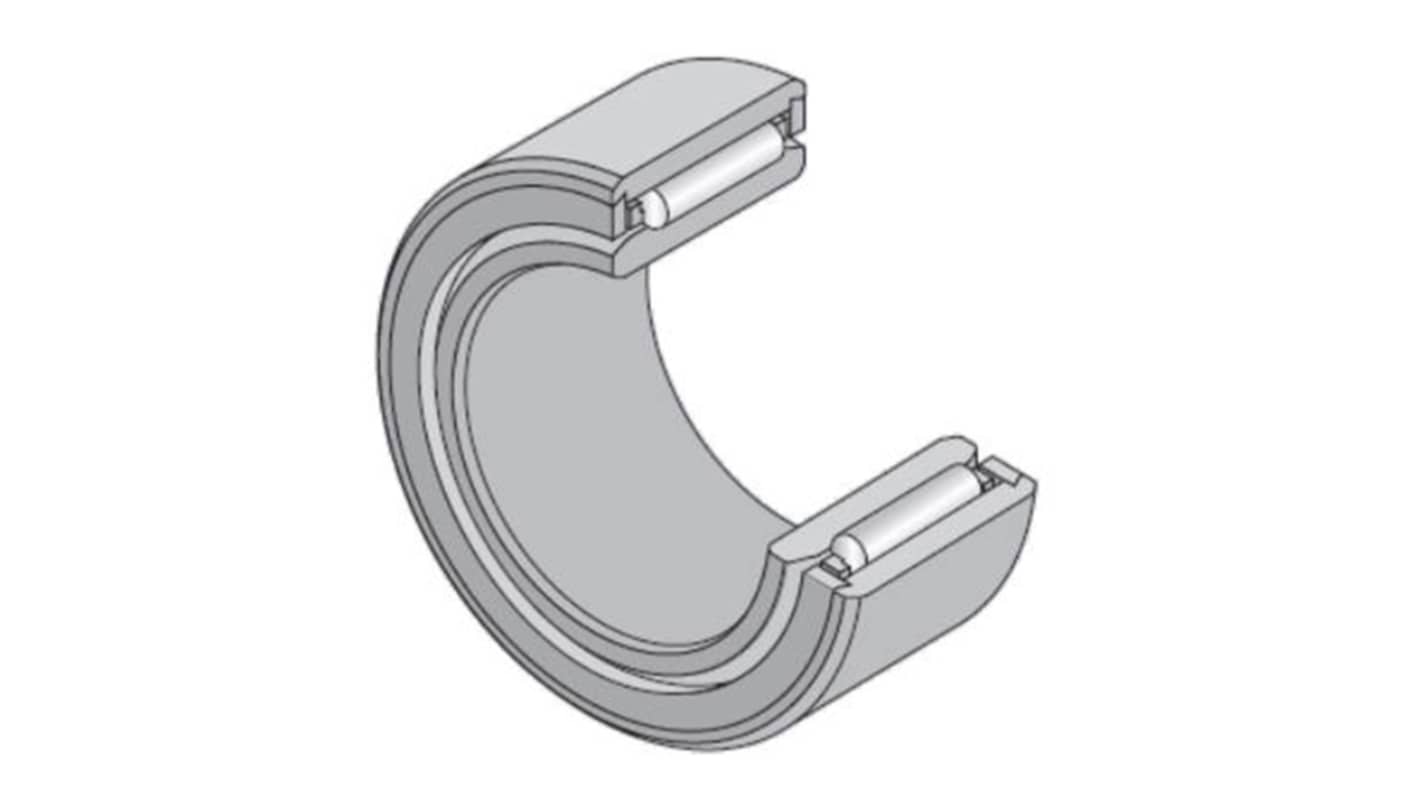

NTN NK9/16T2+1R6X9X16 6 mm I.D Needle Roller Bearing Needle Roller, Machined-ring, 16 mm O.D
- RS Stock No.:
- 455-344
- Mfr. Part No.:
- NK9/16T2+1R6X9X16
- Brand:
- NTN
Subtotal (1 unit)*
£12.76
(exc. VAT)
£15.31
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.76 |
*price indicative
- RS Stock No.:
- 455-344
- Mfr. Part No.:
- NK9/16T2+1R6X9X16
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 6 mm | |
| Race Width | 16mm | |
| Bore Type | Round | |
| Cage Material | Nylon | |
| Roller Material | Steel | |
| Internal Clearance | CN | |
| Outside Diameter | 16 mm | |
| Dynamic Load Rating | 5.5kN | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Maximum Speed - Oil | 30000rpm | |
| Maximum Speed - Grease | 20000rpm | |
| Limiting Speed | 30000rpm | |
| Bearing Material | High Carbon Chrome Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 6.4kN | |
| Series | NK9/16T2+1R6X9X16 | |
| Bearing Type | Needle Roller, Machined-ring | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 6 mm | ||
Race Width 16mm | ||
Bore Type Round | ||
Cage Material Nylon | ||
Roller Material Steel | ||
Internal Clearance CN | ||
Outside Diameter 16 mm | ||
Dynamic Load Rating 5.5kN | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Maximum Speed - Oil 30000rpm | ||
Maximum Speed - Grease 20000rpm | ||
Limiting Speed 30000rpm | ||
Bearing Material High Carbon Chrome Steel | ||
Number of Rows 1 | ||
Static Load Rating 6.4kN | ||
Series NK9/16T2+1R6X9X16 | ||
Bearing Type Needle Roller, Machined-ring | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing with machined-ring and inner ring is expertly designed for optimal performance in various applications. Featuring double-side plates and a lubrication hole, this bearing offers robust functionality and reliability. Constructed to meet high-quality standards, it ensures durability under demanding conditions, making it an ideal component for industrial machinery. The product is tailored for superior performance, accommodating radial clearance and precision class specifications, ideal for applications that require both accuracy and resilience. Its compact dimensions, paired with impressive load ratings, make it suitable for a wide range of uses, enhancing efficiency in mechanical assemblies.
Specially designed to minimise axial offset
Radial clearance class ensures excellent motion control
Robust construction suitable for various operating temperatures
Lightweight design aids in reducing overall machine weight
Double-side plates promote stability and reliability during operation
Compatible with various lubrication methods for diverse applications
