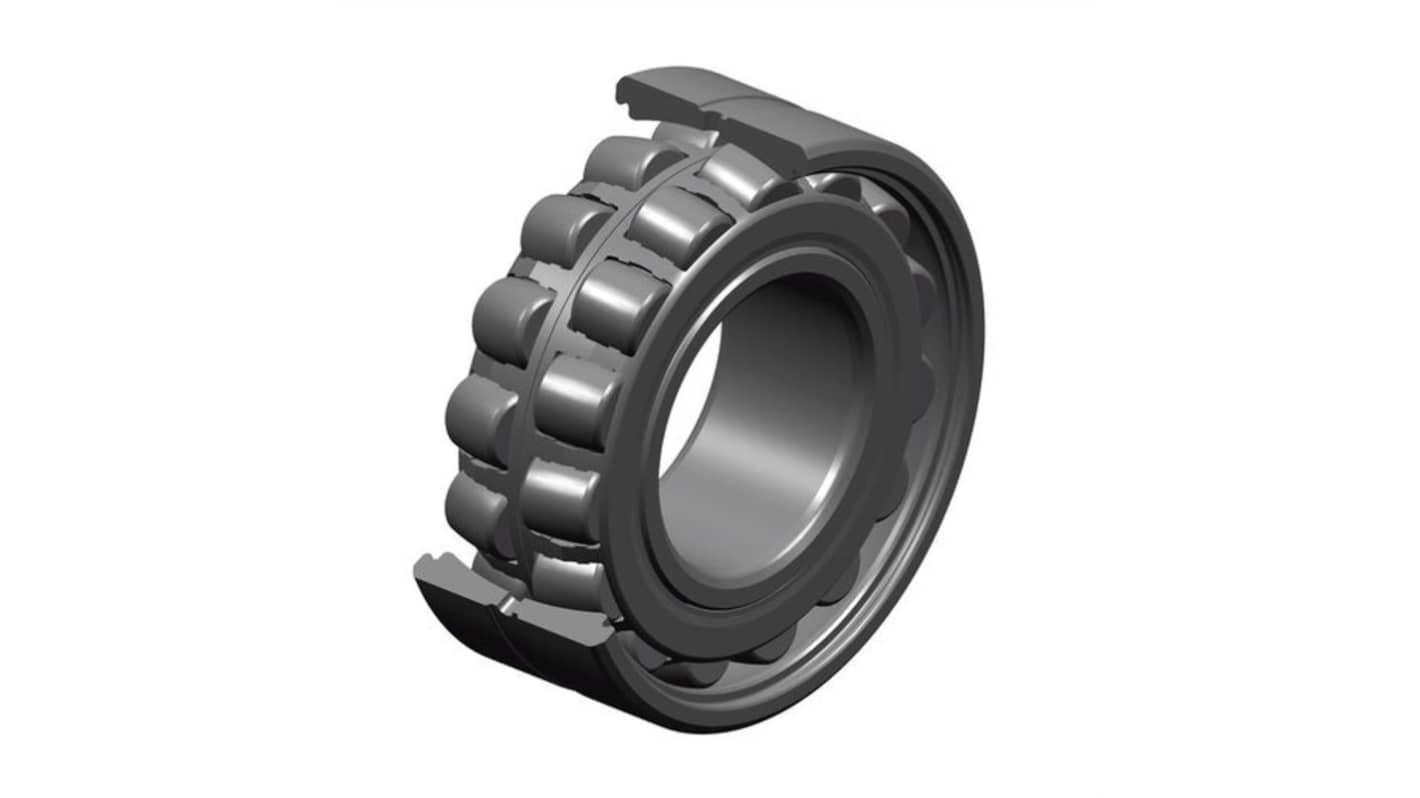

NTN 22210EAW33C4 Cylindrical 50 mm ID Spherical Roller Bearing, 90 mm OD
- RS Stock No.:
- 454-935
- Mfr. Part No.:
- 22210EAW33C4
- Brand:
- NTN
Subtotal (1 unit)*
£81.38
(exc. VAT)
£97.66
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £81.38 |
*price indicative
- RS Stock No.:
- 454-935
- Mfr. Part No.:
- 22210EAW33C4
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 50mm | |
| Race Width | 23mm | |
| Bore Type | Cylindrical | |
| Roller Material | Steel | |
| Number of Rows | 2 | |
| Dynamic Load Rating | 130kN | |
| Outside Diameter | 90mm | |
| Internal Clearance | C4 | |
| Static Load Rating | 124kN | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 9100rpm | |
| Series | 22210EAW33C4 | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 50mm | ||
Race Width 23mm | ||
Bore Type Cylindrical | ||
Roller Material Steel | ||
Number of Rows 2 | ||
Dynamic Load Rating 130kN | ||
Outside Diameter 90mm | ||
Internal Clearance C4 | ||
Static Load Rating 124kN | ||
Standards/Approvals RoHS | ||
Limiting Speed 9100rpm | ||
Series 22210EAW33C4 | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is engineered for superior performance in demanding applications. It features a robust design, ensuring durability and reliability under radial and axial loads. Crafted to meet high industry standards, this bearing excels in delivering optimal efficiency, making it a prime choice for various machinery and equipment. Its advanced technical specifications allow for smooth operation over an extensive temperature range, providing versatility across different environments. With a focus on quality and precision, this product embodies the trusted reputation of its manufacturer, ensuring you receive the best in engineering.
Designed to handle high radial and axial loads effectively
Optimised for a wide operating temperature range
Enhanced dynamic load capacity for improved performance
Low friction characteristics contribute to energy efficiency
Constructed from high-grade materials for durability
Easy installation facilitates quick replacements in machinery
Multiple lubrication holes to ensure effective maintenance
