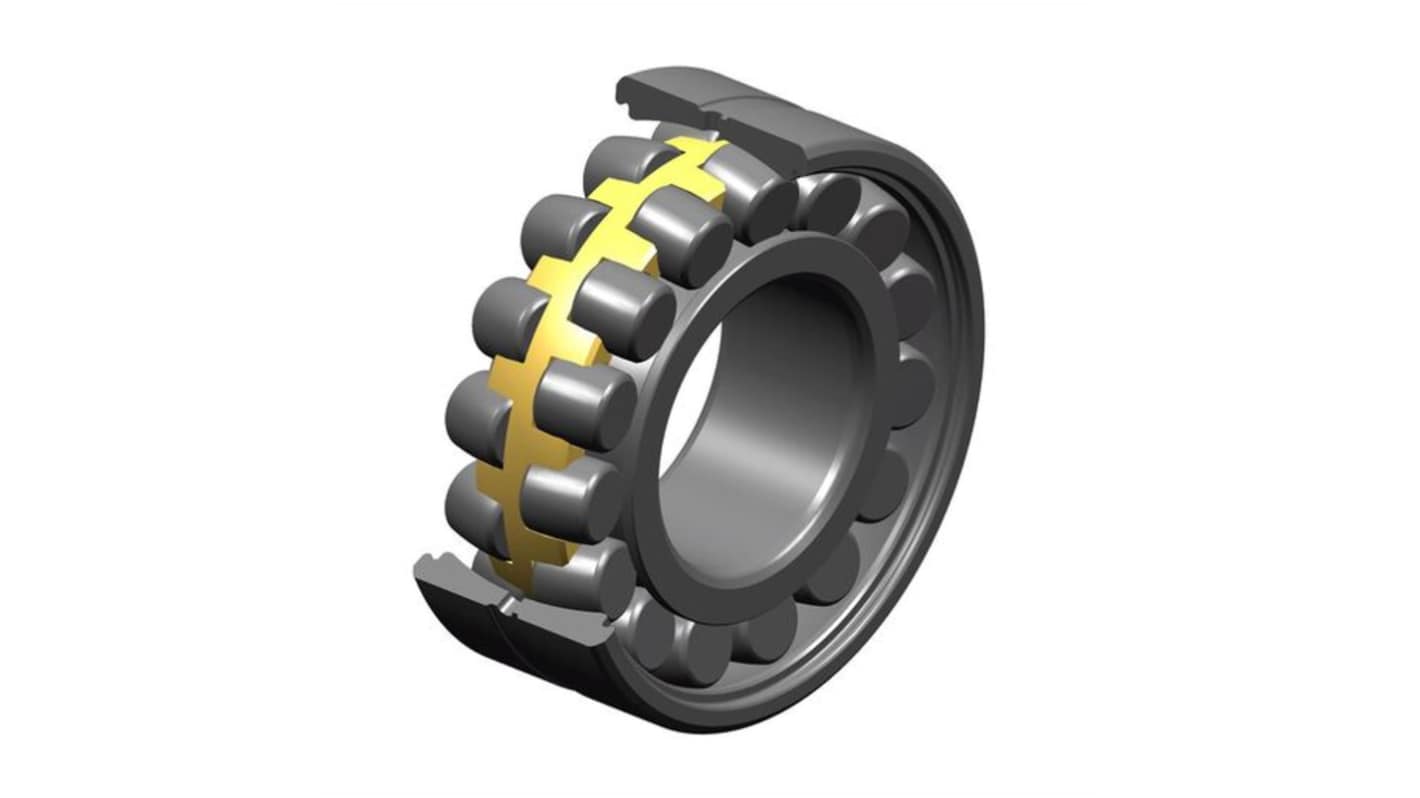

NTN 22316EF800 Cylindrical 80 mm I.D Spherical Roller Bearing, 170 mm O.D
- RS Stock No.:
- 454-819
- Mfr. Part No.:
- 22316EF800
- Brand:
- NTN
Subtotal (1 unit)*
£462.96
(exc. VAT)
£555.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £462.96 |
*price indicative
- RS Stock No.:
- 454-819
- Mfr. Part No.:
- 22316EF800
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 58mm | |
| Bore Type | Cylindrical | |
| Static Load Rating | 522kN | |
| Internal Clearance | C4 | |
| Limiting Speed | 3900rpm | |
| Series | 22316EF800 | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 541kN | |
| Outside Diameter | 170 mm | |
| Number of Rows | 2 | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 58mm | ||
Bore Type Cylindrical | ||
Static Load Rating 522kN | ||
Internal Clearance C4 | ||
Limiting Speed 3900rpm | ||
Series 22316EF800 | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 541kN | ||
Outside Diameter 170 mm | ||
Number of Rows 2 | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is expertly designed for vibratory applications, ensuring exceptional performance and reliability. With a robust one-piece machined cage and incorporating well-placed grooves with lubrication holes on the outer ring, it adeptly handles the demands of dynamic environments. The unique C4 class clearance guarantees superior radial clearance, making it ideal for applications where high loads and vibrations are a concern. This bearing not only promises resilience under extreme conditions but also features precise internal and external dimensions allowing for optimal compatibility with various systems. Manufactured by a trusted leader in the industry, this component is built to last and perform consistently, providing peace of mind for engineers and maintenance professionals alike.
Designed specifically for vibratory applications, enhancing durability
Includes a one-piece machined cage for improved structural integrity
Features lubrication holes on the outer ring for optimal maintenance
Offers a superior radial clearance class for managing high loads
Manufactured with precision for accurate dimensional adherence
Meets rigorous performance standards for reliability in challenging conditions
Facilitates easy installation and compatibility across various setups
