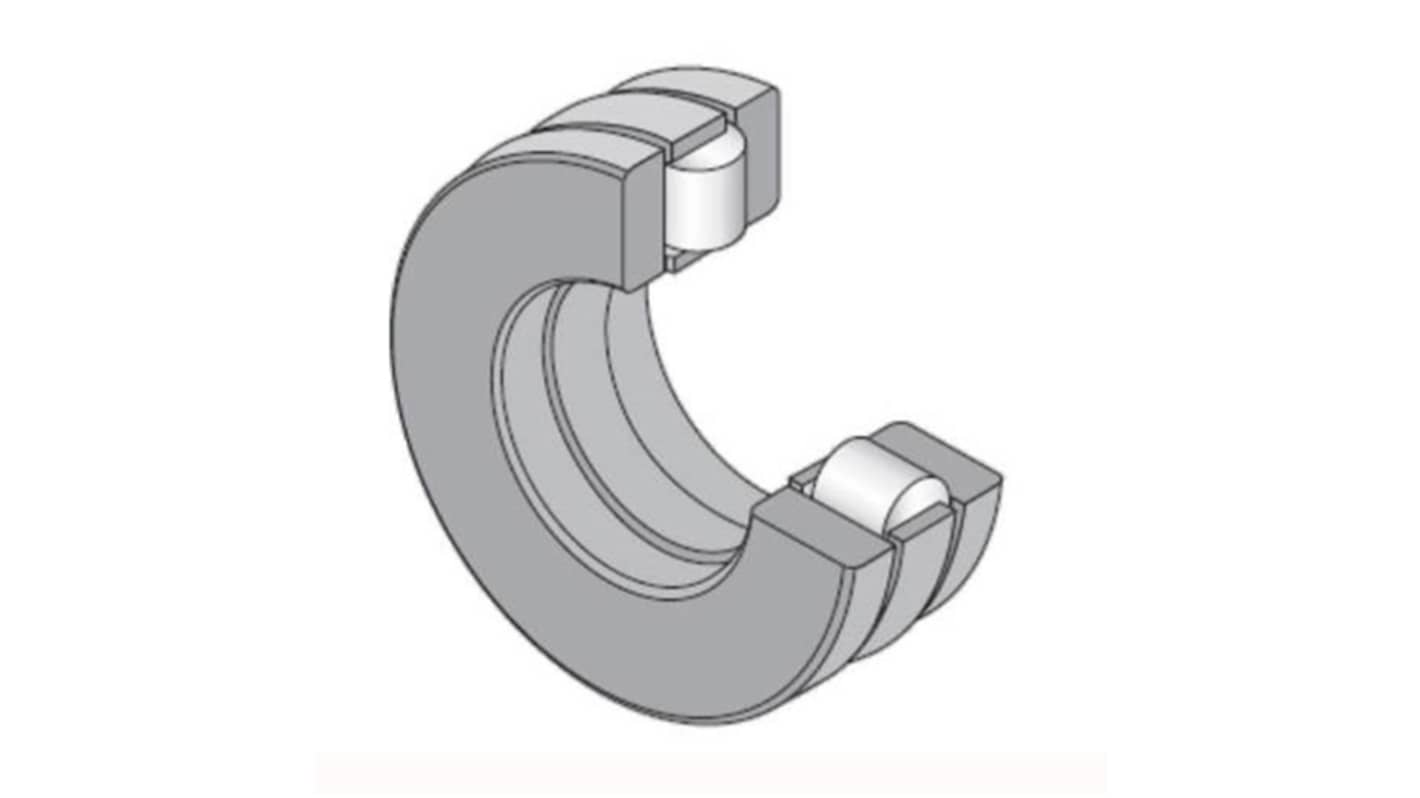

NTN 81120T2 Needle Roller, Thrust Cylindrical Roller 100 mm ID Thrust Roller Bearing, 135 mm OD
- RS Stock No.:
- 454-594
- Mfr. Part No.:
- 81120T2
- Brand:
- NTN
Subtotal (1 unit)*
£173.08
(exc. VAT)
£207.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £173.08 |
*price indicative
- RS Stock No.:
- 454-594
- Mfr. Part No.:
- 81120T2
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Thrust Roller Bearing | |
| Inside Diameter | 100 mm | |
| Race Width | 25mm | |
| Bore Type | Round | |
| Cage Material | Nylon | |
| Roller Material | Steel | |
| Limiting Speed | 2000rpm | |
| Maximum Speed - Grease | 500rpm | |
| Maximum Speed - Oil | 2000rpm | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 158kN | |
| Outside Diameter | 135 mm | |
| Series | 811 | |
| Static Load Rating | 555kN | |
| Number of Rows | 1 | |
| Bearing Material | High Carbon Chrome Steel | |
| Bearing Type | Needle Roller, Thrust Cylindrical Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Thrust Roller Bearing | ||
Inside Diameter 100 mm | ||
Race Width 25mm | ||
Bore Type Round | ||
Cage Material Nylon | ||
Roller Material Steel | ||
Limiting Speed 2000rpm | ||
Maximum Speed - Grease 500rpm | ||
Maximum Speed - Oil 2000rpm | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 158kN | ||
Outside Diameter 135 mm | ||
Series 811 | ||
Static Load Rating 555kN | ||
Number of Rows 1 | ||
Bearing Material High Carbon Chrome Steel | ||
Bearing Type Needle Roller, Thrust Cylindrical Roller | ||
- COO (Country of Origin):
- JP
The NTN Complete Thrust Bearing is designed to handle axial loads efficiently in various applications. It offers high load capacity with a compact design, ideal for limited radial space. The Thrust Cylindrical Roller Bearing is built to support heavy axial loads while maintaining smooth operation and durability.
Steel 100Cr6 rolling element material
Durable construction
High axial load capacity
