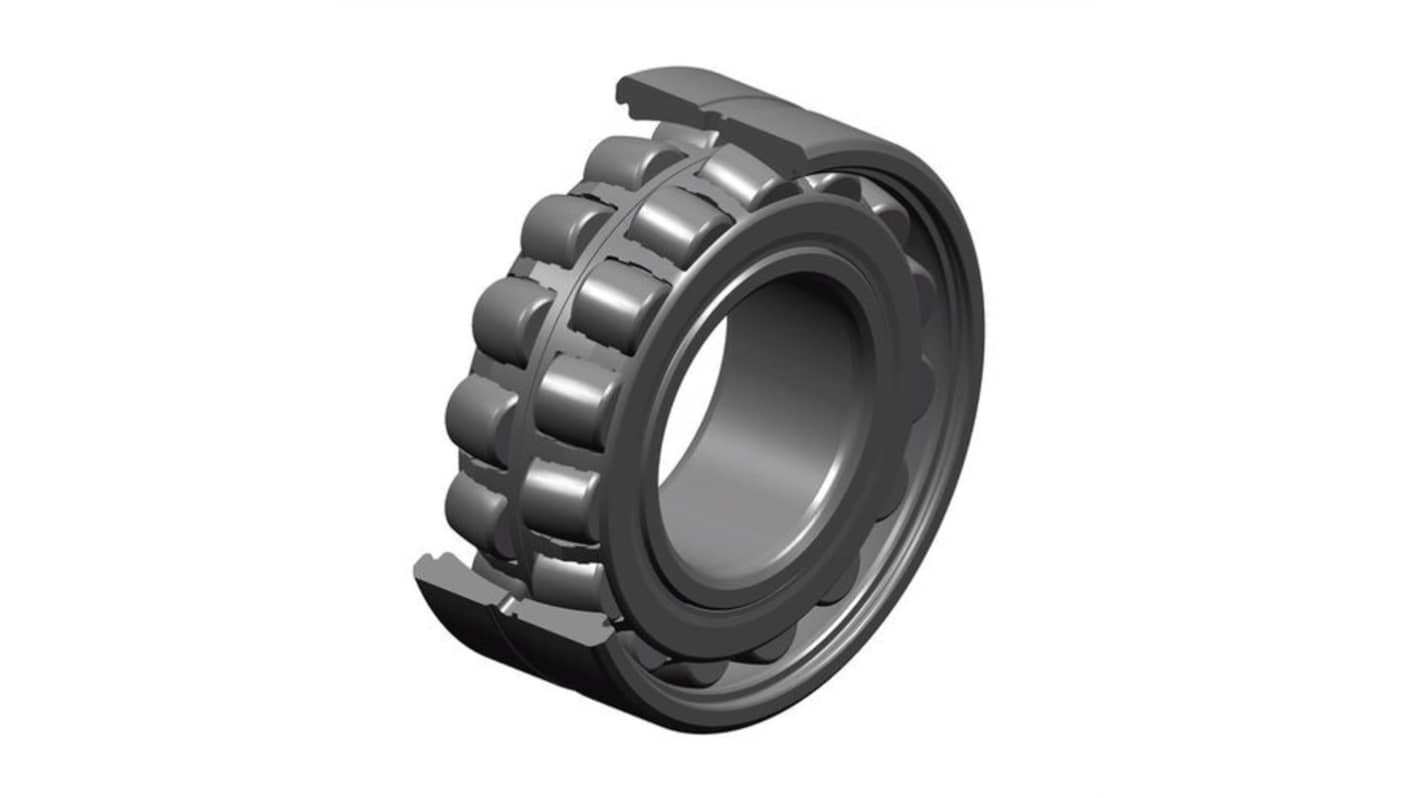

NTN 23120EAKW33 Taper 100 mm I.D Spherical Roller Bearing, 165 mm O.D
- RS Stock No.:
- 454-531
- Mfr. Part No.:
- 23120EAKW33
- Brand:
- NTN
Subtotal (1 unit)*
£335.29
(exc. VAT)
£402.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £335.29 |
*price indicative
- RS Stock No.:
- 454-531
- Mfr. Part No.:
- 23120EAKW33
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 100 mm | |
| Race Width | 52mm | |
| Bore Type | Taper | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Maximum Speed - Oil | 3900rpm | |
| Maximum Speed - Grease | 3200rpm | |
| Standards/Approvals | RoHS Certificate of Compliance | |
| Limiting Speed | 3900rpm | |
| Dynamic Load Rating | 464kN | |
| Outside Diameter | 165 mm | |
| Internal Clearance | CN | |
| Series | 23120EAKW33 | |
| Static Load Rating | 563kN | |
| Bearing Material | Through Hardened Steel | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 100 mm | ||
Race Width 52mm | ||
Bore Type Taper | ||
Cage Material Steel | ||
Roller Material Steel | ||
Maximum Speed - Oil 3900rpm | ||
Maximum Speed - Grease 3200rpm | ||
Standards/Approvals RoHS Certificate of Compliance | ||
Limiting Speed 3900rpm | ||
Dynamic Load Rating 464kN | ||
Outside Diameter 165 mm | ||
Internal Clearance CN | ||
Series 23120EAKW33 | ||
Static Load Rating 563kN | ||
Bearing Material Through Hardened Steel | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearings exemplified by this product are specifically engineered for optimal performance in challenging environments, offering unparalleled durability and efficiency. With an internal diameter of 100 mm and an external diameter of 165 mm, this bearing is designed to function seamlessly under a variety of load conditions. Its robust construction ensures longevity and reliability, making it an ideal choice for industrial applications. The intricate design features such as multiple lubrication holes and a structured internal geometry enhance the operational efficiency, ensuring smooth rotational movement and reducing wear over time. Additionally, it accommodates a wide temperature range, further attesting to its versatility in diverse settings.
Designed for high-load capacities amidst variable operating conditions
Integrates advanced lubrication technology for sustained performance
Exhibits excellent thermal resilience with operational temperatures from -40 °C to 200 °C
Constructed to support structural integrity with minimal maintenance requirements
Optimised for dynamic and static load management in various applications
Features a unique radial clearance class to ensure compatibility with specific assemblies
Robust materials selected to extend lifespan and reliability
Efficiently designed to accommodate rigorous industrial standards
