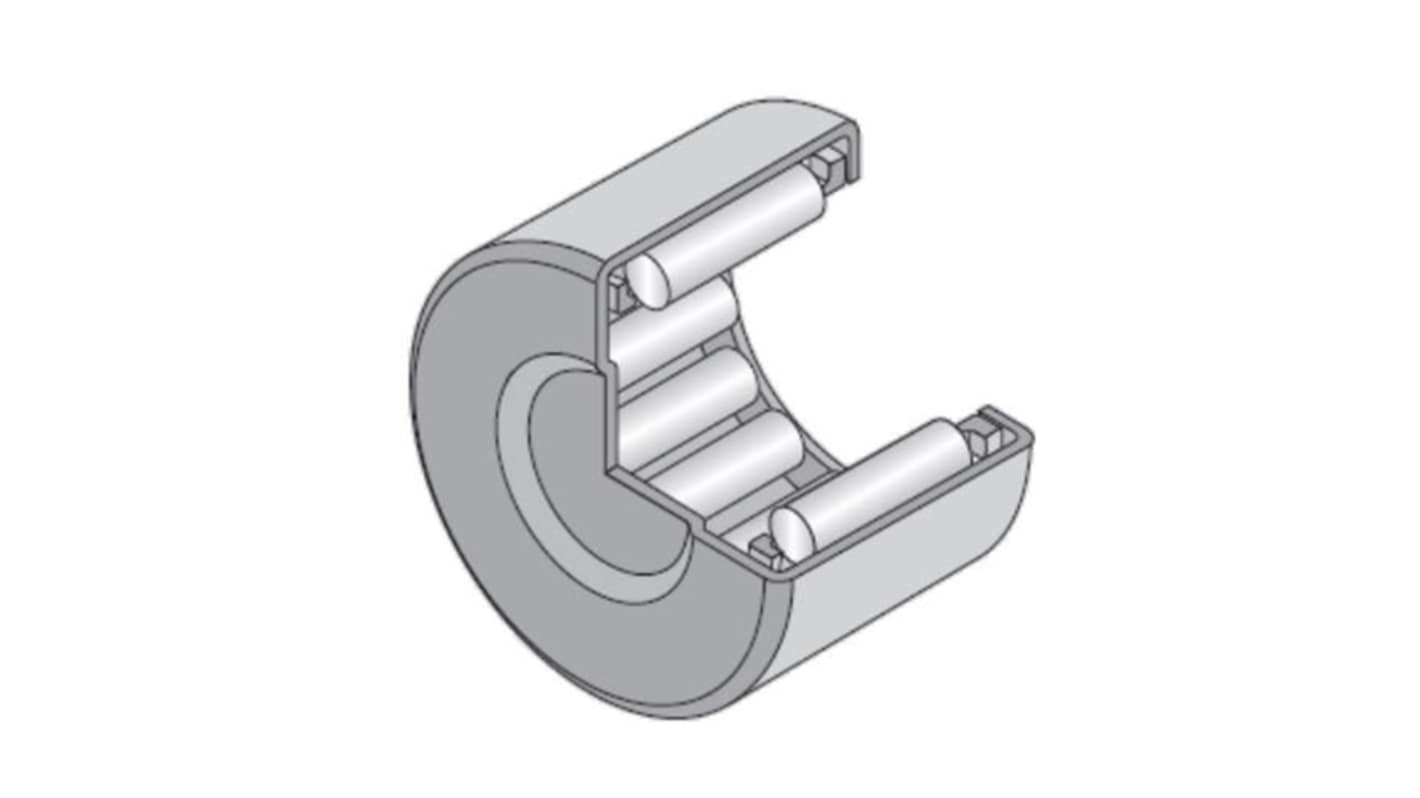

NTN BK0912 9 mm ID Roller Bearing Drawn Cup Needle Roller, 13 mm OD
- RS Stock No.:
- 454-475
- Mfr. Part No.:
- BK0912
- Brand:
- NTN
Subtotal (1 unit)*
£3.39
(exc. VAT)
£4.07
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £3.39 |
*price indicative
- RS Stock No.:
- 454-475
- Mfr. Part No.:
- BK0912
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Roller Bearing | |
| Inside Diameter | 9mm | |
| Race Width | 12mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Maximum Speed - Oil | 27000rpm | |
| Maximum Speed - Grease | 18000rpm | |
| Limiting Speed | 27000, 18000rpm | |
| Series | BK0912 | |
| Standards/Approvals | RoHS, ISO Class 0 | |
| End Type | Closed | |
| Dynamic Load Rating | 5.65kN | |
| Outside Diameter | 13mm | |
| Internal Clearance | CN | |
| Static Load Rating | 6.65kN | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Bearing Type | Drawn Cup Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Roller Bearing | ||
Inside Diameter 9mm | ||
Race Width 12mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Maximum Speed - Oil 27000rpm | ||
Maximum Speed - Grease 18000rpm | ||
Limiting Speed 27000, 18000rpm | ||
Series BK0912 | ||
Standards/Approvals RoHS, ISO Class 0 | ||
End Type Closed | ||
Dynamic Load Rating 5.65kN | ||
Outside Diameter 13mm | ||
Internal Clearance CN | ||
Static Load Rating 6.65kN | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
Bearing Type Drawn Cup Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Drawn cup needle roller bearing is engineered for reliable performance in various applications. Combining a robust closed end design with high-quality materials, this product offers excellent load capacity and durability. It ensures smooth operation under significant loads while maintaining dimensions that fit seamlessly into compact assemblies. With precise engineering , this bearing delivers reliability, ensuring longevity even in the most demanding conditions. Ideal for machinery requiring precision and efficiency, it’s a perfect choice for professionals seeking optimal performance.
Manufactured from high-grade steel, ensuring superior strength and durability
Optimised lubrication capabilities for extended service life
Capable of operating efficiently across a wide temperature range
Lightweight construction aids in reducing overall assembly weight
Easy installation process streamlines maintenance and replacements
