NTN HK0509FM 5 mm ID Needle Roller Thrust Bearing Drawn Cup Needle Roller, 9 mm OD
- RS Stock No.:
- 453-674
- Mfr. Part No.:
- HK0509FM
- Brand:
- NTN
Subtotal (1 unit)*
£2.94
(exc. VAT)
£3.53
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 64 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.94 |
*price indicative
- RS Stock No.:
- 453-674
- Mfr. Part No.:
- HK0509FM
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 5mm | |
| Race Width | 9mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Static Load Rating | 1.99kN | |
| Standards/Approvals | RoHS | |
| Series | HK0509FM | |
| Internal Clearance | CN | |
| End Type | Open | |
| Dynamic Load Rating | 2.45kN | |
| Maximum Speed - Oil | 40000rpm | |
| Outside Diameter | 9mm | |
| Maximum Speed - Grease | 27000rpm | |
| Limiting Speed | 27000, 40000rpm | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Bearing Type | Drawn Cup Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 5mm | ||
Race Width 9mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Static Load Rating 1.99kN | ||
Standards/Approvals RoHS | ||
Series HK0509FM | ||
Internal Clearance CN | ||
End Type Open | ||
Dynamic Load Rating 2.45kN | ||
Maximum Speed - Oil 40000rpm | ||
Outside Diameter 9mm | ||
Maximum Speed - Grease 27000rpm | ||
Limiting Speed 27000, 40000rpm | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Bearing Type Drawn Cup Needle Roller | ||
- COO (Country of Origin):
- JP

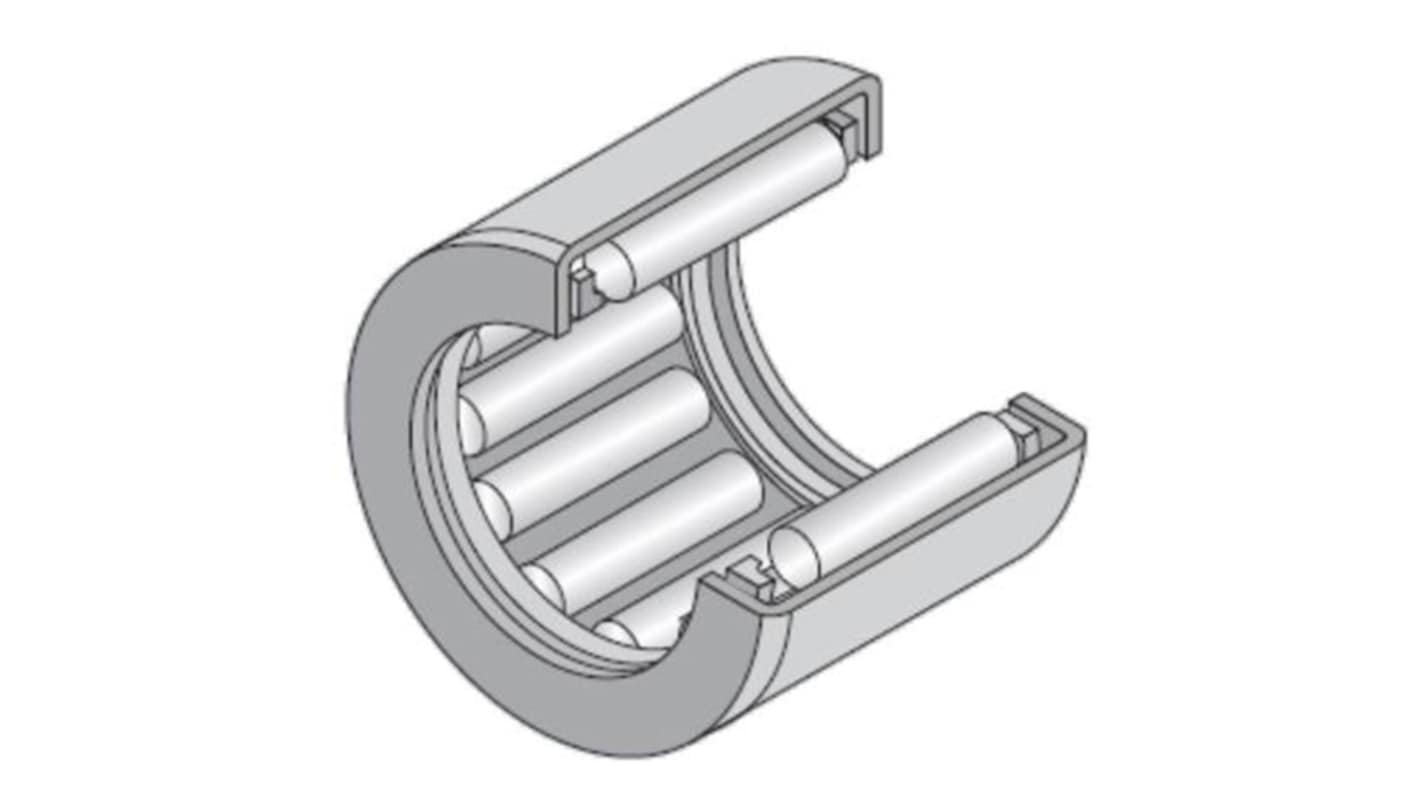

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
