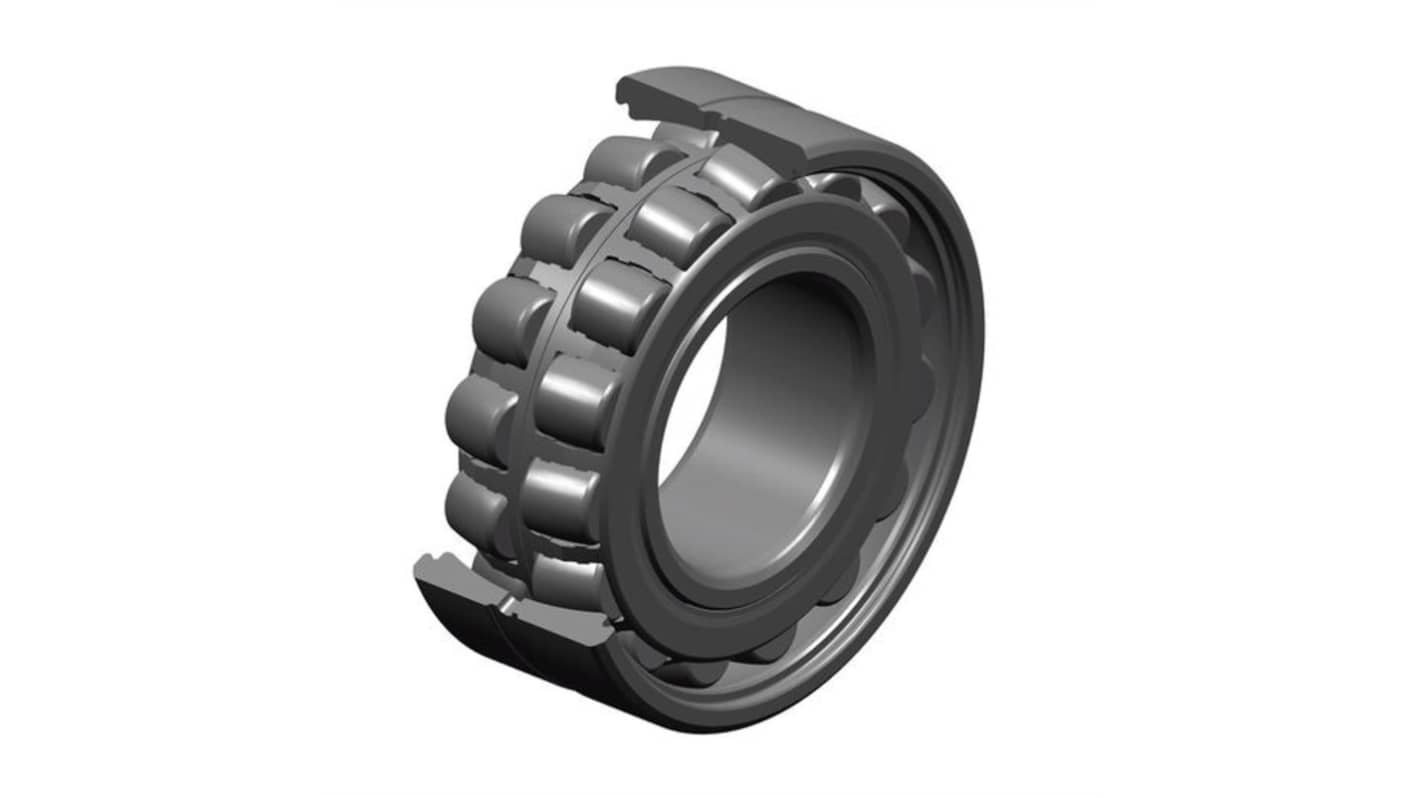

NTN 23220EAKW33C3 Taper 100 mm I.D Spherical Roller Bearing, 180 mm O.D
- RS Stock No.:
- 454-112
- Mfr. Part No.:
- 23220EAKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£417.99
(exc. VAT)
£501.59
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £417.99 |
*price indicative
- RS Stock No.:
- 454-112
- Mfr. Part No.:
- 23220EAKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 100 mm | |
| Race Width | 60.3mm | |
| Bore Type | Taper | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Limiting Speed | 3300rpm | |
| Bearing Material | Through Hardened Steel | |
| Maximum Speed - Grease | 2600rpm | |
| Maximum Speed - Oil | 3300rpm | |
| Standards/Approvals | RoHS Certificate of Compliance | |
| Static Load Rating | 661kN | |
| Dynamic Load Rating | 586kN | |
| Series | 23220EAKW33C3 | |
| Internal Clearance | C3 | |
| Outside Diameter | 180 mm | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 100 mm | ||
Race Width 60.3mm | ||
Bore Type Taper | ||
Roller Material Steel | ||
Cage Material Steel | ||
Limiting Speed 3300rpm | ||
Bearing Material Through Hardened Steel | ||
Maximum Speed - Grease 2600rpm | ||
Maximum Speed - Oil 3300rpm | ||
Standards/Approvals RoHS Certificate of Compliance | ||
Static Load Rating 661kN | ||
Dynamic Load Rating 586kN | ||
Series 23220EAKW33C3 | ||
Internal Clearance C3 | ||
Outside Diameter 180 mm | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is engineered to deliver exceptional performance in demanding applications. Designed for durability, this bearing features a robust construction that enhances its longevity and reliability under various operational conditions. With precise dimensions ensuring a perfect fit, its innovative design accommodates moderate misalignment while providing optimal load distribution. This bearing is an essential component for equipment requiring high load capacities and efficiency, making it ideal for industries that demand precision and performance. It combines technical excellence with an extensive operational temperature range, ensuring it meets the rigours of both high and low-temperature environments. When reliability counts, this bearing stands out as a trusted solution for your mechanical needs.
Robust design for superior durability in harsh conditions
Accommodates moderate misalignment to enhance operational efficiency
Optimised for high load capacities to support heavy machinery
Capable of operating in a wide temperature range for versatile applications
Lightweight yet strong construction to minimise energy loss during operations
Enhanced lubrication options with multiple holes for effective maintenance
Constructed with high-quality materials to withstand fatigue and wear
