NTN NA4913R 65 mm I.D Needle Roller Bearing Machined-ring, Needle Roller, 90 mm O.D
- RS Stock No.:
- 454-068
- Mfr. Part No.:
- NA4913R
- Brand:
- NTN
Subtotal (1 unit)*
£88.05
(exc. VAT)
£105.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.05 |
*price indicative
- RS Stock No.:
- 454-068
- Mfr. Part No.:
- NA4913R
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 65 mm | |
| Race Width | 25mm | |
| Bore Type | Cylindrical | |
| Roller Material | Steel | |
| Dynamic Load Rating | 62.5kN | |
| Internal Clearance | CN | |
| Series | NA4913R | |
| Static Load Rating | 112kN | |
| Number of Rows | 1 | |
| Outside Diameter | 90 mm | |
| Maximum Speed - Grease | 3700rpm | |
| Maximum Speed - Oil | 5500rpm | |
| Standards/Approvals | RoHS | |
| Bearing Type | Machined-ring, Needle Roller | |
| Race Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 65 mm | ||
Race Width 25mm | ||
Bore Type Cylindrical | ||
Roller Material Steel | ||
Dynamic Load Rating 62.5kN | ||
Internal Clearance CN | ||
Series NA4913R | ||
Static Load Rating 112kN | ||
Number of Rows 1 | ||
Outside Diameter 90 mm | ||
Maximum Speed - Grease 3700rpm | ||
Maximum Speed - Oil 5500rpm | ||
Standards/Approvals RoHS | ||
Bearing Type Machined-ring, Needle Roller | ||
Race Type Needle Roller | ||
- COO (Country of Origin):
- JP

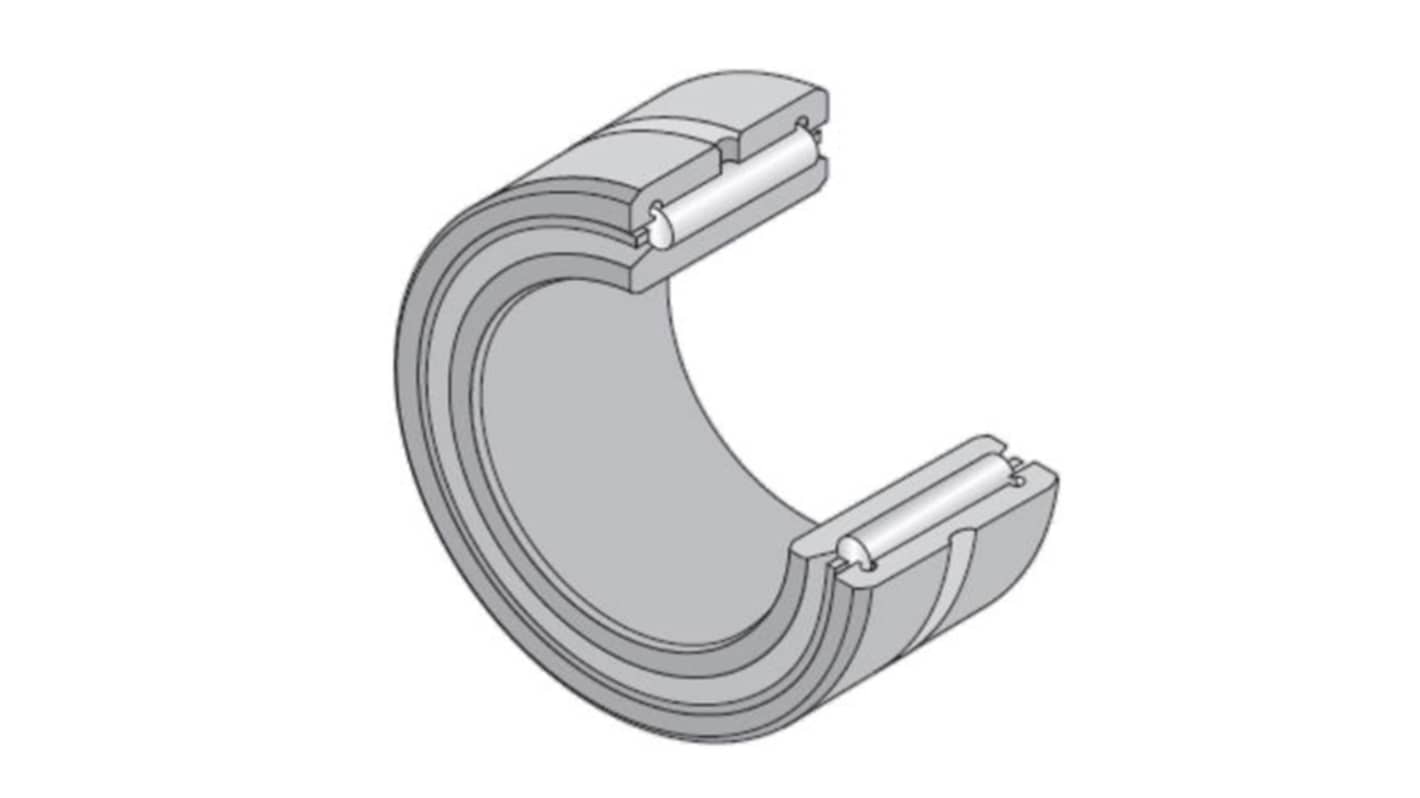

The NTN Needle roller bearing with machined ring and inner ring represents an exceptional blend of precision engineering and reliable performance. Designed for demanding applications, this bearing ensures optimal load-carrying capacity while maintaining a compact form factor. Its thoughtful design incorporates double-side ribs and lubrication holes, facilitating efficient fluid management. With an internal diameter of 65 mm and external diameter of 90 mm, this component delivers exceptional stability and alignment, making it ideal for a variety of mechanical settings. Whether in automotive or industrial machinery, this bearing is engineered to perform under stringent conditions, ensuring your operations run smoothly and efficiently.
Offers a maximum operating temperature of up to 120 °C for versatile use
Utilises a dynamic load rating of 62.5 kN for reliable performance
Designed to accommodate a minimum shoulder diameter of 70 mm
Incorporates a non-lubrication hole on the inner ring to suit various configurations
Provides a maximum fillet radius of 1 mm for improved fit in assemblies
Delivers high-speed capabilities with a grease lubrication limit up to 3700 tr/min
