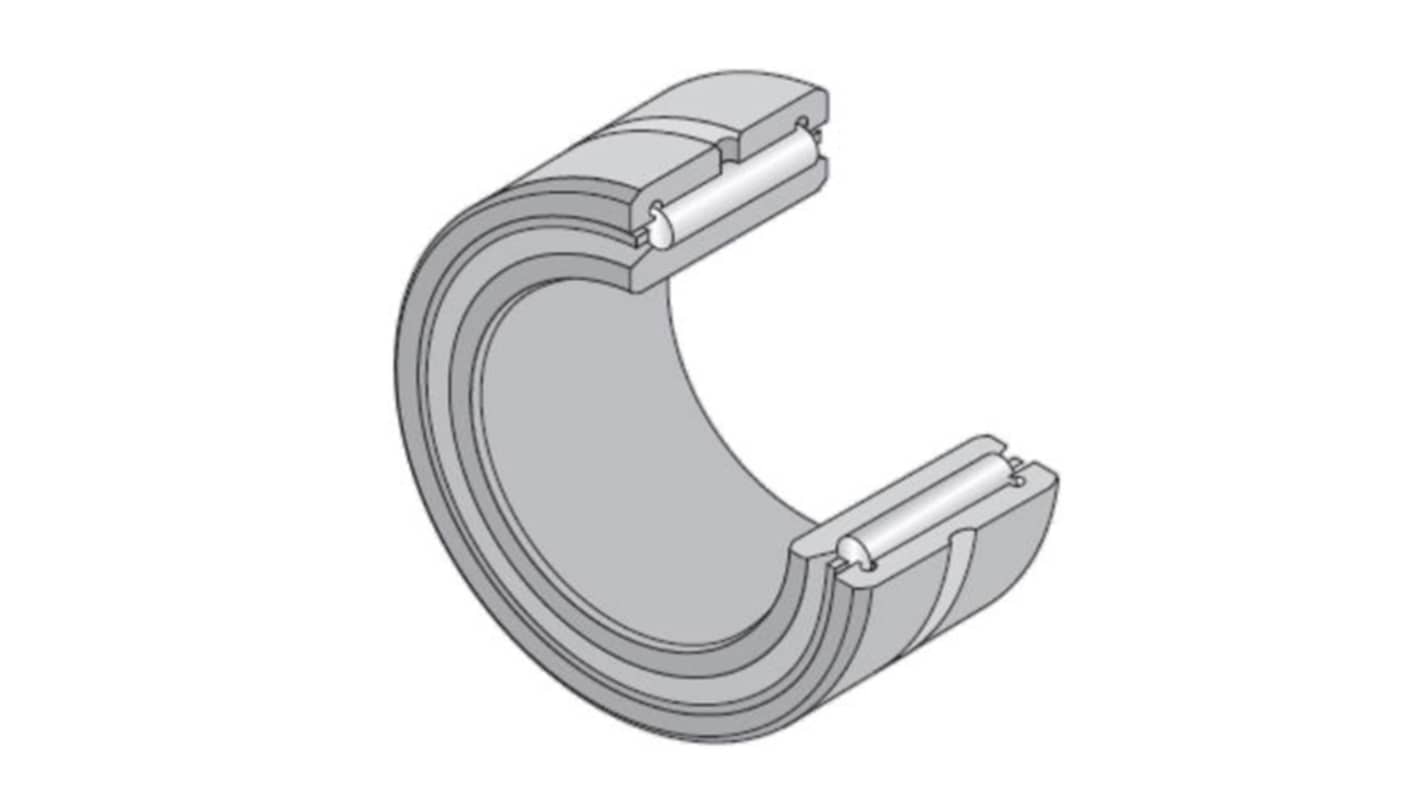

NTN NK73/35R+1R65X73X35 65 mm I.D Needle Roller Bearing Machined-ring, Needle Roller, 90 mm O.D
- RS Stock No.:
- 455-332
- Mfr. Part No.:
- NK73/35R+1R65X73X35
- Brand:
- NTN
Subtotal (1 unit)*
£93.07
(exc. VAT)
£111.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £93.07 |
*price indicative
- RS Stock No.:
- 455-332
- Mfr. Part No.:
- NK73/35R+1R65X73X35
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 65 mm | |
| Race Width | 35mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Bearing Material | High Carbon Chrome Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 156kN | |
| Series | NK73/35R+1R65X73X35 | |
| Internal Clearance | CN | |
| Outside Diameter | 90 mm | |
| Dynamic Load Rating | 76.5kN | |
| Maximum Speed - Oil | 5500rpm | |
| Limiting Speed | 5500rpm | |
| End Type | Open | |
| Maximum Speed - Grease | 3700rpm | |
| Standards/Approvals | RoHS | |
| Bearing Type | Machined-ring, Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 65 mm | ||
Race Width 35mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Bearing Material High Carbon Chrome Steel | ||
Number of Rows 1 | ||
Static Load Rating 156kN | ||
Series NK73/35R+1R65X73X35 | ||
Internal Clearance CN | ||
Outside Diameter 90 mm | ||
Dynamic Load Rating 76.5kN | ||
Maximum Speed - Oil 5500rpm | ||
Limiting Speed 5500rpm | ||
End Type Open | ||
Maximum Speed - Grease 3700rpm | ||
Standards/Approvals RoHS | ||
Bearing Type Machined-ring, Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing offers a reliable solution for diverse applications with its machined-ring design and inner ring. Engineered for durability and efficiency, it features double-side ribs and incorporates a lubrication hole for enhanced performance. The product combines a robust structure with precision engineering, ensuring optimal load performance and minimal friction. It’s ideal for scenarios where compactness and strength are paramount, ensuring your machinery runs smoothly under various operational conditions. With its versatile temperature range and high load ratings, this bearing stands out for manufacturers seeking quality and reliability in their components.
Designed to provide exceptional load-bearing capabilities
Manufactured to withstand wide temperature fluctuations
Equipped with double-side ribs for increased stability
Features a machined-ring for superior precision
Constructed from high-quality materials for longevity
Perfectly suited for both grease and oil lubrication methods
