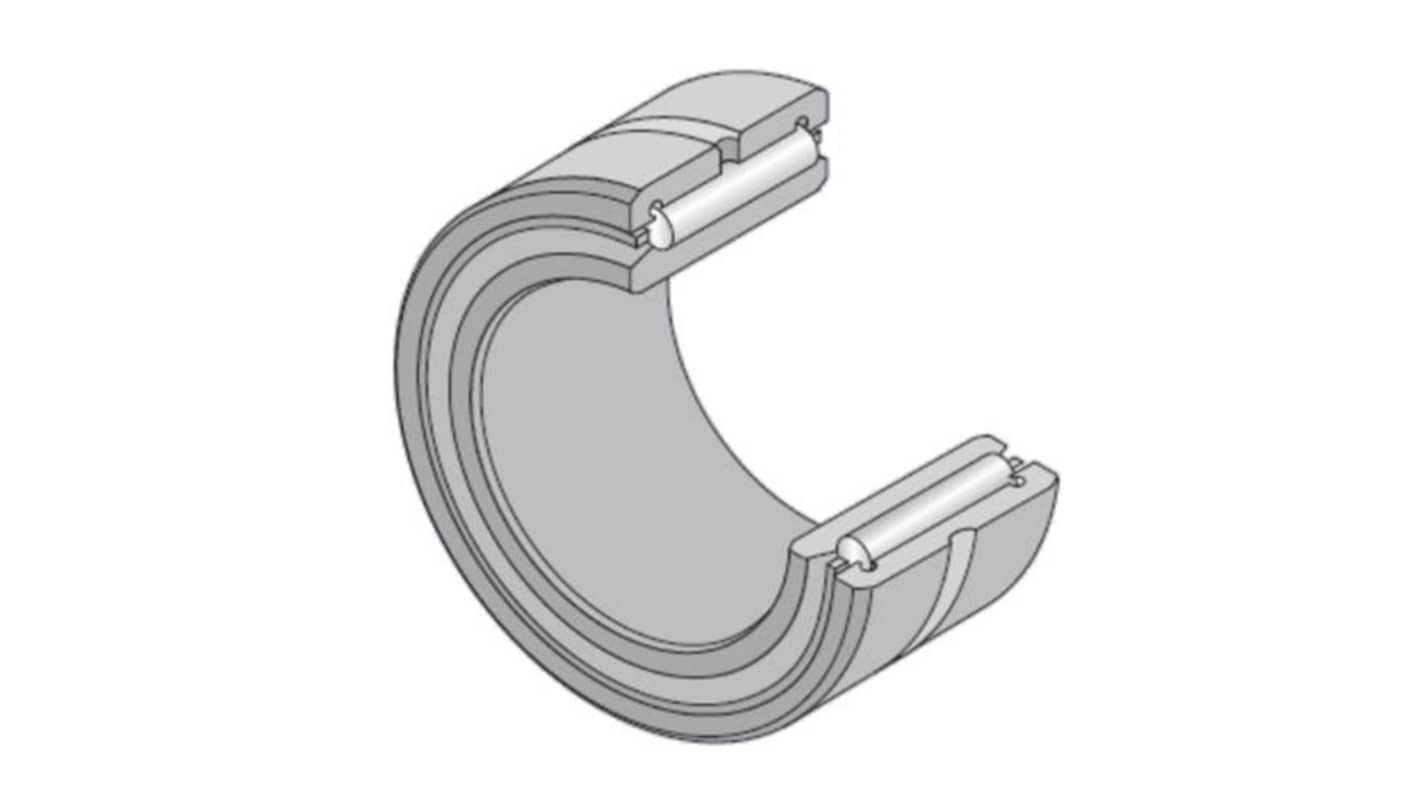

NTN NA4832 160 mm ID Roller Bearing Needle Roller, Machined-ring, 200 mm OD
- RS Stock No.:
- 454-046
- Mfr. Part No.:
- NA4832
- Brand:
- NTN
Subtotal (1 unit)*
£530.48
(exc. VAT)
£636.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £530.48 |
*price indicative
- RS Stock No.:
- 454-046
- Mfr. Part No.:
- NA4832
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Roller Bearing | |
| Inside Diameter | 160mm | |
| Race Width | 40mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Limiting Speed | 2300rpm | |
| Maximum Speed - Oil | 2300rpm | |
| Maximum Speed - Grease | 1500rpm | |
| Series | NA4832 | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 160kN | |
| Outside Diameter | 200mm | |
| Static Load Rating | 425kN | |
| Bearing Material | High Carbon Chrome Steel | |
| End Type | Open | |
| Internal Clearance | CN | |
| Number of Rows | 1 | |
| Bearing Type | Needle Roller, Machined-ring | |
| Race Type | Machine-Ring Needle Roller Bearing with Inner Ring | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Roller Bearing | ||
Inside Diameter 160mm | ||
Race Width 40mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Limiting Speed 2300rpm | ||
Maximum Speed - Oil 2300rpm | ||
Maximum Speed - Grease 1500rpm | ||
Series NA4832 | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 160kN | ||
Outside Diameter 200mm | ||
Static Load Rating 425kN | ||
Bearing Material High Carbon Chrome Steel | ||
End Type Open | ||
Internal Clearance CN | ||
Number of Rows 1 | ||
Bearing Type Needle Roller, Machined-ring | ||
Race Type Machine-Ring Needle Roller Bearing with Inner Ring | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing represents a blend of precision engineering and high-performance capability, making it an essential component for various applications. Designed with a machined-ring and an inner ring, it ensures excellent load-carrying capacity alongside reduced friction. The unique design incorporates double-side ribs that enhance stability and durability, ultimately contributing to longer service life. This product is ideal for machinery requiring reliable performance within stringent operating conditions. With the ability to accommodate dynamic and static loads effectively, it is suited for both grease and oil lubrication, making it versatile in its application.
Versatile lubrication options accommodate different environments
Constructed to withstand extreme temperatures
Optimised radial clearance class for improved operation
Compact design contributing to space-saving installations
Durable rolling element material for longevity
