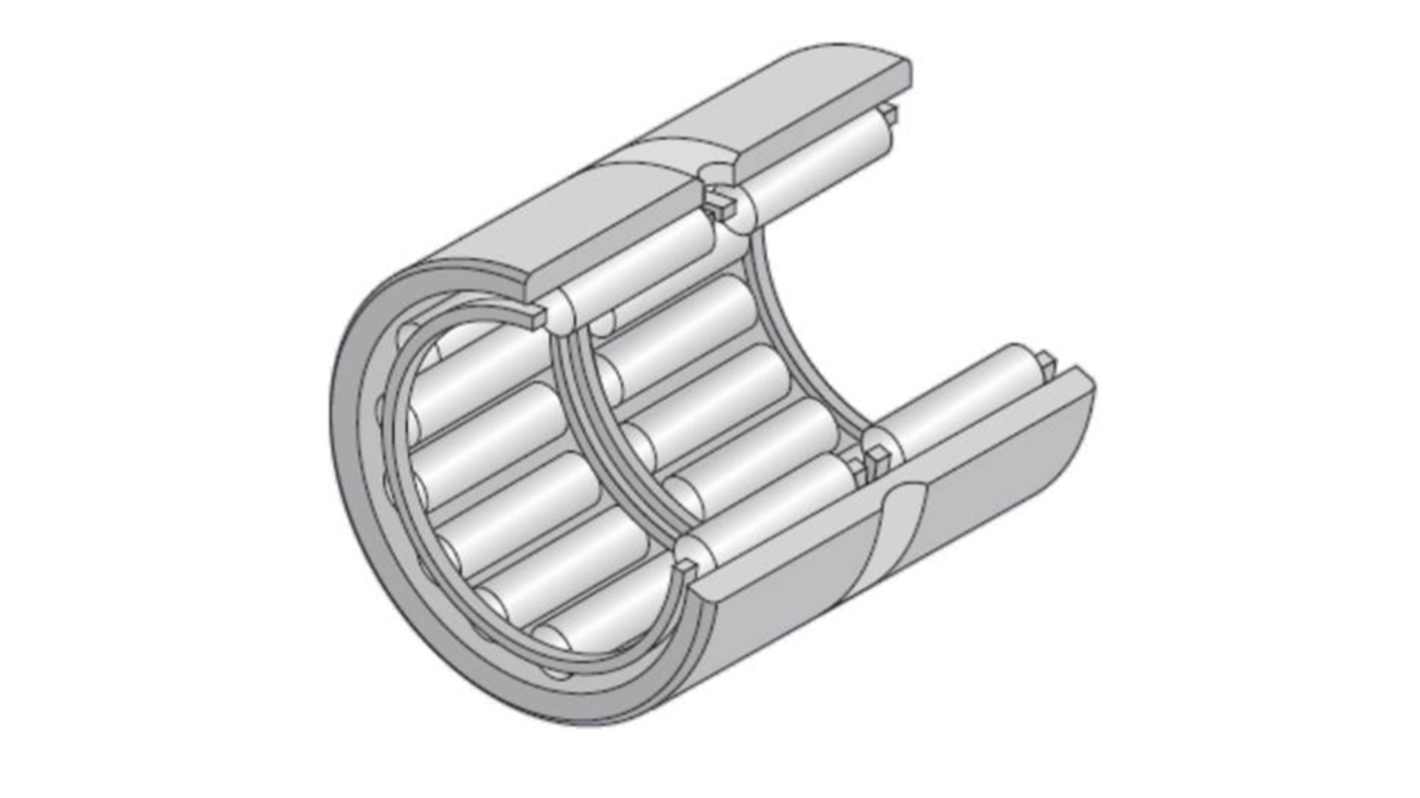

NTN RNA0-40X50X34ZW 40 mm ID Needle Roller Bearing Needle Roller, 50 mm OD
- RS Stock No.:
- 453-793
- Mfr. Part No.:
- RNA0-40X50X34ZW
- Brand:
- NTN
Subtotal (1 unit)*
£109.20
(exc. VAT)
£131.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £109.20 |
*price indicative
- RS Stock No.:
- 453-793
- Mfr. Part No.:
- RNA0-40X50X34ZW
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 40 mm | |
| Race Width | 34mm | |
| Roller Material | Bearing Steel | |
| Cage Material | Sheet Metal | |
| Maximum Speed - Grease | 6500rpm | |
| Limiting Speed | 10000rpm | |
| Static Load Rating | 83kN | |
| Outside Diameter | 50 mm | |
| Dynamic Load Rating | 37.5kN | |
| End Type | Open | |
| Maximum Speed - Oil | 10000rpm | |
| Standards/Approvals | RoHS | |
| Number of Rows | 2 | |
| Bearing Material | High Carbon Chrome Steel | |
| Internal Clearance | CN | |
| Series | RNA0 | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 40 mm | ||
Race Width 34mm | ||
Roller Material Bearing Steel | ||
Cage Material Sheet Metal | ||
Maximum Speed - Grease 6500rpm | ||
Limiting Speed 10000rpm | ||
Static Load Rating 83kN | ||
Outside Diameter 50 mm | ||
Dynamic Load Rating 37.5kN | ||
End Type Open | ||
Maximum Speed - Oil 10000rpm | ||
Standards/Approvals RoHS | ||
Number of Rows 2 | ||
Bearing Material High Carbon Chrome Steel | ||
Internal Clearance CN | ||
Series RNA0 | ||
Bearing Type Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing is expertly designed to deliver unmatched reliability and performance in various applications. Featuring a machined-ring, this separable bearing operates without an inner ring, offering straightforward assembly and maintenance. Ideal for demanding environments, it ensures optimal load distribution and stability, making it a perfect choice for machinery that requires precision and durability. With a focus on innovative engineering, this product upholds high manufacturing standards, promising both efficiency and longevity in operation. Its compact size and robust design make it suitable for different industrial settings, where performance is essential.
Compact design allows for efficient use of space in machinery
Precision class ensures accuracy in application functionality
Includes lubrication provisions for enhanced maintenance
Traceable reference number ensures proper identification
