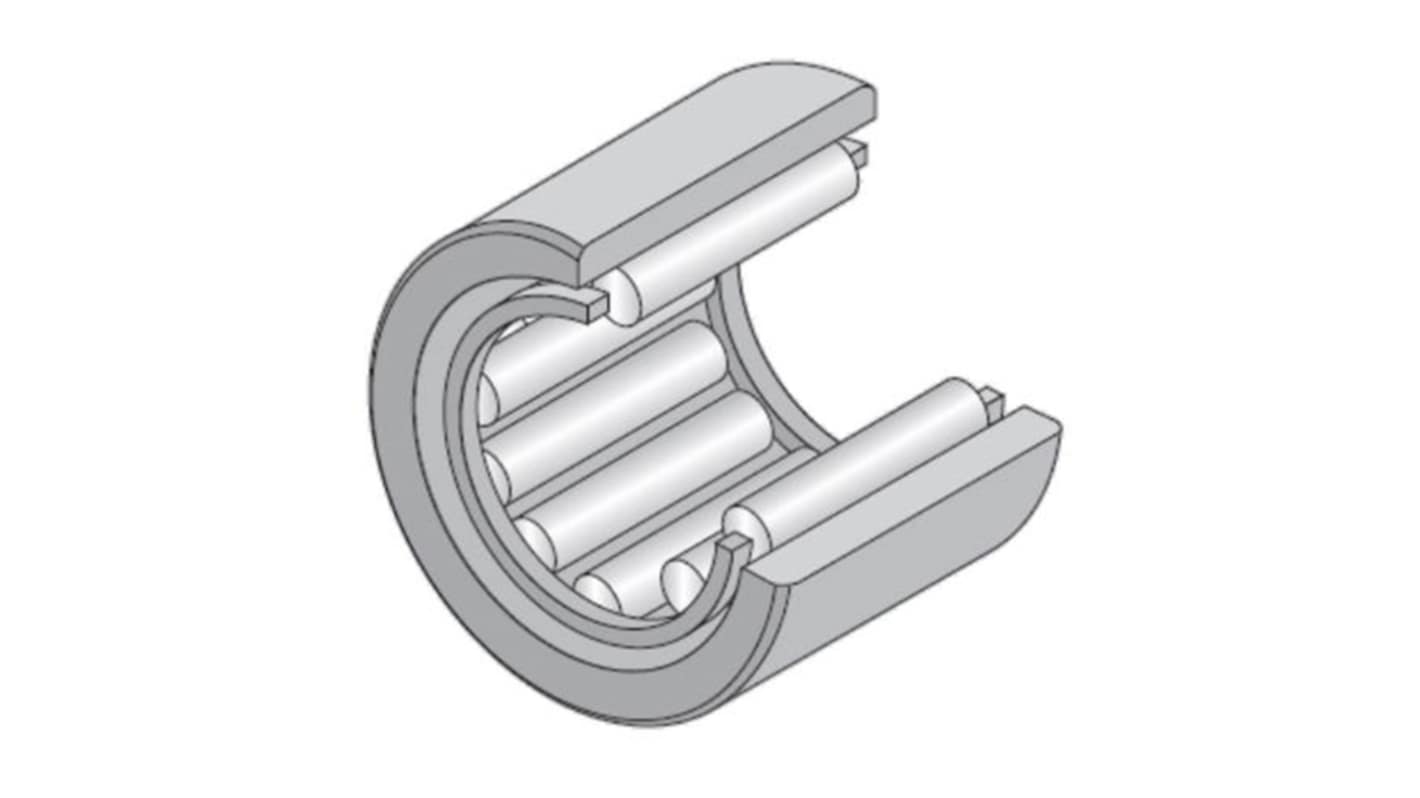

NTN RNA0-15X23X13 15 mm I.D Needle Roller Bearing Needle Roller, 23 mm O.D
- RS Stock No.:
- 455-353
- Mfr. Part No.:
- RNA0-15X23X13
- Brand:
- NTN
Subtotal (1 unit)*
£16.85
(exc. VAT)
£20.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.85 |
*price indicative
- RS Stock No.:
- 455-353
- Mfr. Part No.:
- RNA0-15X23X13
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 15 mm | |
| Race Width | 13mm | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Bearing Material | High Carbon Chrome Steel | |
| Static Load Rating | 10.2kN | |
| Series | RNA0-15X23X13 | |
| Internal Clearance | CN | |
| Number of Rows | 1 | |
| Maximum Speed - Grease | 15000rpm | |
| Limiting Speed | 23000rpm | |
| Outside Diameter | 23 mm | |
| Maximum Speed - Oil | 23000rpm | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 8.25kN | |
| Race Type | Machine-Ring | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 15 mm | ||
Race Width 13mm | ||
Roller Material Steel | ||
Cage Material Steel | ||
Bearing Material High Carbon Chrome Steel | ||
Static Load Rating 10.2kN | ||
Series RNA0-15X23X13 | ||
Internal Clearance CN | ||
Number of Rows 1 | ||
Maximum Speed - Grease 15000rpm | ||
Limiting Speed 23000rpm | ||
Outside Diameter 23 mm | ||
Maximum Speed - Oil 23000rpm | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 8.25kN | ||
Race Type Machine-Ring | ||
Bearing Type Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing, featuring a machined-ring design, stands out for its separable construction that allows for easier assembly and maintenance. Designed without an inner ring, it is engineered for optimum performance in various applications, ensuring reliability under dynamic conditions. Its compact dimensions make it suitable for limited spaces while maintaining a robust load capacity. The innovative design integrates a lubrication hole on the outer ring, enhancing its operating life by facilitating proper grease distribution. This bearing's precision and attention to detail exemplify ntn's commitment to high-quality engineering, making it an essential choice for industries requiring dependable performance.
Lightweight design aids in reducing overall system weight
Separable construction facilitates easier handling and installation
Optimised for high-speed applications with impressive load ratings
Expanded temperature range caters to diverse operational environments
Innovative lubrication access improves maintenance efficiency
Constructed from high-quality steel for enhanced durability and wear resistance
