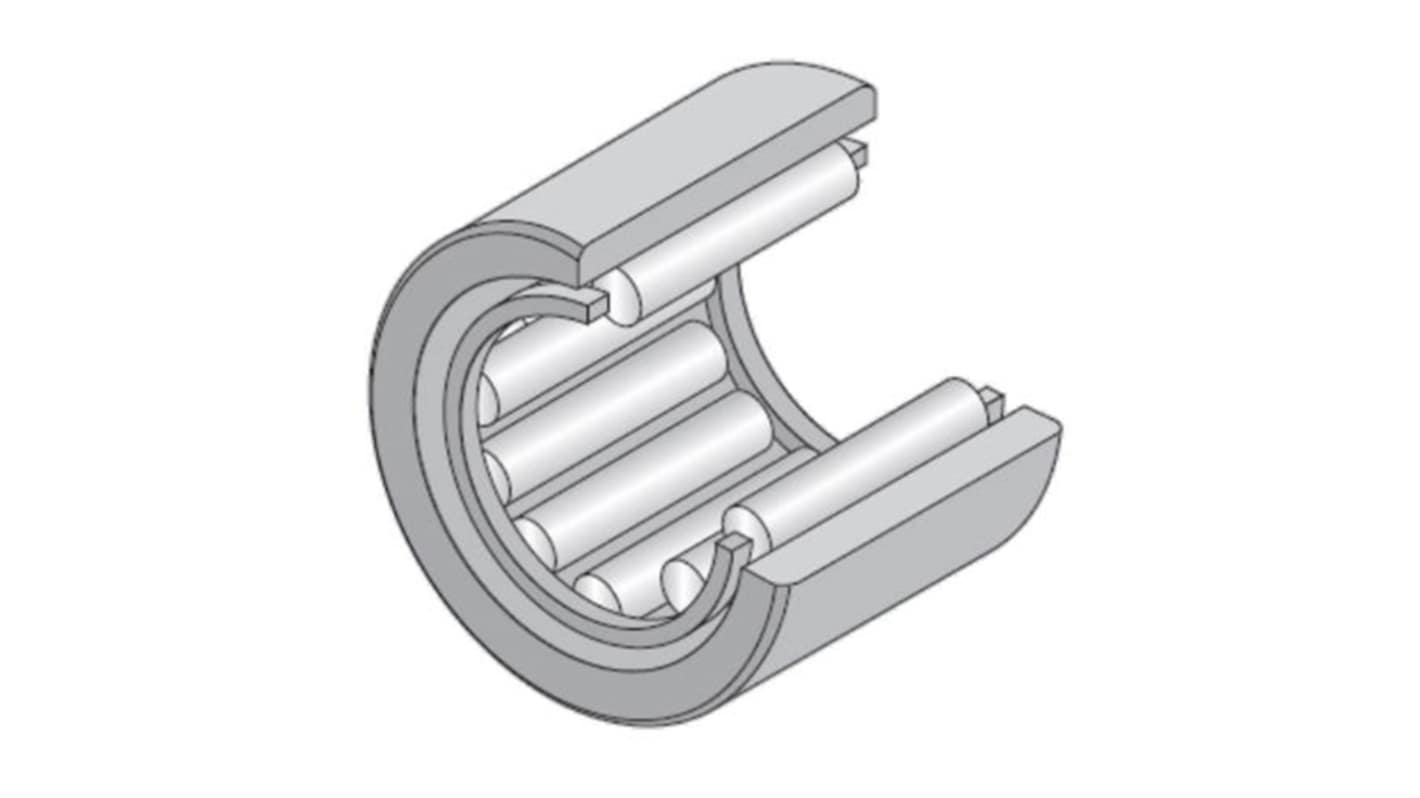

NTN RNA0-6X13X8T2 6 mm ID Needle Roller Bearing Needle Roller, 13 mm OD
- RS Stock No.:
- 453-792
- Mfr. Part No.:
- RNA0-6X13X8T2
- Brand:
- NTN
Subtotal (1 unit)*
£8.62
(exc. VAT)
£10.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.62 |
*price indicative
- RS Stock No.:
- 453-792
- Mfr. Part No.:
- RNA0-6X13X8T2
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 6 mm | |
| Race Width | 8mm | |
| Cage Material | Polyamide | |
| Roller Material | Steel | |
| Dynamic Load Rating | 2.66kN | |
| End Type | Open | |
| Outside Diameter | 13 mm | |
| Series | RNA0-6X13X8T2 | |
| Static Load Rating | 2.28kN | |
| Bearing Material | High Carbon Chrome Steel | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Limiting Speed | 37000rpm | |
| Maximum Speed - Grease | 25000rpm | |
| Maximum Speed - Oil | 37000rpm | |
| Standards/Approvals | RoHS | |
| Bearing Type | Needle Roller | |
| Race Type | Machine-Ring | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 6 mm | ||
Race Width 8mm | ||
Cage Material Polyamide | ||
Roller Material Steel | ||
Dynamic Load Rating 2.66kN | ||
End Type Open | ||
Outside Diameter 13 mm | ||
Series RNA0-6X13X8T2 | ||
Static Load Rating 2.28kN | ||
Bearing Material High Carbon Chrome Steel | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Limiting Speed 37000rpm | ||
Maximum Speed - Grease 25000rpm | ||
Maximum Speed - Oil 37000rpm | ||
Standards/Approvals RoHS | ||
Bearing Type Needle Roller | ||
Race Type Machine-Ring | ||
- COO (Country of Origin):
- JP
The NTN needle roller is bearing designed to deliver unmatched performance in machinery applications. Crafted with meticulous attention to detail, this bearing features a machined-ring design that allows for seamless integration into various systems, providing a reliable connection without the need for an inner ring. Its durability and high load ratings make it an essential component for industries that demand longevity and efficiency. With a compact design, this bearing is ideal for limited spaces while ensuring optimal functionality at both low and high operating temperatures. Experience enhanced reliability and a reduction in maintenance with this expertly designed bearing that meets the needs of modern engineering challenges.
Designed for both grease and oil lubrication systems
Wide temperature operating range for diverse applications
Constructed with high-quality 100Cr6 steel for enhanced durability
Separable design simplifies maintenance and replacement
