NTN NK10/12T2+1R7X10X12 7 mm I.D Needle Roller Bearing Machined-ring, Needle Roller, 17 mm O.D
- RS Stock No.:
- 453-763
- Mfr. Part No.:
- NK10/12T2+1R7X10X12
- Brand:
- NTN
Subtotal (1 unit)*
£12.04
(exc. VAT)
£14.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.04 |
*price indicative
- RS Stock No.:
- 453-763
- Mfr. Part No.:
- NK10/12T2+1R7X10X12
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 7 mm | |
| Race Width | 12mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Nylon | |
| Maximum Speed - Grease | 19000rpm | |
| Maximum Speed - Oil | 28000rpm | |
| Limiting Speed | 28000rpm | |
| Outside Diameter | 17 mm | |
| Internal Clearance | CN | |
| Series | NK10/12T2+1R7X10X12 | |
| End Type | Open | |
| Static Load Rating | 5.1kN | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 4.55kN | |
| Bearing Material | High Carbon Chrome Steel | |
| Number of Rows | 1 | |
| Bearing Type | Machined-ring, Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 7 mm | ||
Race Width 12mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Nylon | ||
Maximum Speed - Grease 19000rpm | ||
Maximum Speed - Oil 28000rpm | ||
Limiting Speed 28000rpm | ||
Outside Diameter 17 mm | ||
Internal Clearance CN | ||
Series NK10/12T2+1R7X10X12 | ||
End Type Open | ||
Static Load Rating 5.1kN | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 4.55kN | ||
Bearing Material High Carbon Chrome Steel | ||
Number of Rows 1 | ||
Bearing Type Machined-ring, Needle Roller | ||
- COO (Country of Origin):
- JP

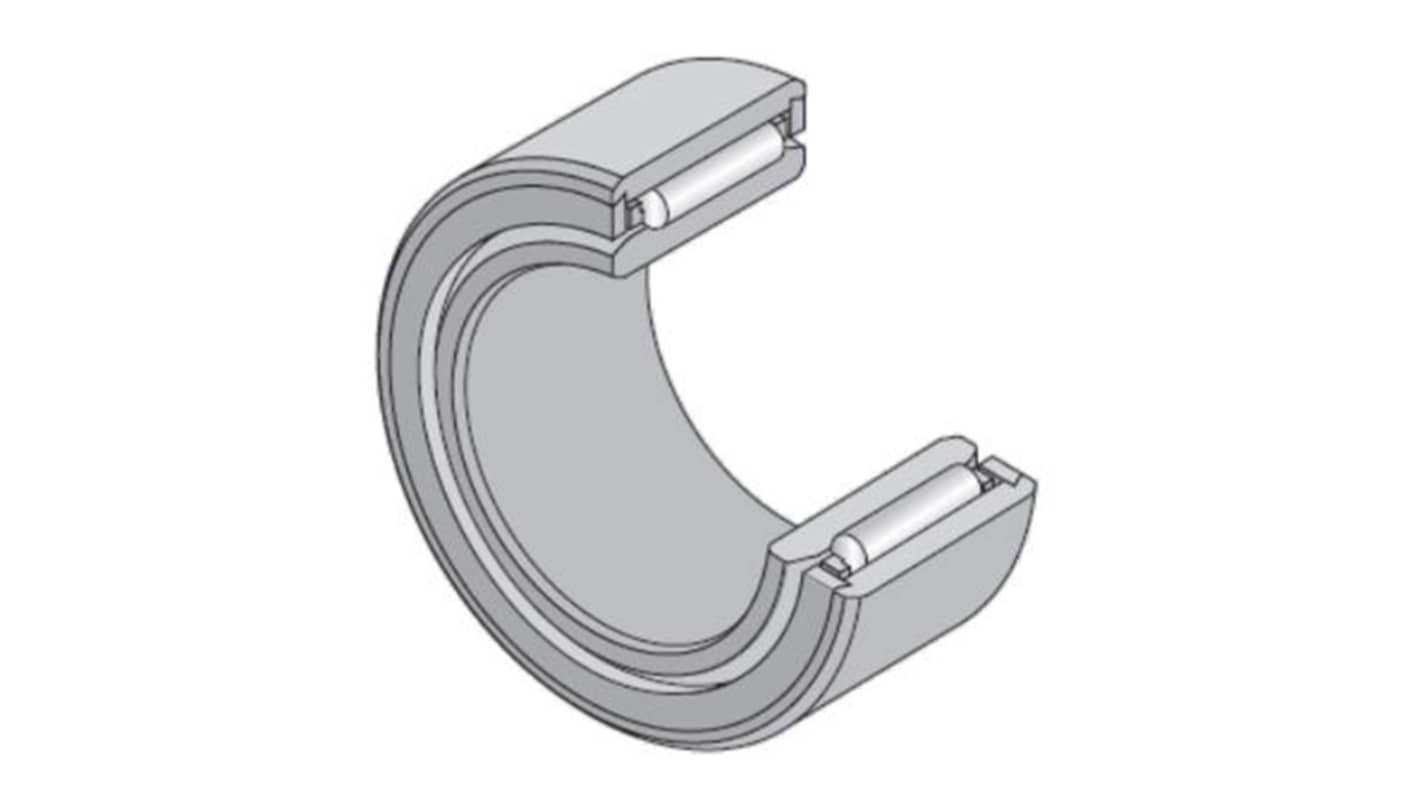

The NTN Needle roller bearing with a machined ring and inner ring is an innovative solution tailored for superior performance in various industrial contexts. This product is specifically designed to accommodate high load ratings while maintaining precision. Its robust structure features dual-side plates and a lubrication hole, ensuring long-lasting operation. Ideal for applications requiring minimal axial play and reliable rotational capability, it offers a blend of durability and efficiency. This needle roller bearing effectively minimises the overall size and weight of machinery while maximising performance, making it essential for both standard and specialised engineering tasks.
Crafted from high-quality rolling element material for improved longevity
Radial clearance class allows for precision movement in various applications
Features a minimal operating temperature range for operational flexibility
Engineered to minimise axial offset, ensuring superior functionality
