NTN HK2520D 25 mm ID Needle Roller Thrust Bearing Drawn Cup Needle Roller, 32 mm OD
- RS Stock No.:
- 453-695
- Mfr. Part No.:
- HK2520D
- Brand:
- NTN
Subtotal (1 unit)*
£5.43
(exc. VAT)
£6.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 24 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.43 |
*price indicative
- RS Stock No.:
- 453-695
- Mfr. Part No.:
- HK2520D
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 25mm | |
| Race Width | 20mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Bearing Material | Steel | |
| Dynamic Load Rating | 20.3kN | |
| Maximum Speed - Grease | 6500rpm | |
| Internal Clearance | CN | |
| Static Load Rating | 33kN | |
| Outside Diameter | 32mm | |
| Number of Rows | 1 | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Series | HK2520D | |
| Limiting Speed | 9500rpm | |
| Maximum Speed - Oil | 9500rpm | |
| Race Type | Drawn Cup | |
| Bearing Type | Drawn Cup Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 25mm | ||
Race Width 20mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Bearing Material Steel | ||
Dynamic Load Rating 20.3kN | ||
Maximum Speed - Grease 6500rpm | ||
Internal Clearance CN | ||
Static Load Rating 33kN | ||
Outside Diameter 32mm | ||
Number of Rows 1 | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Series HK2520D | ||
Limiting Speed 9500rpm | ||
Maximum Speed - Oil 9500rpm | ||
Race Type Drawn Cup | ||
Bearing Type Drawn Cup Needle Roller | ||
- COO (Country of Origin):
- JP

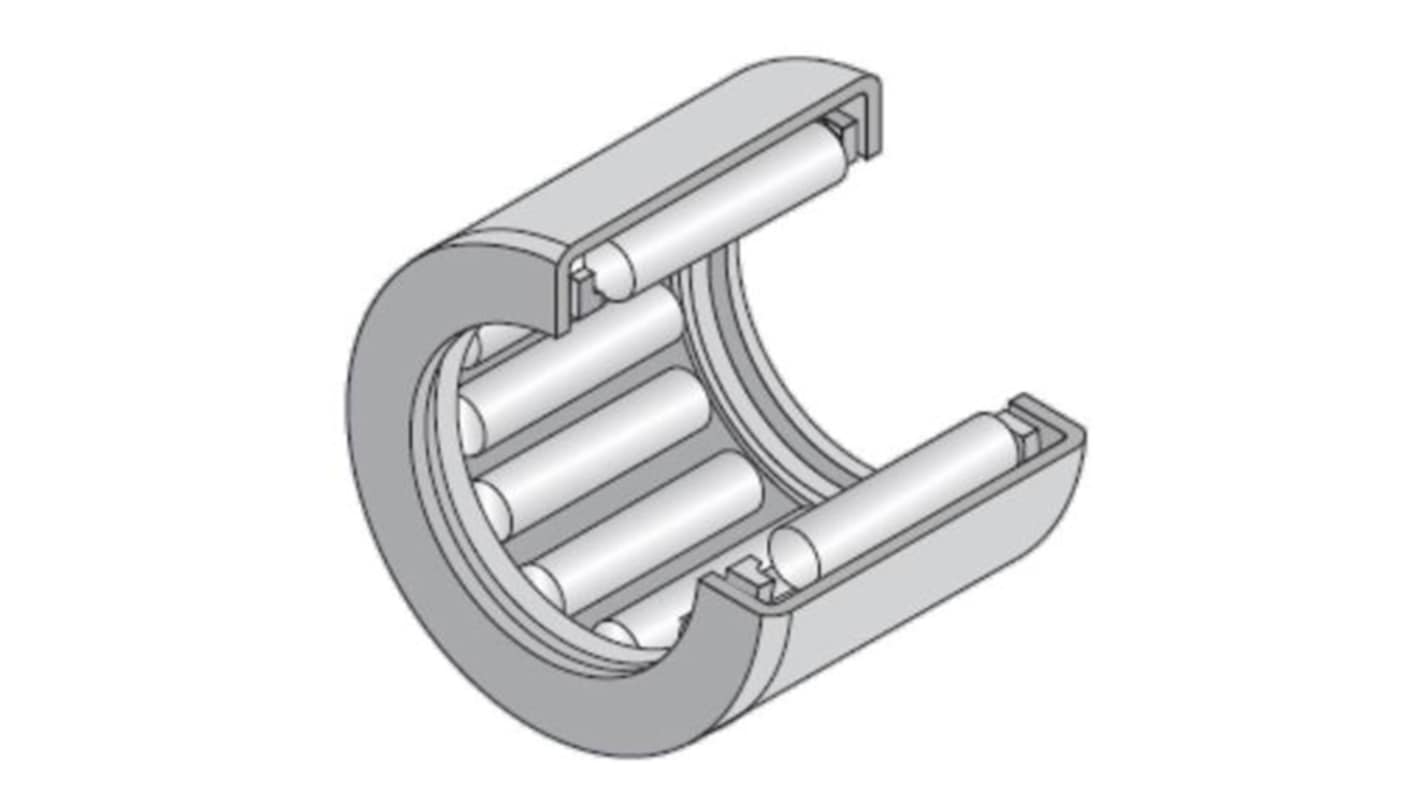

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
