NTN HK2520 25 mm ID Needle Roller Thrust Bearing Drawn Cup Needle Roller, 32 mm OD
- RS Stock No.:
- 453-694
- Mfr. Part No.:
- HK2520
- Brand:
- NTN
Subtotal (1 unit)*
£5.43
(exc. VAT)
£6.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.43 |
*price indicative
- RS Stock No.:
- 453-694
- Mfr. Part No.:
- HK2520
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 25mm | |
| Race Width | 20mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Outside Diameter | 32mm | |
| Series | HK2520 | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 6500rpm | |
| Dynamic Load Rating | 20.3kN | |
| End Type | Open | |
| Maximum Speed - Oil | 9500rpm | |
| Static Load Rating | 33kN | |
| Maximum Speed - Grease | 6500rpm | |
| Bearing Type | Drawn Cup Needle Roller | |
| Race Type | Drawn Cup | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 25mm | ||
Race Width 20mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Outside Diameter 32mm | ||
Series HK2520 | ||
Standards/Approvals RoHS | ||
Limiting Speed 6500rpm | ||
Dynamic Load Rating 20.3kN | ||
End Type Open | ||
Maximum Speed - Oil 9500rpm | ||
Static Load Rating 33kN | ||
Maximum Speed - Grease 6500rpm | ||
Bearing Type Drawn Cup Needle Roller | ||
Race Type Drawn Cup | ||
- COO (Country of Origin):
- JP

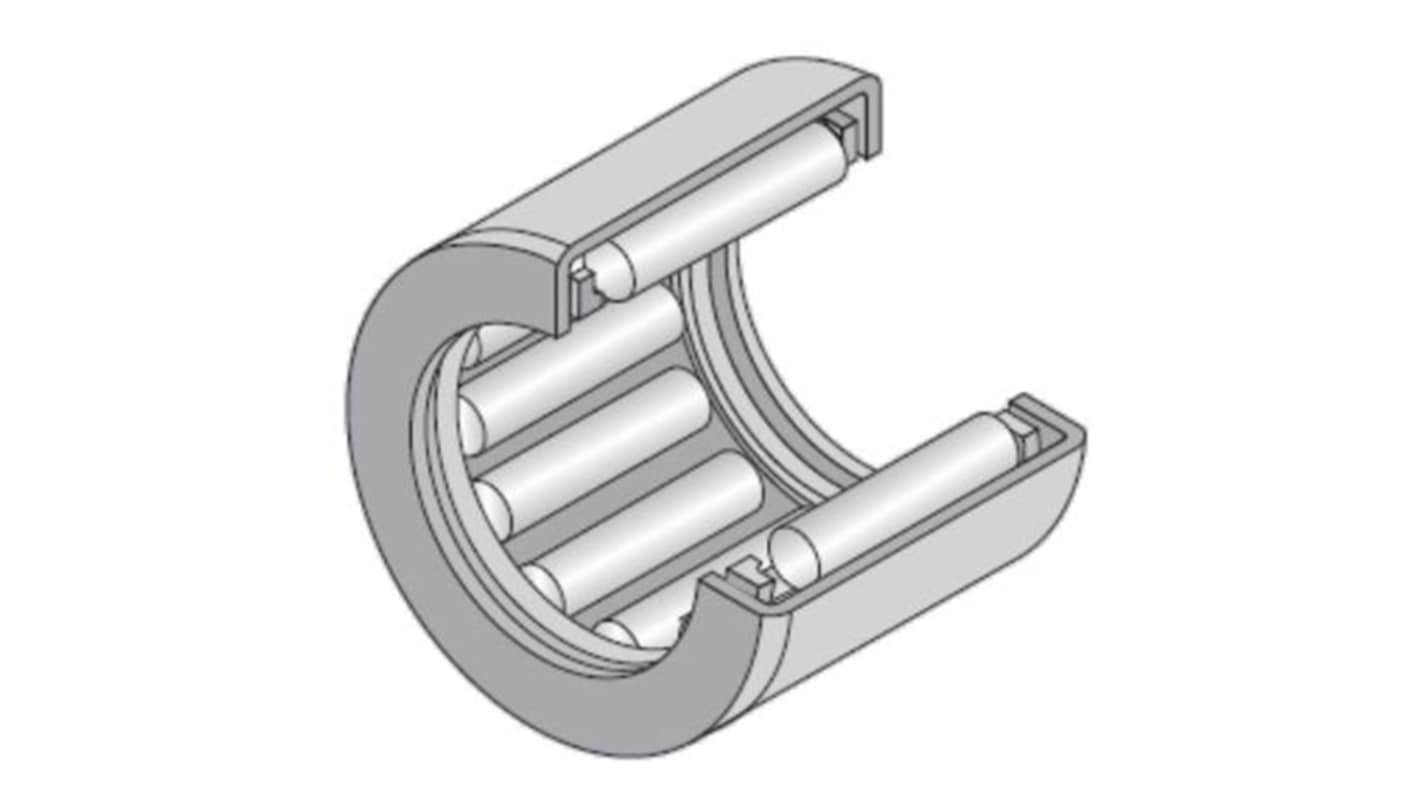

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
