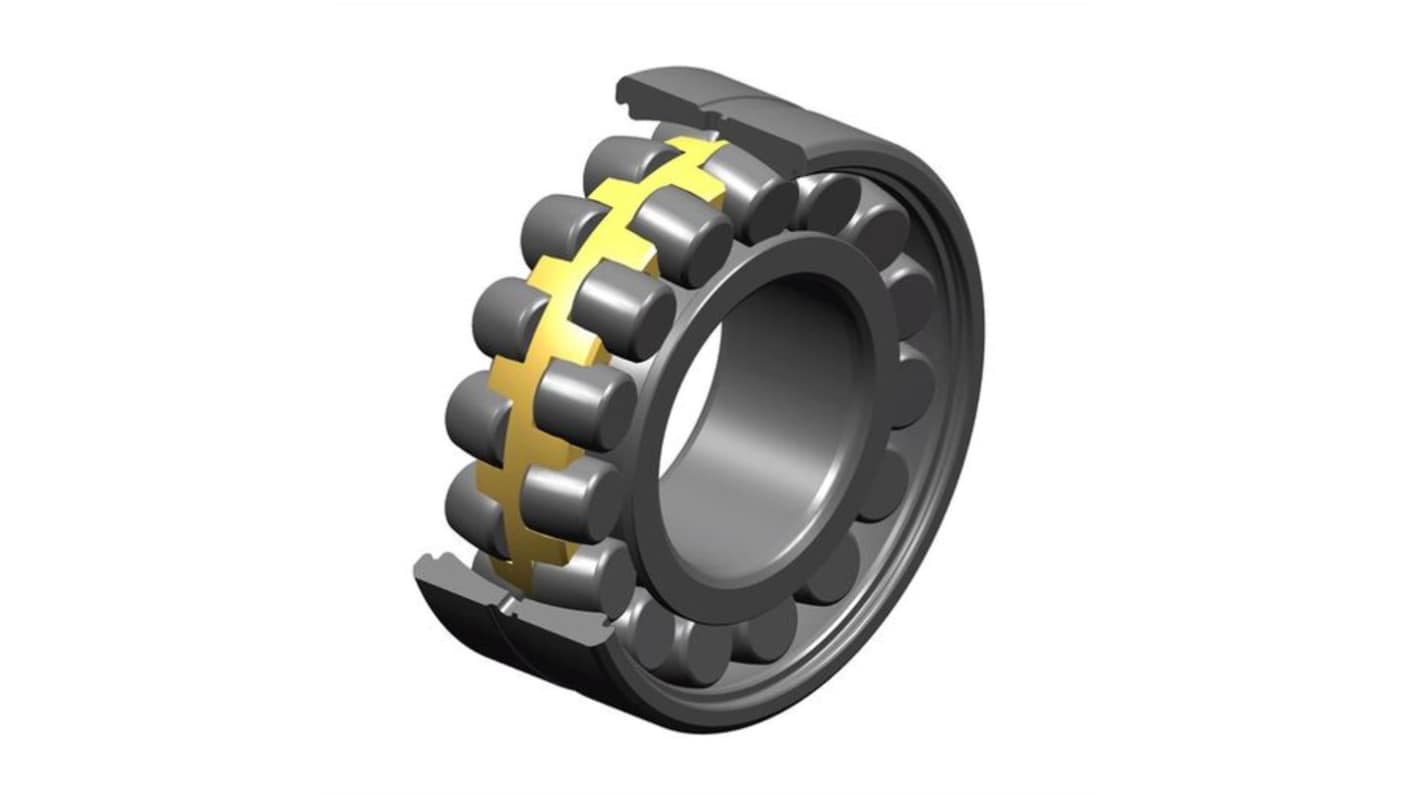

NTN 22315EMW33 Cylindrical 76 mm ID Spherical Roller Bearing, 160 mm OD
- RS Stock No.:
- 453-367
- Mfr. Part No.:
- 22315EMW33
- Brand:
- NTN
Subtotal (1 unit)*
£353.14
(exc. VAT)
£423.77
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £353.14 |
*price indicative
- RS Stock No.:
- 453-367
- Mfr. Part No.:
- 22315EMW33
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 76mm | |
| Race Width | 55mm | |
| Bore Type | Cylindrical | |
| Roller Material | Steel | |
| Series | EMW33 | |
| Outside Diameter | 160mm | |
| Dynamic Load Rating | 491kN | |
| Limiting Speed | 4200rpm | |
| Standards/Approvals | RoHS | |
| Static Load Rating | 467kN | |
| Number of Rows | 2 | |
| Internal Clearance | CN | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 76mm | ||
Race Width 55mm | ||
Bore Type Cylindrical | ||
Roller Material Steel | ||
Series EMW33 | ||
Outside Diameter 160mm | ||
Dynamic Load Rating 491kN | ||
Limiting Speed 4200rpm | ||
Standards/Approvals RoHS | ||
Static Load Rating 467kN | ||
Number of Rows 2 | ||
Internal Clearance CN | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearings are engineered to deliver exceptional performance in demanding applications. This advanced bearing solution excels in providing reliable load support and superior radial alignment, making it ideal for use in various industrial settings. Designed with precision and robustness in mind, it offers optimal functionality even under extreme conditions, thanks to its carefully formulated materials. The unique structure ensures seamless operation, reducing friction and wear, while its impressive load ratings guarantee durability and longevity. With features that enhance its capability to handle both radial and axial loads, this bearing stands out as a key component in enhancing equipment efficiency.
Optimised for both high-speed and heavy-duty applications
Manufactured to withstand extreme temperatures, ensuring operational reliability
Engineered with multiple lubrication holes for improved maintenance
Designed to accommodate misalignment, enhancing service life
Constructed with high-grade steel for superior strength and wear resistance
Features a unique radial clearance class suited to varying installation constraints
Incorporates advanced design that mitigates the risk of premature failure
