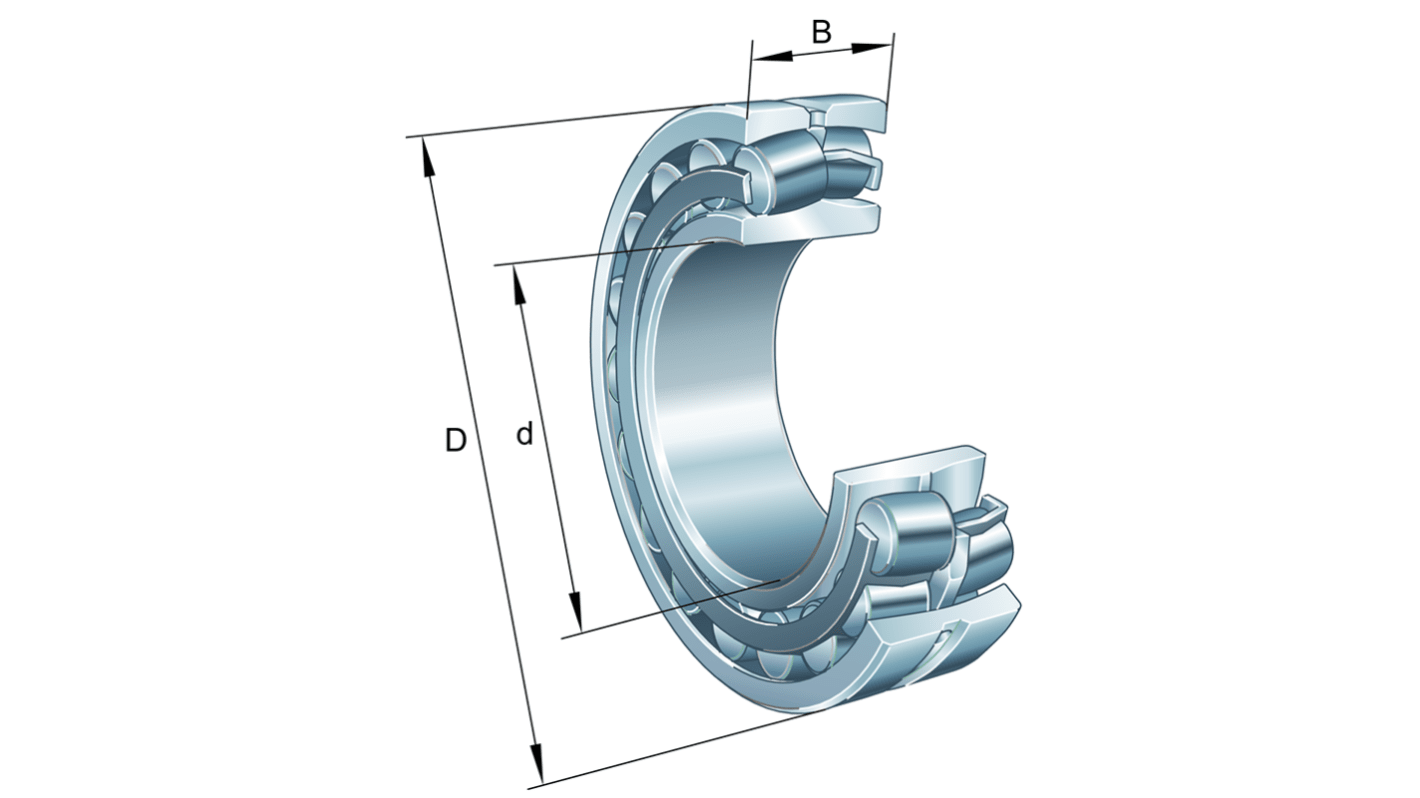

FAG 22312-E1-XL-T41A Cylindrical 60 mm ID Spherical Roller Bearing, 130 mm OD
- RS Stock No.:
- 313-326
- Mfr. Part No.:
- 22312-E1-XL-T41A
- Brand:
- FAG
Subtotal (1 unit)*
£229.63
(exc. VAT)
£275.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £229.63 |
*price indicative
- RS Stock No.:
- 313-326
- Mfr. Part No.:
- 22312-E1-XL-T41A
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 60 mm | |
| Race Width | 46mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Bearing Material | Steel | |
| Number of Rows | 2 | |
| Static Load Rating | 310000N | |
| Series | 223..-E1-XL-T41A | |
| Internal Clearance | C3 | |
| Outside Diameter | 130 mm | |
| Dynamic Load Rating | 310000N | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 5400rpm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 60 mm | ||
Race Width 46mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Bearing Material Steel | ||
Number of Rows 2 | ||
Static Load Rating 310000N | ||
Series 223..-E1-XL-T41A | ||
Internal Clearance C3 | ||
Outside Diameter 130 mm | ||
Dynamic Load Rating 310000N | ||
Standards/Approvals RoHS | ||
Limiting Speed 5400rpm | ||
- COO (Country of Origin):
- DE
The FAG Spherical Roller Bearing is specifically engineered for optimal performance in demanding applications, such as vibrating screens. Designed without a central rip, it provides superior load-bearing capabilities with enhanced internal clearance to accommodate varying operating conditions. The bore type is cylindrical, ensuring a snug fit, while the sheet metal cage effectively guides the roller elements, minimising wear and extending the lifespan of the bearing.
Integrates a robust sheet metal cage for effective roller guidance and stability
Optimised for minimal angular error tolerance supporting precise alignment
Not sealed providing flexibility for lubrication methods based on application needs
