FAG 21311-E1-XL Cylindrical 55 mm ID Roller Bearing, 120 mm OD
- RS Stock No.:
- 313-148
- Mfr. Part No.:
- 21311-E1-XL
- Brand:
- FAG
Subtotal (1 unit)*
£141.81
(exc. VAT)
£170.17
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £141.81 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 313-148
- Mfr. Part No.:
- 21311-E1-XL
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 55mm | |
| Race Width | 29mm | |
| Bore Type | Cylindrical | |
| Cage Material | Carbon Steel | |
| Static Load Rating | 155000N | |
| Internal Clearance | CN | |
| Outside Diameter | 120mm | |
| Dynamic Load Rating | 160000N | |
| Standards/Approvals | DIN 635-2, RoHS | |
| Series | 213E1 | |
| Limiting Speed | 8100rpm | |
| Number of Rows | 2 | |
| Bearing Material | Steel | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 55mm | ||
Race Width 29mm | ||
Bore Type Cylindrical | ||
Cage Material Carbon Steel | ||
Static Load Rating 155000N | ||
Internal Clearance CN | ||
Outside Diameter 120mm | ||
Dynamic Load Rating 160000N | ||
Standards/Approvals DIN 635-2, RoHS | ||
Series 213E1 | ||
Limiting Speed 8100rpm | ||
Number of Rows 2 | ||
Bearing Material Steel | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
- COO (Country of Origin):
- DE

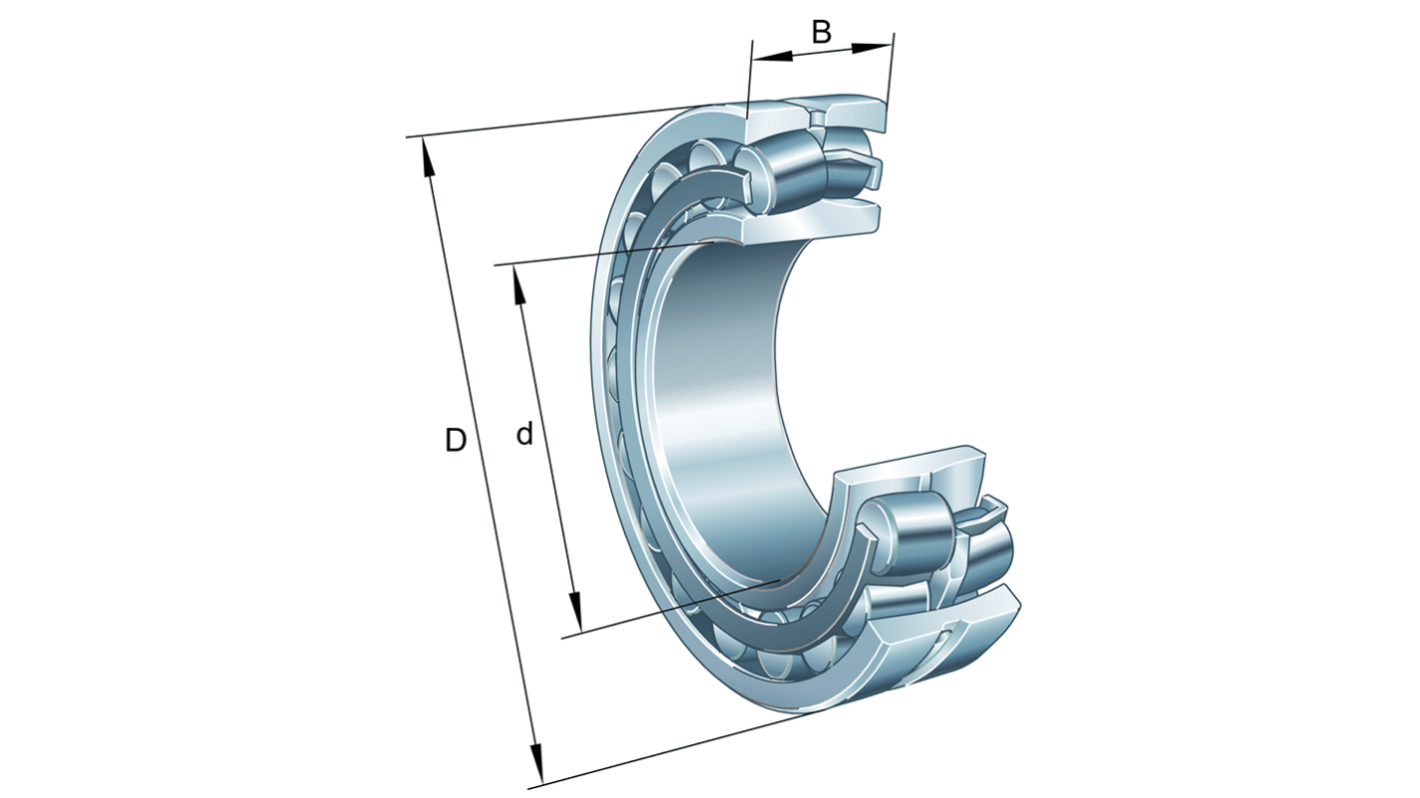

The FAG Spherical Roller Bearing is expertly engineered to accommodate both radial and axial loads, making it an optimal choice for various demanding applications. Designed with a robust structure that adheres to DIN 635-2 standards, this bearing showcases advanced features like a sheet metal cage and normal internal clearance.
Designed with a maximum operating temperature of up to 200 °C to handle challenging conditions
Features a dynamic axial load factor that significantly increases performance capability
The structure accommodates static and dynamic angular misalignments enhancing operational stability
Includes a sheet metal cage that contributes to overall durability and functionality
