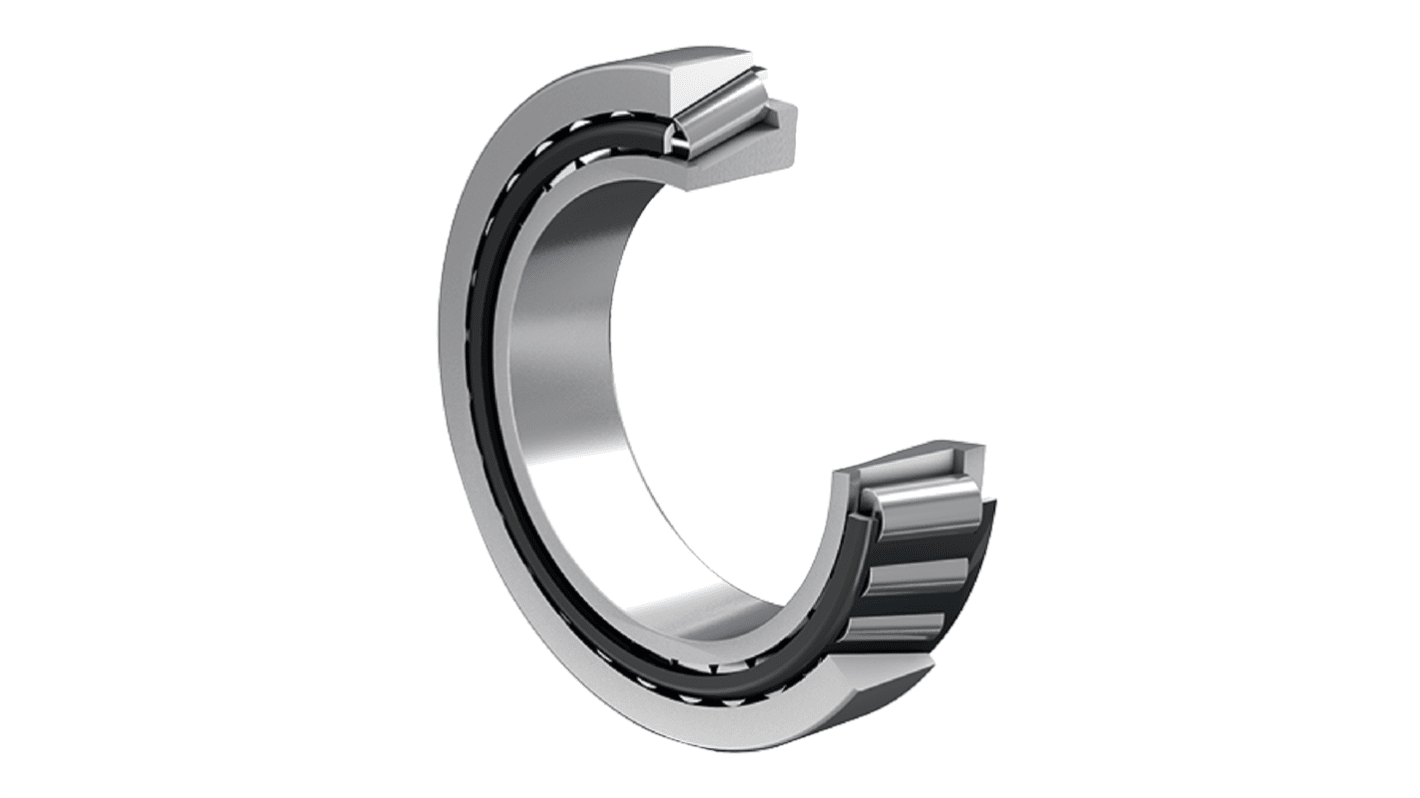

FAG 33117 Taper Roller 85 mm I.D Tapered Roller Bearing, 140 mm O.D
- RS Stock No.:
- 313-029
- Mfr. Part No.:
- 33117
- Brand:
- FAG
Subtotal (1 unit)*
£153.73
(exc. VAT)
£184.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £153.73 |
*price indicative
- RS Stock No.:
- 313-029
- Mfr. Part No.:
- 33117
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Tapered Roller Bearing | |
| Inside Diameter | 85 mm | |
| Cage Material | Standard Sheet Steel | |
| Static Load Rating | 350000N | |
| Outside Diameter | 140 mm | |
| Bearing Dynamic Load Rating | 221000 N | |
| Standards/Approvals | DIN ISO 355/DIN 720 | |
| Limiting Speed | 4750rpm | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Cone Width | 41mm | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Tapered Roller Bearing | ||
Inside Diameter 85 mm | ||
Cage Material Standard Sheet Steel | ||
Static Load Rating 350000N | ||
Outside Diameter 140 mm | ||
Bearing Dynamic Load Rating 221000 N | ||
Standards/Approvals DIN ISO 355/DIN 720 | ||
Limiting Speed 4750rpm | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
Cone Width 41mm | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- AT
The FAG Tapered Roller Bearing is engineered to provide exceptional performance for a variety of applications. Designed with precision to meet industry standards, it features an adjustable design that allows for optimal load handling and longevity. The robust construction employs high-quality materials for increased strength and durability, while the separable design facilitates easy installation and maintenance.
Single row design for compact and efficient performance
Compliant with ISO standards guaranteeing compatibility and quality
