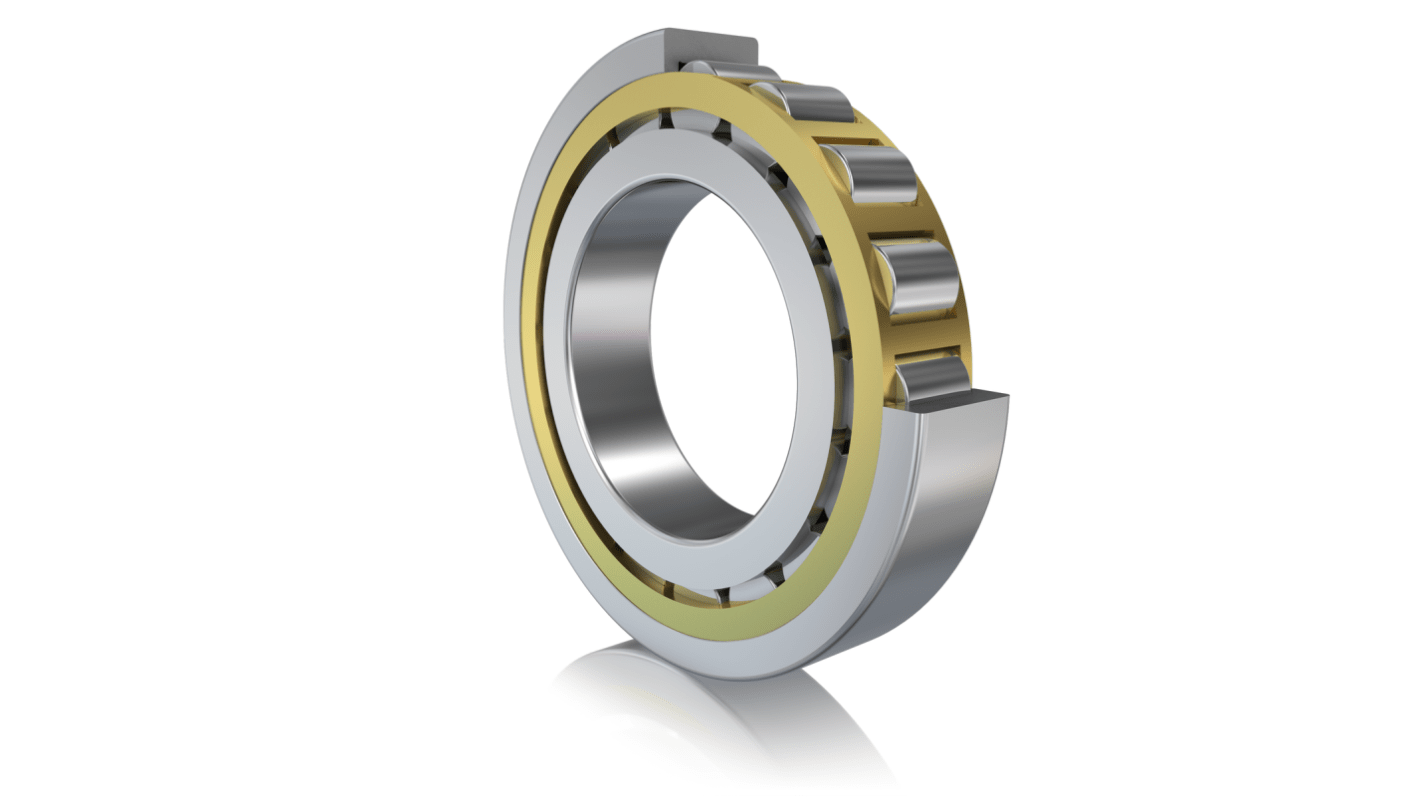

FAG NJ324-E-XL-M1-C3 120 mm ID Cylindrical Roller Bearing, 260 mm OD
- RS Stock No.:
- 312-992
- Mfr. Part No.:
- NJ324-E-XL-M1-C3
- Brand:
- FAG
Subtotal (1 unit)*
£1,550.51
(exc. VAT)
£1,860.61
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,550.51 |
*price indicative
- RS Stock No.:
- 312-992
- Mfr. Part No.:
- NJ324-E-XL-M1-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 120mm | |
| Race Width | 55mm | |
| Cage Material | Two Piece Brass Cage Roller Guided | |
| Static Load Rating | 6000N | |
| Internal Clearance | CN | |
| Outside Diameter | 260mm | |
| Dynamic Load Rating | 610.000N | |
| Standards/Approvals | No | |
| Limiting Speed | 4550rpm | |
| Number of Rows | 1 | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 120mm | ||
Race Width 55mm | ||
Cage Material Two Piece Brass Cage Roller Guided | ||
Static Load Rating 6000N | ||
Internal Clearance CN | ||
Outside Diameter 260mm | ||
Dynamic Load Rating 610.000N | ||
Standards/Approvals No | ||
Limiting Speed 4550rpm | ||
Number of Rows 1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Cylindrical Roller Bearing is a single row, semi locating bearing designed to support both radial and axial loads. It features a cage to guide the rollers, ensuring smooth operation. This bearing has two ribs on the outer ring and one rib on the inner ring, which helps to distribute loads evenly and improve stability during operation.
Radial load
Axial load in one direction
Grease lubrication
Oil lubrication
Not sealed
