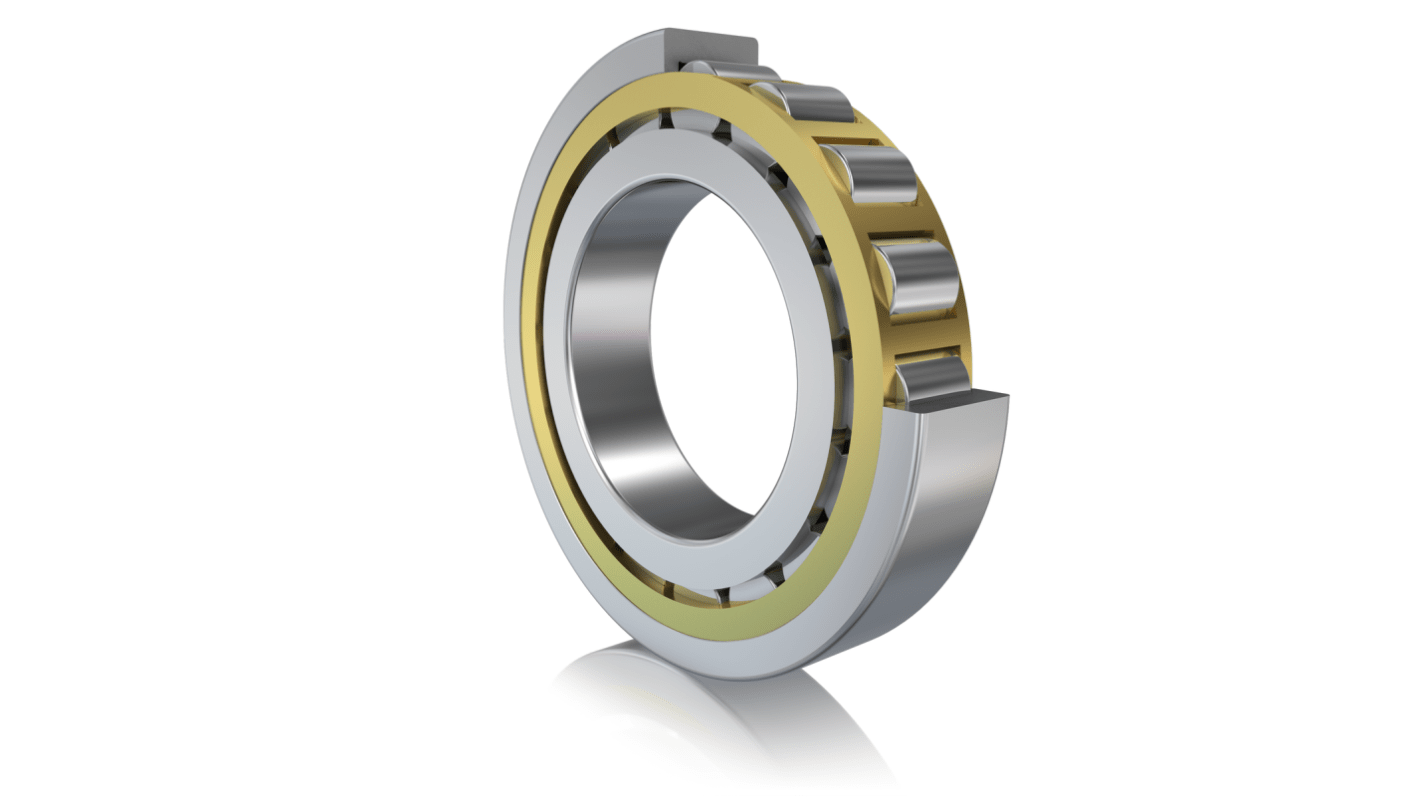

FAG NJ2320-E-XL-M1-C3 100 mm ID Cylindrical Roller Bearing, 215 mm OD
- RS Stock No.:
- 312-103
- Mfr. Part No.:
- NJ2320-E-XL-M1-C3
- Brand:
- FAG
Subtotal (1 unit)*
£1,379.95
(exc. VAT)
£1,655.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,379.95 |
*price indicative
- RS Stock No.:
- 312-103
- Mfr. Part No.:
- NJ2320-E-XL-M1-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 100 mm | |
| Race Width | 73mm | |
| Internal Clearance | CN | |
| Static Load Rating | 720.000N | |
| Outside Diameter | 215 mm | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 680N | |
| Limiting Speed | 5600rpm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 100 mm | ||
Race Width 73mm | ||
Internal Clearance CN | ||
Static Load Rating 720.000N | ||
Outside Diameter 215 mm | ||
Number of Rows 1 | ||
Dynamic Load Rating 680N | ||
Limiting Speed 5600rpm | ||
Standards/Approvals No | ||
RoHS Status: Exempt
The FAG Cylindrical Roller Bearing is a single row, semi locating bearing designed for both radial and axial load support. It features a cage to guide and retain the rollers, ensuring smooth and efficient operation. This bearing has two ribs on the outer ring and one rib on the inner ring, which helps with effective load distribution and enhances stability.
Radial load
Axial load in one direction
Grease lubrication
Oil lubrication
Not sealed
