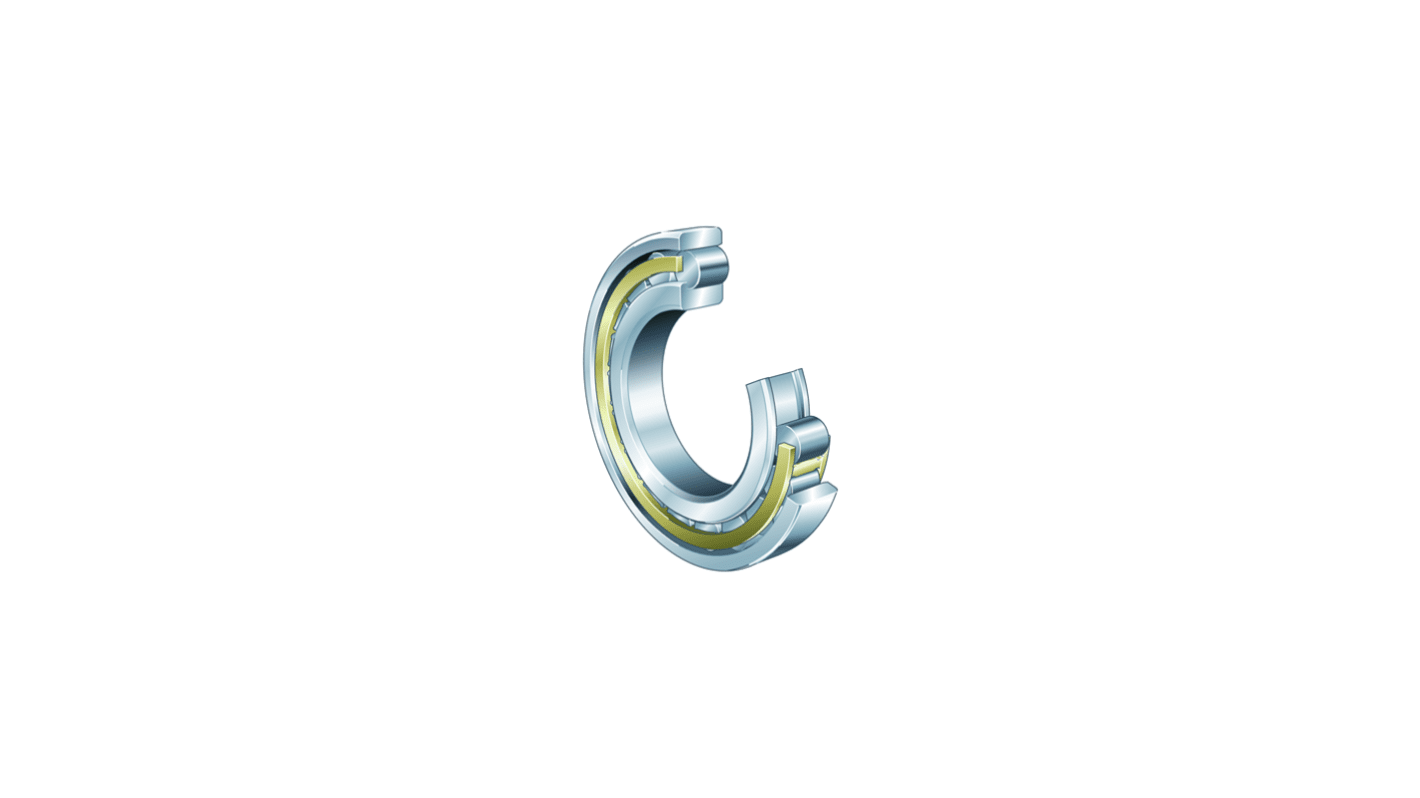

FAG N314-E-XL-M1 70 mm ID Cylindrical Roller Bearing, 150 mm OD
- RS Stock No.:
- 312-095
- Mfr. Part No.:
- N314-E-XL-M1
- Brand:
- FAG
Subtotal (1 unit)*
£492.04
(exc. VAT)
£590.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £492.04 |
*price indicative
- RS Stock No.:
- 312-095
- Mfr. Part No.:
- N314-E-XL-M1
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 70mm | |
| Race Width | 35mm | |
| Cage Material | Two Piece Brass Cage Roller Guided | |
| Number of Rows | 1 | |
| Static Load Rating | 222000N | |
| Outside Diameter | 150mm | |
| Series | N314 | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 242000N | |
| Internal Clearance | CN | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 70mm | ||
Race Width 35mm | ||
Cage Material Two Piece Brass Cage Roller Guided | ||
Number of Rows 1 | ||
Static Load Rating 222000N | ||
Outside Diameter 150mm | ||
Series N314 | ||
Standards/Approvals No | ||
Dynamic Load Rating 242000N | ||
Internal Clearance CN | ||
RoHS Status: Exempt
The FAG Cylindrical Roller Bearing is a single row, non locating bearing designed to handle radial loads. It features a cage that helps guide the rollers, ensuring smooth and efficient operation. This bearing has no ribs on the outer ring and two ribs on the inner ring, which ensures proper alignment and stability of the inner ring.
Radial load
Grease lubrication
Oil lubrication
Not sealed
