FAG NUP307-E-XL-TVP2 35 mm I.D Cylindrical Roller Bearing, 80 mm O.D
- RS Stock No.:
- 310-169
- Mfr. Part No.:
- NUP307-E-XL-TVP2
- Brand:
- FAG
Subtotal (1 pack of 25 units)*
£1,881.43
(exc. VAT)
£2,257.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £1,881.43 | £75.257 |
*price indicative
- RS Stock No.:
- 310-169
- Mfr. Part No.:
- NUP307-E-XL-TVP2
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 35 mm | |
| Race Width | 21mm | |
| Cage Material | Polyamide 66 | |
| Limiting Speed | 12600rpm | |
| Dynamic Load Rating | 76000N | |
| Internal Clearance | CN | |
| Outside Diameter | 80 mm | |
| Number of Rows | 1 | |
| Static Load Rating | 63000N | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 35 mm | ||
Race Width 21mm | ||
Cage Material Polyamide 66 | ||
Limiting Speed 12600rpm | ||
Dynamic Load Rating 76000N | ||
Internal Clearance CN | ||
Outside Diameter 80 mm | ||
Number of Rows 1 | ||
Static Load Rating 63000N | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- IN

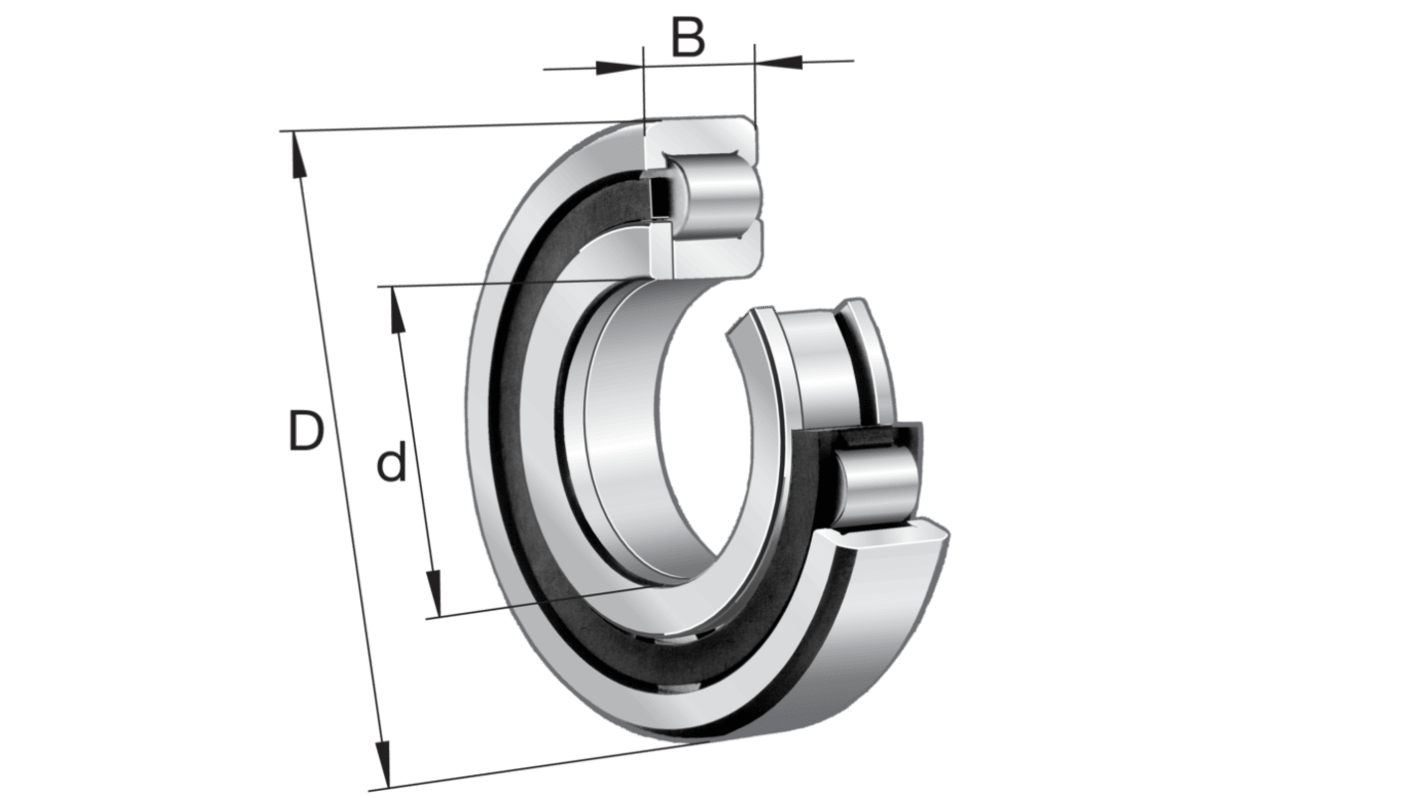

The FAG Cylindrical Roller Bearing is a single row, locating bearing designed to support both radial and axial loads. It features a cage that retains and guides the rollers for smooth operation. The bearing has two ribs on the outer ring and one rib on the inner ring, which helps with load distribution and stability. Additionally, it includes an internal rib washer, which enhances the bearing's support and stability during operation.
Radial load
Axial load in one direction
Axial load in two directions
Grease lubrication
Oil lubrication
Not sealed
