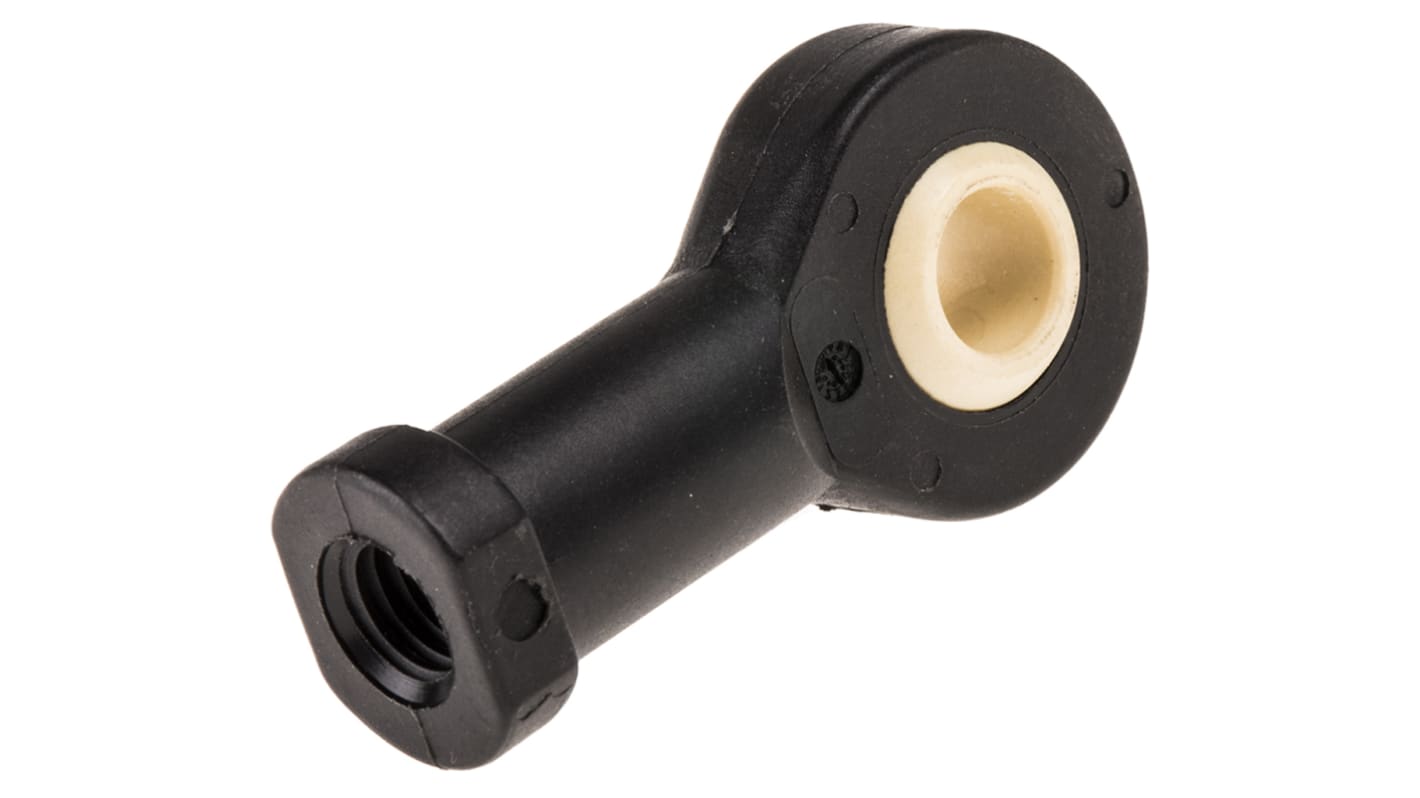

Igus M8 Female Igumid G Rod End, 8mm Bore, 48mm Long, Metric Thread Standard, Female Connection Gender
- RS Stock No.:
- 311-2982
- Mfr. Part No.:
- KBRM-08
- Brand:
- Igus
Bulk discount available
Subtotal (1 unit)*
£6.75
(exc. VAT)
£8.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 102 unit(s) ready to ship
- Plus 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.75 |
| 5 - 9 | £6.48 |
| 10 + | £6.36 |
*price indicative
- RS Stock No.:
- 311-2982
- Mfr. Part No.:
- KBRM-08
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Connection Size | M8 Female | |
| Bore Size | 8mm | |
| Material | Igumid G | |
| Static Load Rating | 1050N | |
| Overall Length | 48mm | |
| Connection Thread Standard | Metric | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -30°C | |
| Connection Gender | Female | |
Select all | ||
|---|---|---|
Brand Igus | ||
Connection Size M8 Female | ||
Bore Size 8mm | ||
Material Igumid G | ||
Static Load Rating 1050N | ||
Overall Length 48mm | ||
Connection Thread Standard Metric | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -30°C | ||
Connection Gender Female | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Female Thread
Note
IGUBAL® bearings are designed to run with a clearance between the shaft and the inside diameter of the ball, to prevent the ball turning in the housing.
Rod End & Spherical - Maintenance Free IGUS®
IGUBAL® spherical bearings are self-lubricating, designed to run dry and are maintenance free
The bearings are extremely tolerant to dirt and dust - IGUBAL® can be used in abrasive environments
8 to 20mm bore size
Low weight (20% of equivalent steel)
High rigidity
Corrosion and chemically resistant
High fatigue strength under changing loads
Working temperature range: -30°C to +80°C
The bearings are extremely tolerant to dirt and dust - IGUBAL® can be used in abrasive environments
8 to 20mm bore size
Low weight (20% of equivalent steel)
High rigidity
Corrosion and chemically resistant
High fatigue strength under changing loads
Working temperature range: -30°C to +80°C
