INA M12 Steel Rod End, 12 mm Bore Metric
- RS Stock No.:
- 260-0271
- Mfr. Part No.:
- GIKR12-PB-A
- Brand:
- INA
Subtotal (1 unit)*
£46.58
(exc. VAT)
£55.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £46.58 |
*price indicative
- RS Stock No.:
- 260-0271
- Mfr. Part No.:
- GIKR12-PB-A
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Connection Size | M12 | |
| Product Type | Rod End | |
| Bore Size | 12 mm | |
| Material | Steel | |
| Dynamic Load Rating | 13300N | |
| Thread Standard | Metric | |
| Static Load Rating | 20800N | |
| Outside Diameter | 26 mm | |
| Standards/Approvals | No | |
| Thread Direction | Right Hand | |
| Overall Width | 66mm | |
| Select all | ||
|---|---|---|
Brand INA | ||
Connection Size M12 | ||
Product Type Rod End | ||
Bore Size 12 mm | ||
Material Steel | ||
Dynamic Load Rating 13300N | ||
Thread Standard Metric | ||
Static Load Rating 20800N | ||
Outside Diameter 26 mm | ||
Standards/Approvals No | ||
Thread Direction Right Hand | ||
Overall Width 66mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

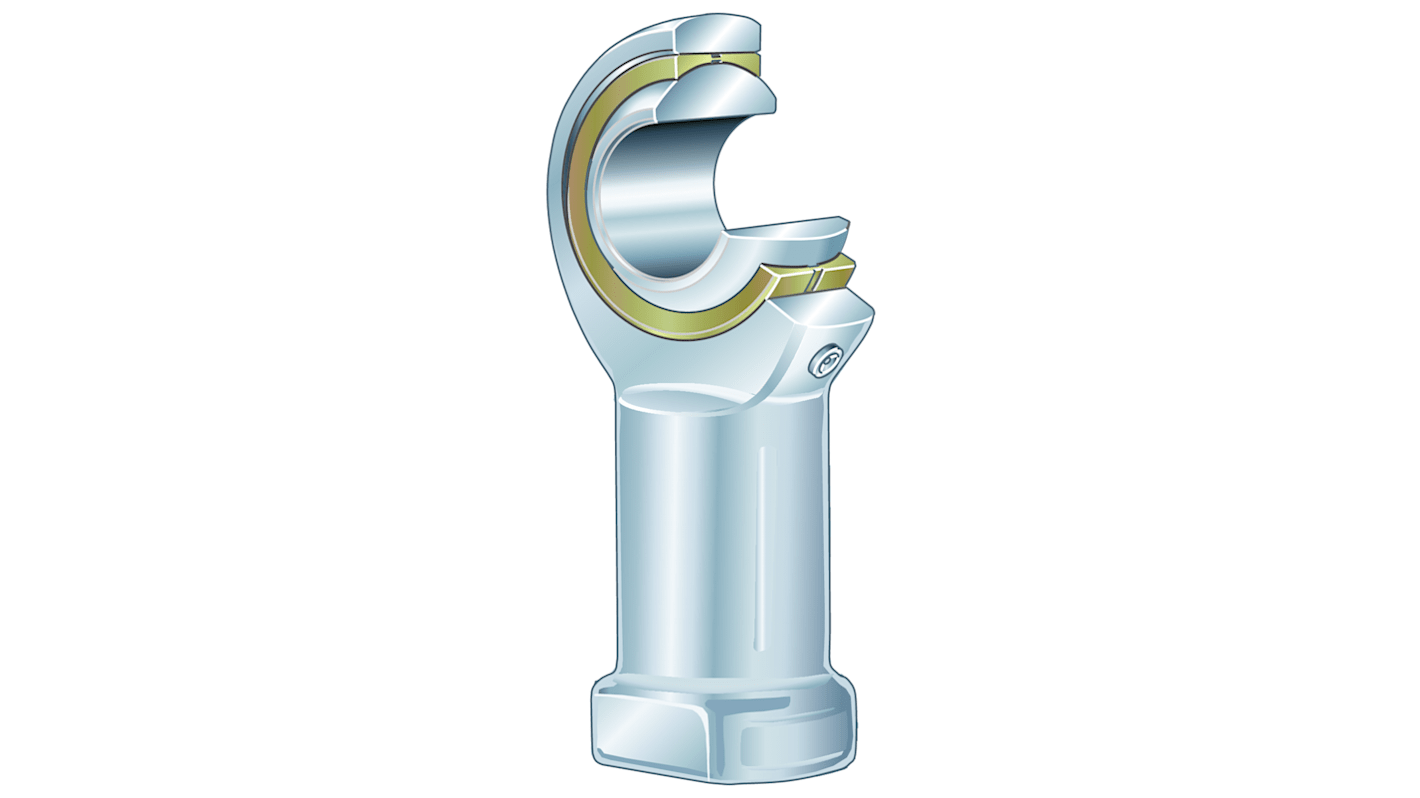

The INA rod end with internal thread right hand thread. It is requiring maintenance, DIN ISO 12240-4, dimension series K, type F, open design.
Operating temperature minimum -60 °C
Operating temperature maximum 250 °C
