Bulk discount available
Subtotal (1 unit)*
£20.81
(exc. VAT)
£24.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 17 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £20.81 |
| 5 - 9 | £20.38 |
| 10 - 24 | £19.98 |
| 25 + | £19.56 |
*price indicative
- RS Stock No.:
- 198-8945
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connection Size | M5 x 0.8 Female | |
| Product Type | Rod End | |
| Bore Size | 5 mm | |
| Material | Steel | |
| Dynamic Load Rating | 6700N | |
| Thread Standard | Metric | |
| Static Load Rating | 4100N | |
| Overall Width | 35mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Connection Size M5 x 0.8 Female | ||
Product Type Rod End | ||
Bore Size 5 mm | ||
Material Steel | ||
Dynamic Load Rating 6700N | ||
Thread Standard Metric | ||
Static Load Rating 4100N | ||
Overall Width 35mm | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP

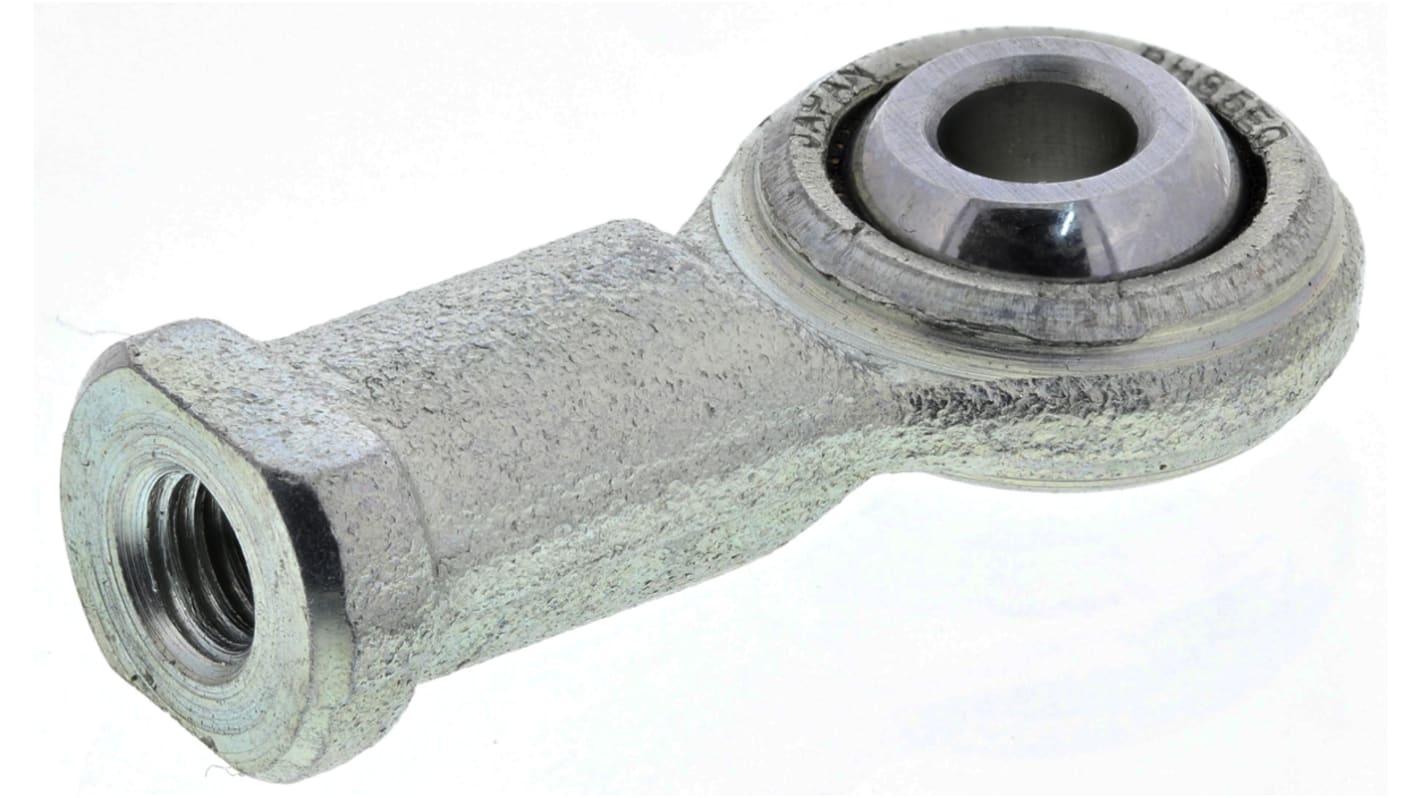

Rod End - Female
Suitable for pneumatic cylinders and coupler mechanisms in the fields of printing and packing machines, filling plants, labelling machines and mechanical controls.
Maintenance free - do not require lubrication
Rod End Steel
Corrosion resistant - galvanised zinc coating
