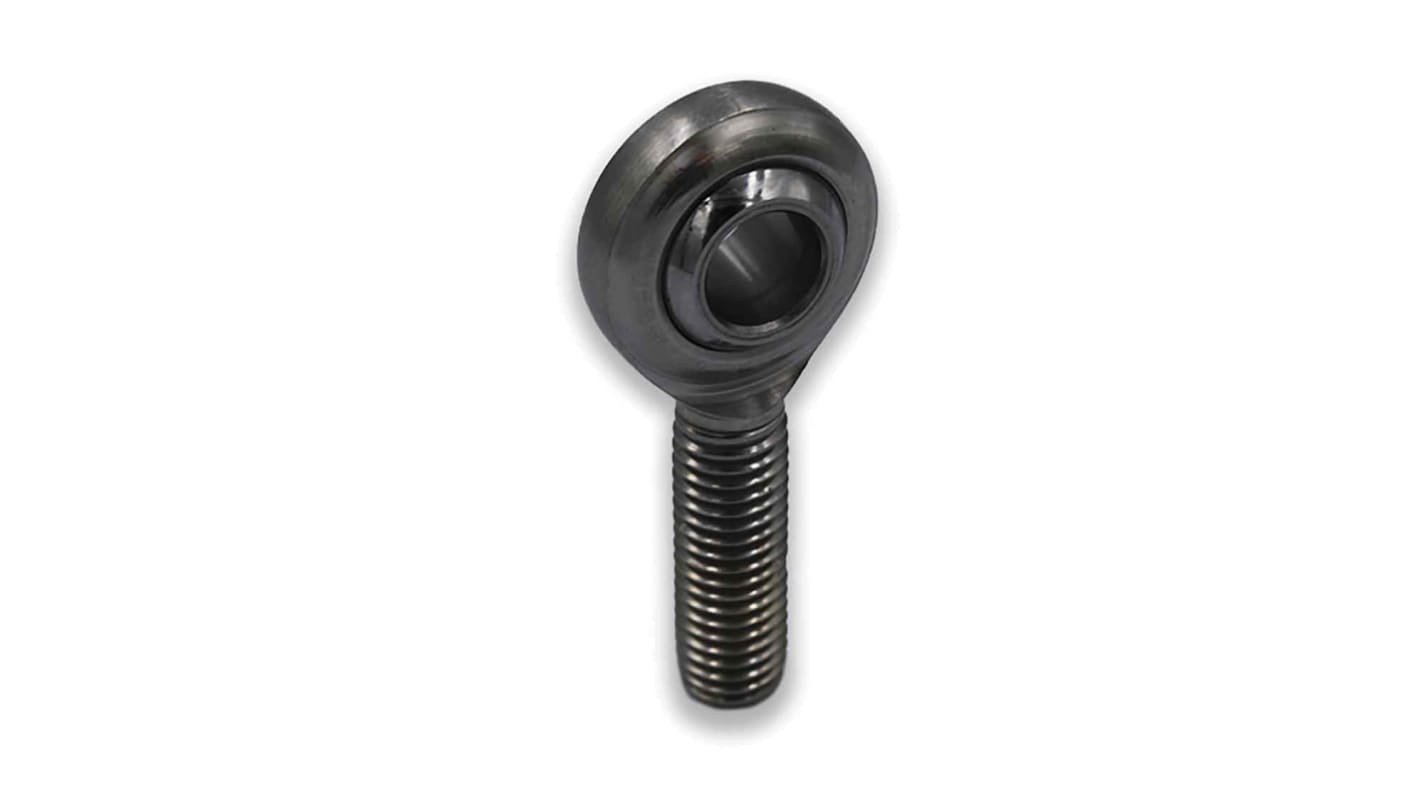

LDK M8 Male Stainless Steel Rod End Metric, 8 mm Bore
- RS Stock No.:
- 185-2546
- Mfr. Part No.:
- SPOS8ECL
- Brand:
- LDK
Subtotal (1 unit)*
£34.00
(exc. VAT)
£40.80
(inc. VAT)
Add 2 units to get free delivery
In Stock
- 2 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £34.00 |
*price indicative
- RS Stock No.:
- 185-2546
- Mfr. Part No.:
- SPOS8ECL
- Brand:
- LDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LDK | |
| Product Type | Rod End | |
| Connection Size | M8 Male | |
| Bore Size | 8 mm | |
| Material | Stainless Steel | |
| Dynamic Load Rating | 7.7kN | |
| Static Load Rating | 12.3kN | |
| Thread Standard | Metric | |
| Outside Diameter | 22 mm | |
| Standards/Approvals | No | |
| Overall Width | 53mm | |
| Thread Direction | Left Hand | |
| Select all | ||
|---|---|---|
Brand LDK | ||
Product Type Rod End | ||
Connection Size M8 Male | ||
Bore Size 8 mm | ||
Material Stainless Steel | ||
Dynamic Load Rating 7.7kN | ||
Static Load Rating 12.3kN | ||
Thread Standard Metric | ||
Outside Diameter 22 mm | ||
Standards/Approvals No | ||
Overall Width 53mm | ||
Thread Direction Left Hand | ||
Non Compliant
- COO (Country of Origin):
- CN
Male Stainless Rod-End 8mm Bore M8 x 1.2Left Hand Thread
Ball: 440C Stainless Steel, heat treated, HRC56 min Precision ground, polished
Body: 304 Stainless steel
Race: PTFE composite
Sliding contact surfaces: Steel/PTFE composite
