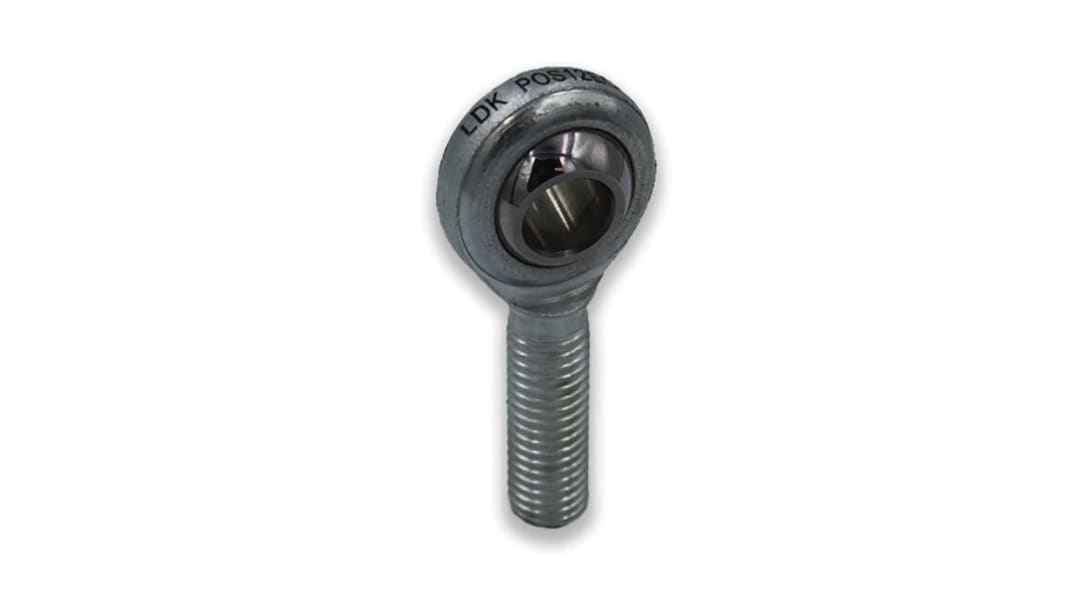

LDK M14 Male Carbon Steel Rod End Metric, 14 mm Bore
- RS Stock No.:
- 185-2498
- Mfr. Part No.:
- POS 14ECL
- Brand:
- LDK
Subtotal (1 unit)*
£18.03
(exc. VAT)
£21.64
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.03 |
*price indicative
- RS Stock No.:
- 185-2498
- Mfr. Part No.:
- POS 14ECL
- Brand:
- LDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LDK | |
| Connection Size | M14 Male | |
| Product Type | Rod End | |
| Bore Size | 14 mm | |
| Material | Carbon Steel | |
| Dynamic Load Rating | 17.2kN | |
| Thread Standard | Metric | |
| Static Load Rating | 28.2kN | |
| Outside Diameter | 34 mm | |
| Overall Width | 77mm | |
| Standards/Approvals | No | |
| Thread Direction | Left Hand | |
| Select all | ||
|---|---|---|
Brand LDK | ||
Connection Size M14 Male | ||
Product Type Rod End | ||
Bore Size 14 mm | ||
Material Carbon Steel | ||
Dynamic Load Rating 17.2kN | ||
Thread Standard Metric | ||
Static Load Rating 28.2kN | ||
Outside Diameter 34 mm | ||
Overall Width 77mm | ||
Standards/Approvals No | ||
Thread Direction Left Hand | ||
Non Compliant
- COO (Country of Origin):
- CN
Male Rod-End 14mm Bore M14 x 2 Left Hand Thread
Ball: AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished
Body: Carbon steel,clear Zinc plated.
Race: PTFE composite
Sliding contact surfaces: Steel/PTFE composite
