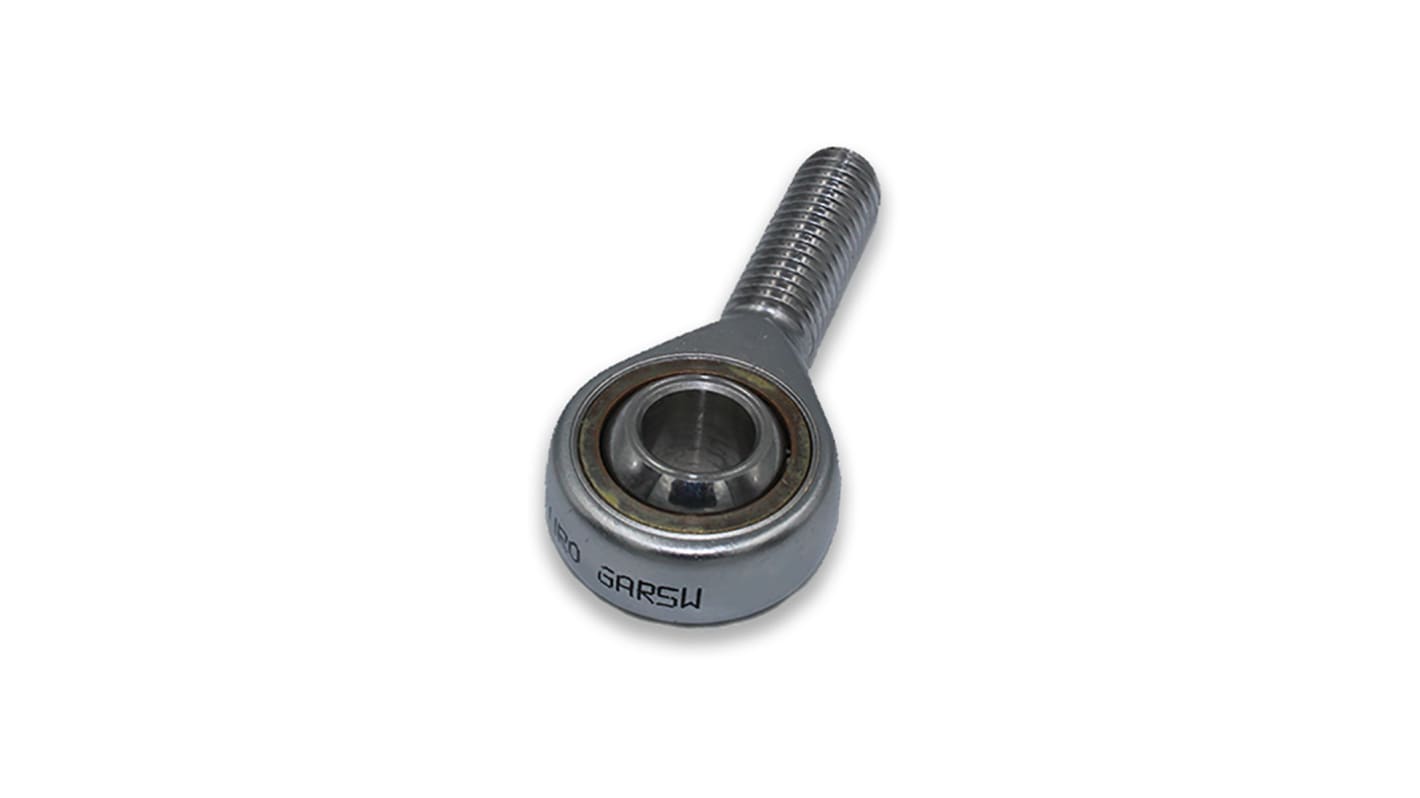

Fluro M5 x 0.8 Male Stainless Steel Rod End Metric, 5 mm Bore
- RS Stock No.:
- 185-1367
- Mfr. Part No.:
- GARSW5R
- Brand:
- Fluro
Bulk discount available
Subtotal (1 unit)*
£68.17
(exc. VAT)
£81.80
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £68.17 |
| 5 - 9 | £65.44 |
| 10 + | £64.07 |
*price indicative
- RS Stock No.:
- 185-1367
- Mfr. Part No.:
- GARSW5R
- Brand:
- Fluro
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluro | |
| Product Type | Rod End | |
| Connection Size | M5 x 0.8 Male | |
| Material | Stainless Steel | |
| Dynamic Load Rating | 7.5kN | |
| Static Load Rating | 6.2kN | |
| Thread Standard | Metric | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 250°C | |
| Thread Direction | Right Hand | |
| Standards/Approvals | No | |
| Overall Width | 42mm | |
| Select all | ||
|---|---|---|
Brand Fluro | ||
Product Type Rod End | ||
Connection Size M5 x 0.8 Male | ||
Material Stainless Steel | ||
Dynamic Load Rating 7.5kN | ||
Static Load Rating 6.2kN | ||
Thread Standard Metric | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 250°C | ||
Thread Direction Right Hand | ||
Standards/Approvals No | ||
Overall Width 42mm | ||
- COO (Country of Origin):
- DE
Rod Ends with male thread and PTFE liner. For use at high dynamic pressure and tension loads in corrosive environments.
