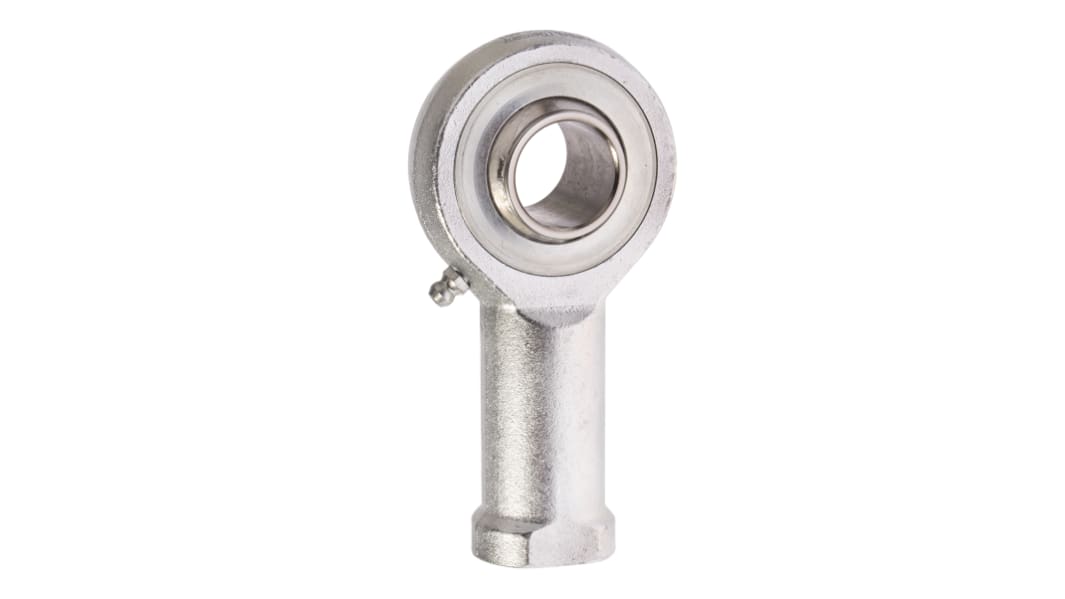

Durbal M8 x 1.25 Female Forged Steel Rod End, 8mm Bore, 48mm Long, Metric Thread Standard, Female Connection Gender
- RS Stock No.:
- 185-0120
- Mfr. Part No.:
- BRF 08-00-501
- Brand:
- Durbal
Bulk discount available
Subtotal (1 unit)*
£88.00
(exc. VAT)
£105.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £88.00 |
| 5 + | £84.48 |
*price indicative
- RS Stock No.:
- 185-0120
- Mfr. Part No.:
- BRF 08-00-501
- Brand:
- Durbal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Durbal | |
| Connection Size | M8 x 1.25 Female | |
| Bore Size | 8mm | |
| Material | Forged Steel | |
| Dynamic Load Rating | 4kN | |
| Static Load Rating | 1kN | |
| Overall Length | 48mm | |
| Connection Thread Standard | Metric | |
| Maximum Operating Temperature | +120°C | |
| Minimum Operating Temperature | -20°C | |
| Connection Gender | Female | |
Select all | ||
|---|---|---|
Brand Durbal | ||
Connection Size M8 x 1.25 Female | ||
Bore Size 8mm | ||
Material Forged Steel | ||
Dynamic Load Rating 4kN | ||
Static Load Rating 1kN | ||
Overall Length 48mm | ||
Connection Thread Standard Metric | ||
Maximum Operating Temperature +120°C | ||
Minimum Operating Temperature -20°C | ||
Connection Gender Female | ||
- COO (Country of Origin):
- DE
Premium Line Rod Ends low maintenance, lubrication possible rod ends with integral self-aligning roller or ball bearing.
Female thread greasable, low maintenance, shields adapter.
Rod end housing: forged steel, tempered, case hardened bearing race, ground and lapped, surface galvanized
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 40 μm radial
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 40 μm radial
