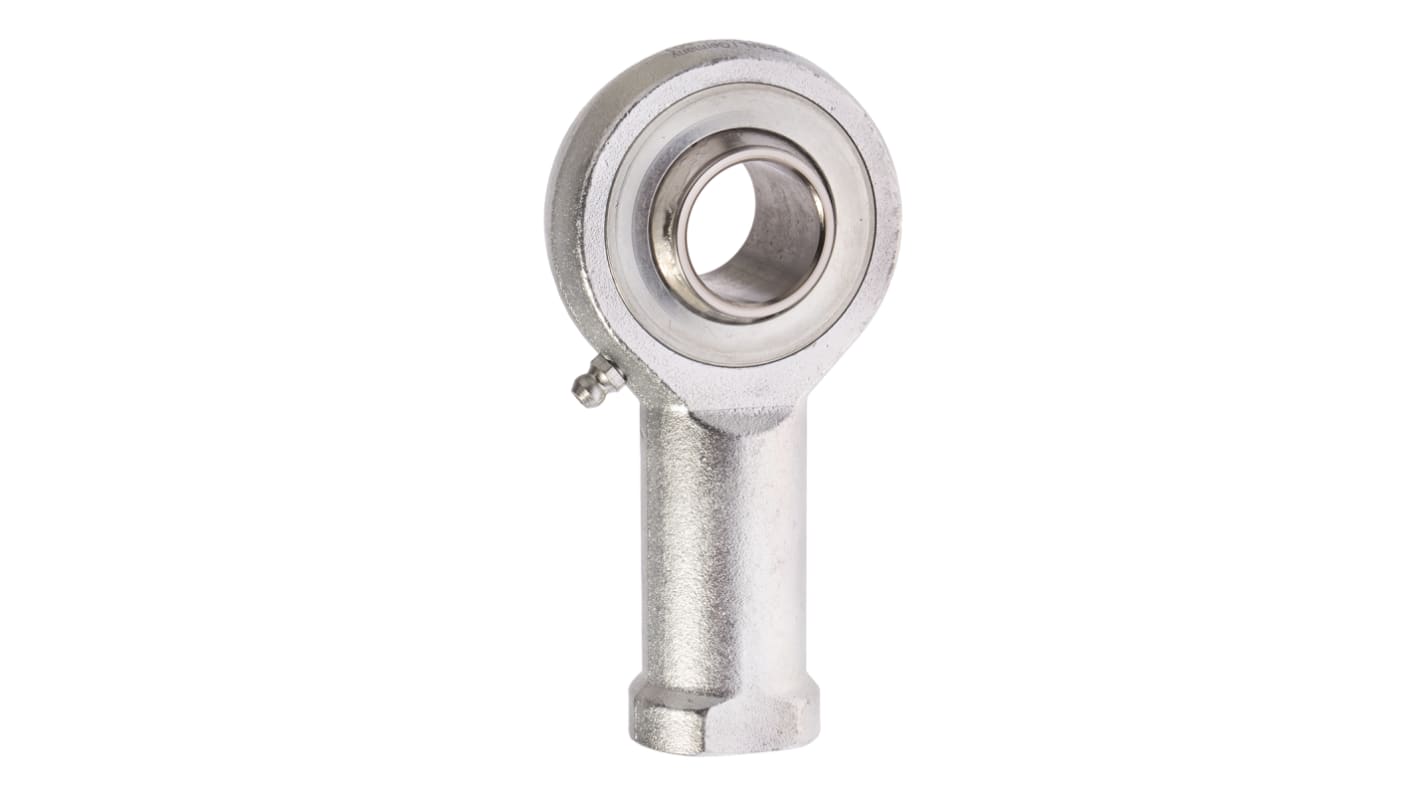

Durbal Forged Steel Rod End, 25mm Bore, 126mm Long, Metric Thread Standard, Female Connection Gender
- RS Stock No.:
- 185-0089
- Mfr. Part No.:
- BRTF 25-00-501
- Brand:
- Durbal
Available to back order for despatch 21/05/2024
Added
Price Each
£363.05
(exc. VAT)
£435.66
(inc. VAT)
Units | Per unit |
1 - 4 | £363.05 |
5 + | £348.53 |
- RS Stock No.:
- 185-0089
- Mfr. Part No.:
- BRTF 25-00-501
- Brand:
- Durbal
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Premium Line Rod Ends low maintenance, lubrication possible rod ends with integral self-aligning roller or ball bearing.
Female thread greasable, low maintenance, shields adapter.
Rod end housing: forged steel, tempered, case hardened, bearing race, ground and lapped, rolled thread, surface galvanized
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 30 μm radial
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 30 μm radial
Specifications
Attribute | Value |
---|---|
Bore Size | 25mm |
Material | Forged Steel |
Dynamic Load Rating | 24.9kN |
Static Load Rating | 18.5kN |
Overall Length | 126mm |
Connection Thread Standard | Metric |
Maximum Operating Temperature | +120°C |
Minimum Operating Temperature | -20°C |
Connection Gender | Female |
