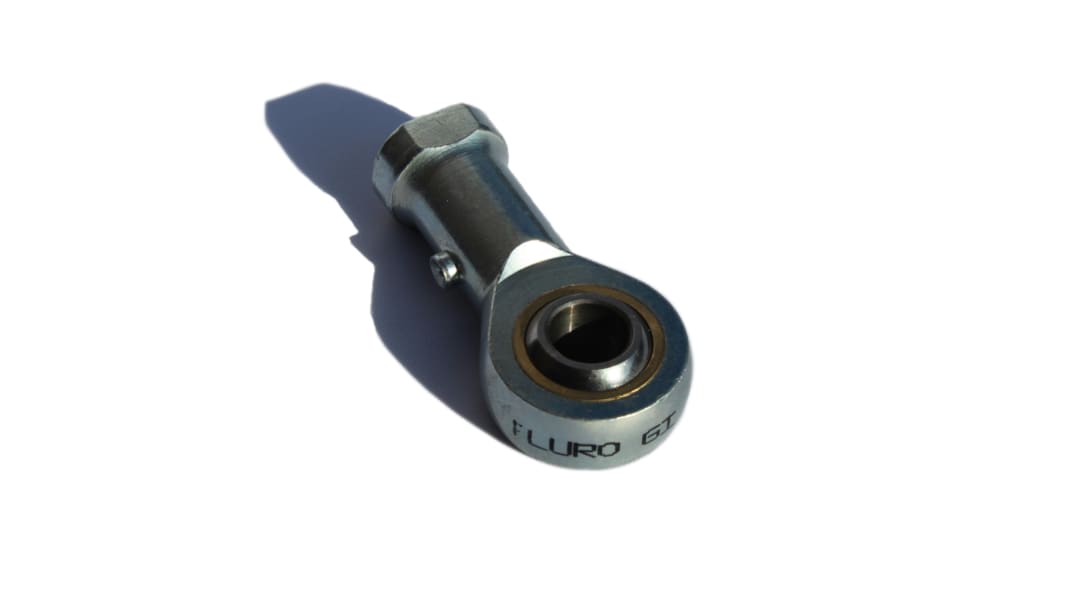

Fluro M12 x 1.25 Female Galvanised Steel Rod End, 12 mm Bore Metric
- RS Stock No.:
- 184-4518
- Mfr. Part No.:
- GI12x1.25
- Brand:
- Fluro
Bulk discount available
Subtotal (1 unit)*
£29.76
(exc. VAT)
£35.71
(inc. VAT)
Add 2 units to get free delivery
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £29.76 |
| 5 - 9 | £28.57 |
| 10 + | £27.97 |
*price indicative
- RS Stock No.:
- 184-4518
- Mfr. Part No.:
- GI12x1.25
- Brand:
- Fluro
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluro | |
| Connection Size | M12 x 1.25 Female | |
| Product Type | Rod End | |
| Bore Size | 12 mm | |
| Material | Galvanised Steel | |
| Dynamic Load Rating | 10kN | |
| Static Load Rating | 27kN | |
| Thread Standard | Metric | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 200°C | |
| Overall Width | 66mm | |
| Thread Direction | Right Hand | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Fluro | ||
Connection Size M12 x 1.25 Female | ||
Product Type Rod End | ||
Bore Size 12 mm | ||
Material Galvanised Steel | ||
Dynamic Load Rating 10kN | ||
Static Load Rating 27kN | ||
Thread Standard Metric | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 200°C | ||
Overall Width 66mm | ||
Thread Direction Right Hand | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE
Rod Ends with female thread regreasable through the housing with flush type grease fitting
