Subtotal (1 unit)*
£159.65
(exc. VAT)
£191.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £159.65 |
*price indicative
- RS Stock No.:
- 312-051
- Mfr. Part No.:
- GAKR30-PW
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Connection Size | M30 x 2 | |
| Product Type | Rod End | |
| Bore Size | 30 mm | |
| Material | Steel | |
| Dynamic Load Rating | 114000N | |
| Thread Standard | Metric | |
| Static Load Rating | 95900N | |
| Minimum Operating Temperature | -50°C | |
| Outside Diameter | 70 mm | |
| Maximum Operating Temperature | 200°C | |
| Thread Direction | Right Hand | |
| Overall Width | 37mm | |
| Standards/Approvals | DIN ISO 12240-4, ISO 9001, ISO 14001, ISO/TS 16949 | |
| Select all | ||
|---|---|---|
Brand INA | ||
Connection Size M30 x 2 | ||
Product Type Rod End | ||
Bore Size 30 mm | ||
Material Steel | ||
Dynamic Load Rating 114000N | ||
Thread Standard Metric | ||
Static Load Rating 95900N | ||
Minimum Operating Temperature -50°C | ||
Outside Diameter 70 mm | ||
Maximum Operating Temperature 200°C | ||
Thread Direction Right Hand | ||
Overall Width 37mm | ||
Standards/Approvals DIN ISO 12240-4, ISO 9001, ISO 14001, ISO/TS 16949 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

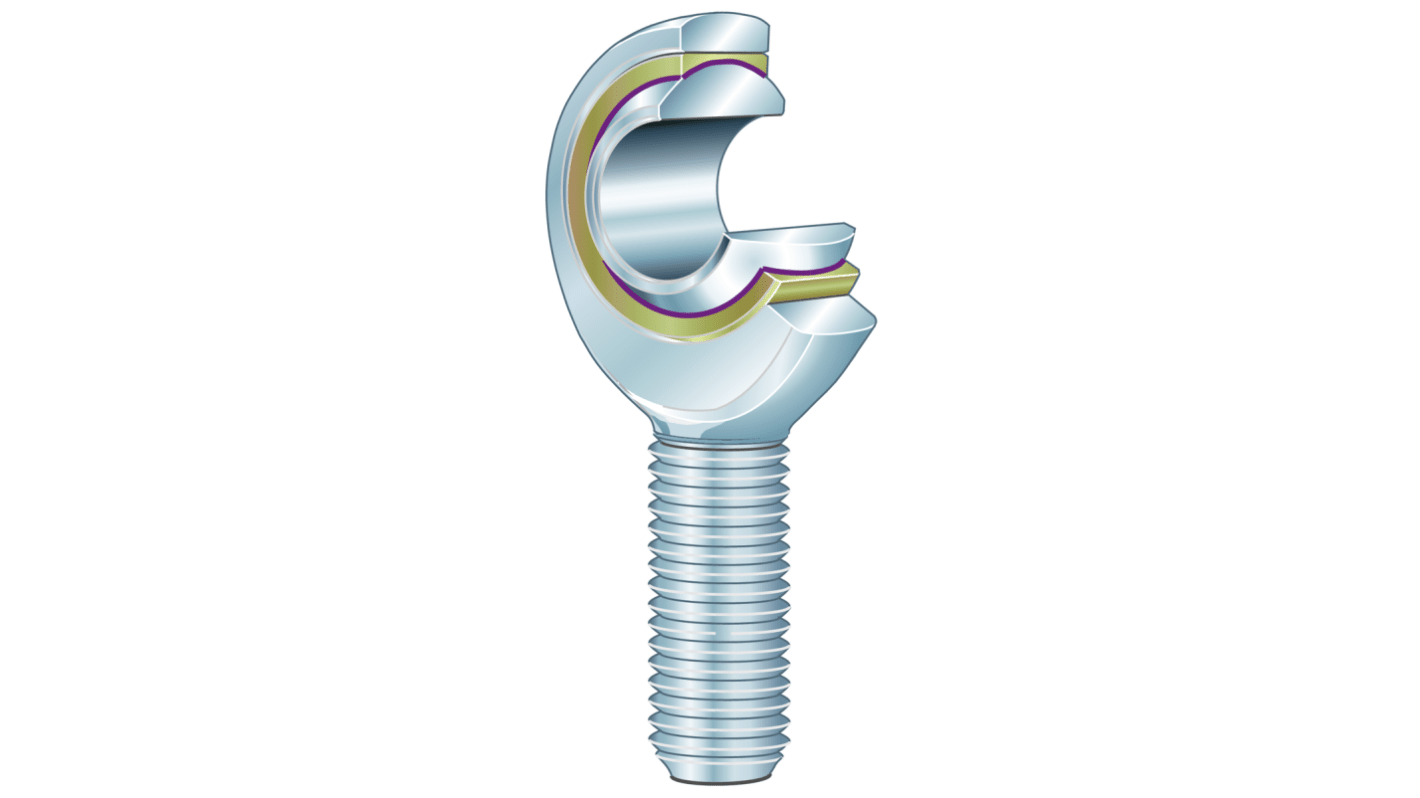

The INA Rod End with external threads operates within a temperature range of -50°C to 200°C. It features an external thread for mounting and does not include a relubrication option, as it cannot be greased.
Maintainence free
Right hand thread
Sliding foil
