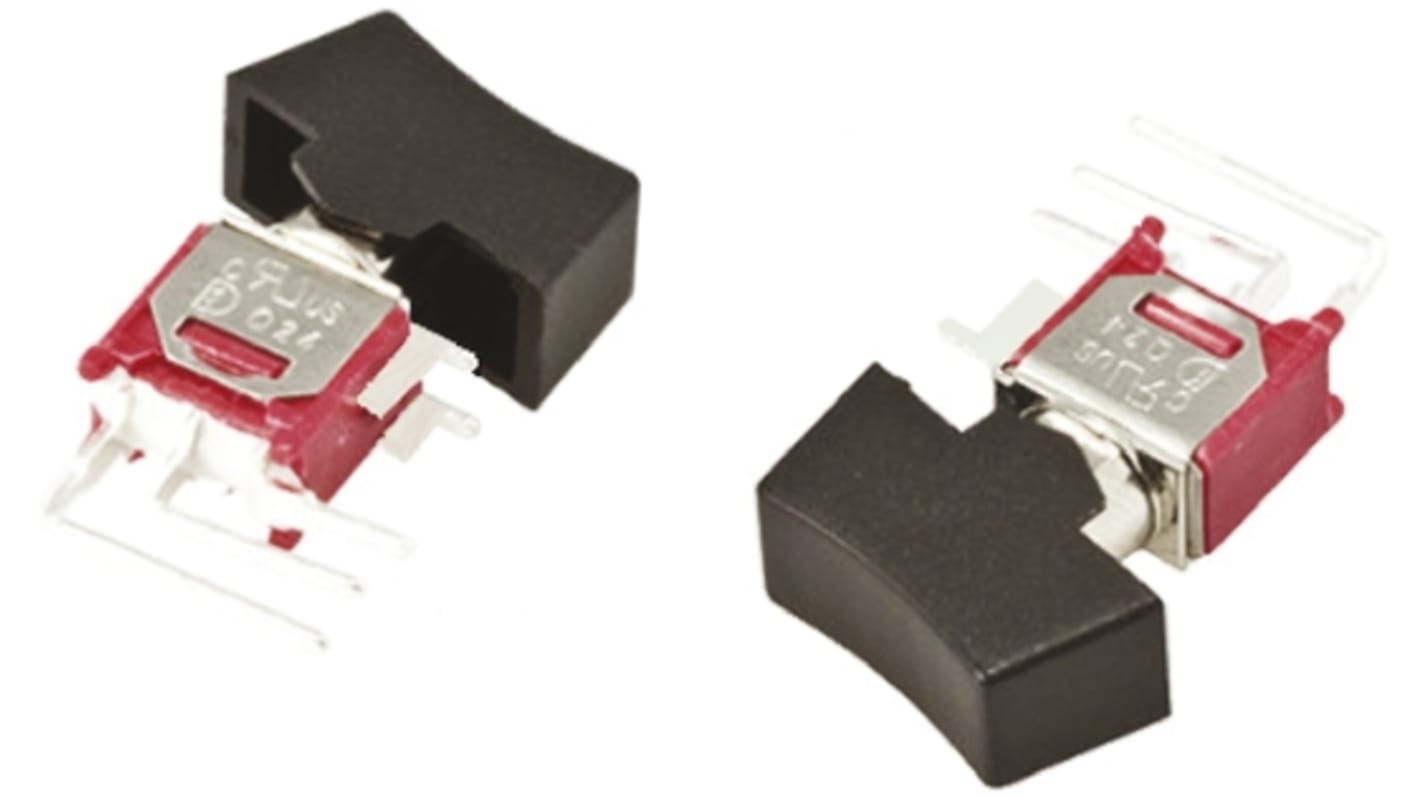

RS PRO SPDT, Latching Rocker Switch PCB

RS Stock No.:: 734-6849
Mfr. Part No.:: 3MS1J102AM7QES
Brand:: RS PRO

View all Rocker Switches

Discontinued product

RS Stock No.:: 734-6849
Mfr. Part No.:: 3MS1J102AM7QES
Brand:: RS PRO

Technical Reference

Rocker switch,SP,on-none-on,long rocker

Legislation and Compliance

Product Details

Miniature Rocker and Paddle Switches

These Miniature Rocker and Paddle Switches are available in a variety of switch configurations with SPDT and DPDT contact configurations. Silver plated Brass contacts with a mechanical life of 40000 make and break cycles are a feature of these Miniature Rocker and Paddle Switches . All these Miniature Rocker and Paddle Switches have a UL94V0 case material with Nickel plated Brass bushings and stainless steel housings.

Stock numbers 734-6851 , 734-6855 and 734-6858 have Frames
Stock number 734-6842 has a vertical support bracket
Stock number 734-6845 has a Brass Tin plated panel support
Stock number 734-6864 has a Brass Tin plated panel support but no rocker
Stock numbers 734-6851 and 734-6842 have markings on the rocker, all other rockers have no markings
Stock number 734-6849 has a vertical rocker
Stock number 734-6839 and 734-6870 have no rocker

Rocker Switches - RS

The RS range of Miniature and Sub-Miniature Rockers Switches are available in a variety of Contact and Switch configurations.

Specifications

Attribute	Value
Contact Configuration	SPDT
Switch Operation	Latching
Contact Current Rating	5 A @ 250 V ac
Actuator Colour	Black
Mounting Type	PCB
Terminal Type	Right Angle PCB
Case Material	Diallyl Phthalate
Contact Material	Silver Plated Brass
Mechanical Life	40000Operations
Maximum Operating Temperature	+85°C
Operating Temperature Range	-30 → +85°C
Minimum Operating Temperature	-30°C
Contact Resistance	10mΩ
